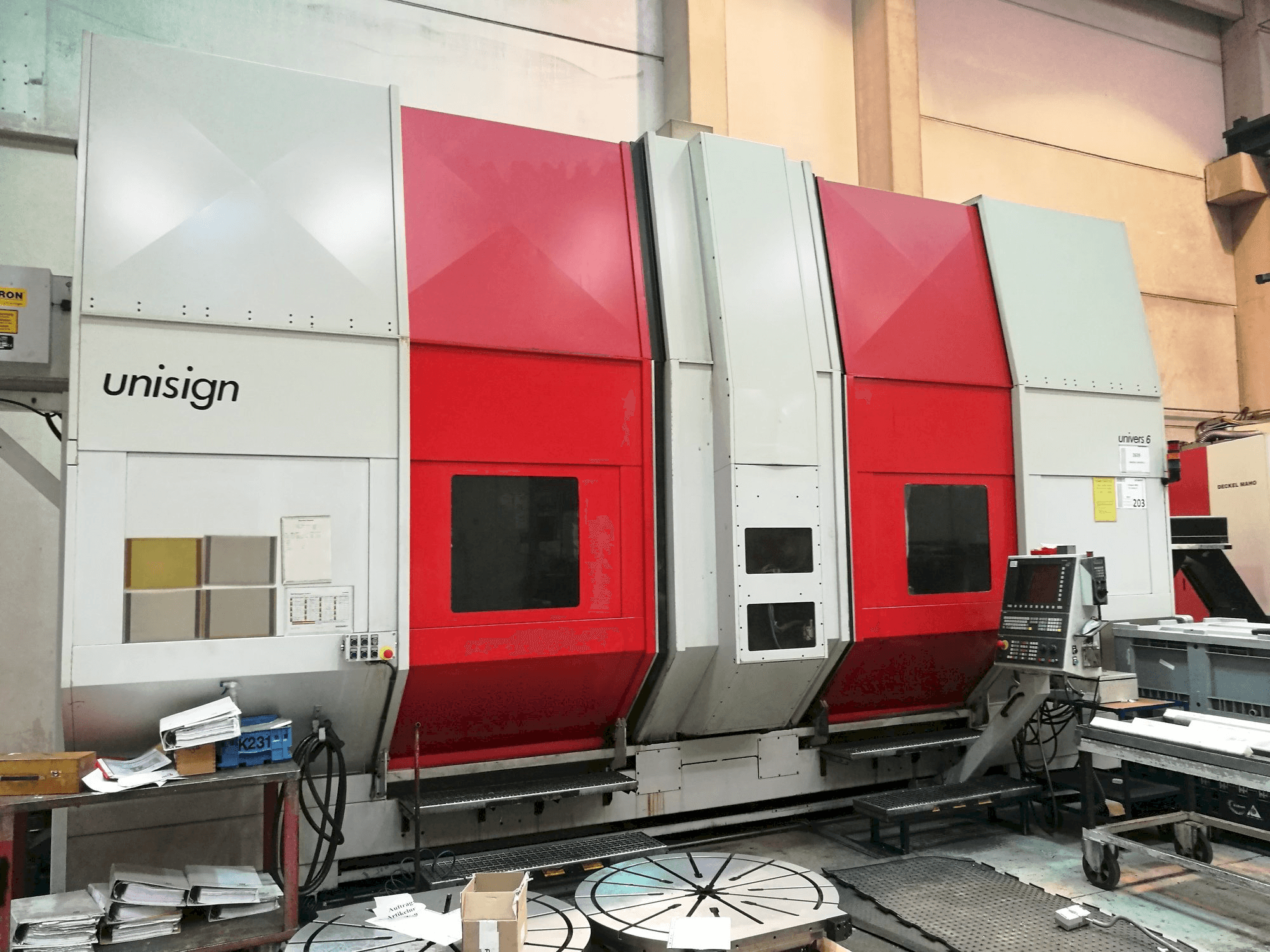

Front view of Unisign Univers 6 C2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Unisign Univers 6 C2

Photo Gallery

Unisign - Univers 6 C2AT-MIL-UNI-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Unisign Univers 6 C2 Universal Machining Center

Show in original language

This Unisign Univers 6 C2 Universal Machining Center was manufactured in 2006 in The Netherlands and has been operative for 40606 hours. This is a powerful and versatile machine able to perform for vertical turning, milling, drilling, threading, reaming and boring operation with 4 axes. It incorporates 2 machining stations which are left turning/milling and right milling. It also includes a linear measuring system in all 3 axes (x, y and z). Must be noted that the magnetic round table and turning chuck are not included.

Overview

brand: Unisign
year: 2006
MODEL: Univers 6 C2
production hours: 40606
application type: Milling
Location: Austria
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - Unisign Univers 6 C2

General Data

Measurements width: 7300 mm
Measurements depth: 3785 mm
Measurements height: 4400 mm
Machine weight: 32000 kg

Control Unit

Model: SINUMERIK 840D
CNC main language: German & English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 6000 rpm 1/MIN

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 600 mm

Workpiece

Workpiece drm: 600 mm
Workpiece weight: 1000 kg

Table

Outer length: 1200 mm
Outer width: 850 mm

Tools

Slots in storage: 34 + 16
Max weight: 15 kg
Max tool diameter: 120 mm
Max tool length: 400 mm
Type of tool holder: SK50

Media

Main electronic connection: 400 V
Power consumption: 83 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
