DMG - DECKEL MAHO DMC 60H LinearDE-MIL-DMG-2013-00001
210,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- DMG DECKEL MAHO DMC 60H Linear Horizontal Machining center
Show in original language

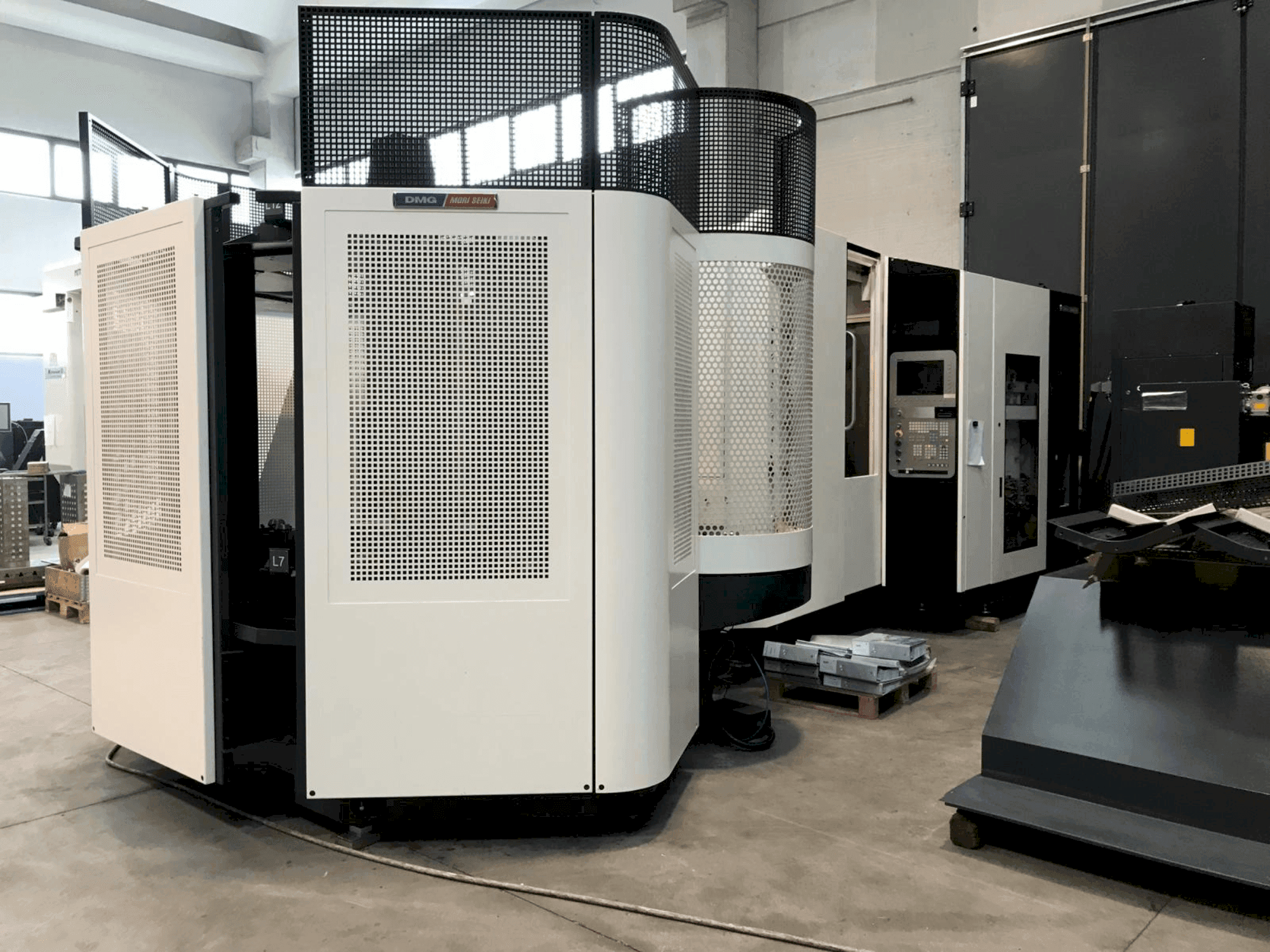

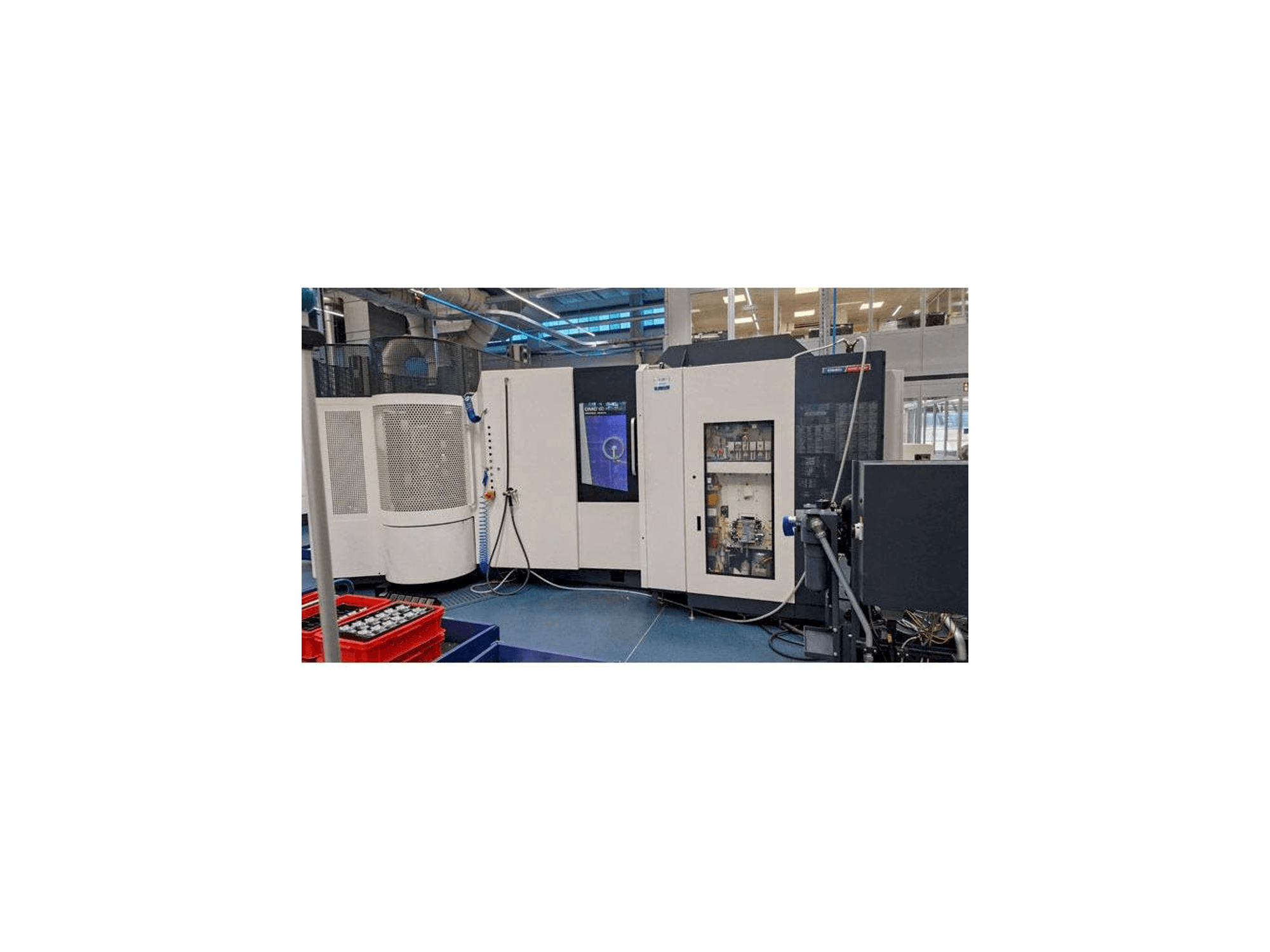

This DMG DMC 60H Linear Horizontal Machining center was manufactured in the year 2013 and has 46048 production hours. It is equipped with a Siemens 840 D control unit and has 3 axis. The machine has a spindle speed of 18000 rpm. See original delivery note as PDF (German) attached to see all technical positions.
Overview
- brand: DMG
- year: 2013
- MODEL: DECKEL MAHO DMC 60H Linear
- production hours: 46048
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG DECKEL MAHO DMC 60H Linear
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Dimensions
- Table Length: 500 mm
- Table Width: 500 mm
Movement
- Number of Axes: 4
- X-axis Travel: 630 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 850 mm
Technical Specification
- Number of Tools: 303
- Spindle Power: 20 kW
- Spindle Speed: 18000 RPM
Additional Information
Additional equipment
- Scraper belt chip conveyor with coolant system 980 liter, paper belt filter, discharge height 950 mm, width 380 mm, IKZ 80 bar / 14 l/min through spindle center (AD), pressure infinitely programmable, selectable via NC program, Roof flushing of the working area 180 l/min via flushing nozzles with a ripple valve
- Rotating viewing window / work area door
- Flushing gun with pump
- Double gripper
- Wheel magazine
- NC rotary table Ø 630 mm
- 3D path control
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
