➤ Used SCHMID SE 371 For Sale | gindumac.com

Show in original language

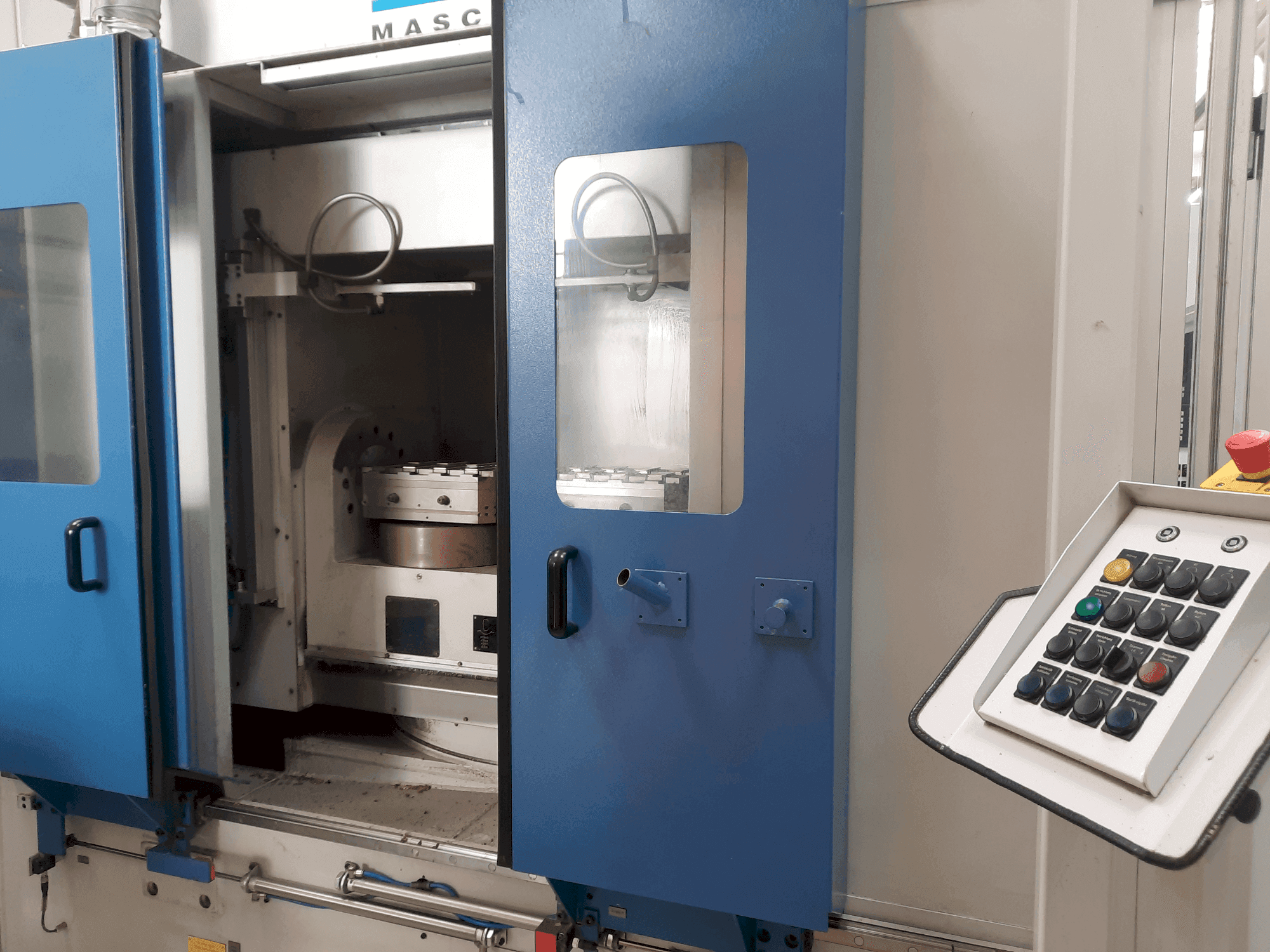

This 5-axis SCHMID SE 371 horizontal machining centre was manufactured in 2019. It features a Siemens Sinumerik 840 D SL control system, a shuttle table, and a 30-position tool changer with HSK-A63 tool holders. Additional highlights include a chip conveyor by Knoll and a recooling system by Lahntechnik. A great opportunity to buy this SCHMID SE 371 horizontal machining centre. Contact us for further details regarding this horizontal machining centre.

Overview

brand: SCHMID
year: 2019
MODEL: SE 371
production hours: 5936
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - SCHMID SE 371

General Data

Machine weight: 10000 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 840 D SL

Main drive

Spindle speed range: 50 - 10000 rpm 1/MIN
Tool taper: HSK-A63
Number of axis: 5

Movement

X-AXIS Movement: 715 mm
X-AXIS Rapid traverse: 50000 mm/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 50000 mm/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 50000 mm/min

Turret

Number of turrets: 1

Tools

Number of index: 30
Max weight: 8 kg
Max tool diameter: 80 mm/ 125 mm with free secondary positions
Max tool length: 245 mm

Media

Chip conveyor: Yes

Additional Equipment

- Shuttle table
- 2x NC rotary swivelling unit
- Chip conveyor Knoll 600K-1/II 2019
- Filter system
- Recooling system Lahntechnik KOF1803-100 2020
- Hydraulic unit
- Switch and control cabinets
- Rotary table rotation axes NC/hydr. clamping : 360 x n° degrees
- Rotary table diameter : 284 mm,

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swivelling range: -22/+95°
- - Traverse range x - y - z : 715 - 400 - 500 mm
- - Three-phase main drive : 20/26 kw at s1 100% / s6 40% ed
- - Key performance data working spindle kw / s1 / s6 : 0. 5/0. 7 10/14 20/26 20/26
- - Spindle speeds approx. 1/min : 50 1,000 1,850 10,000
- - Torque approx. Nm s1/s6 : 100/135 100/135 100/135 24/31
- - Acceleration x - y - z : 4-6-9 m/sec2
- - Tool change time : approx. 2. 5 sec.
- - Horizontal swivelling range nc/hydr. Clamping : - 22° / + 95° degrees
- - Centre distance of the rotary axes / chuck : 430 mm
Qualitative Machine Benefits:
- - Digital inverter system
- - Space requirement incl. Operation : approx. 3. 5 x 5 m2

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
