➤ Used Brother TC 32B Vertical Machining Center

Show in original language

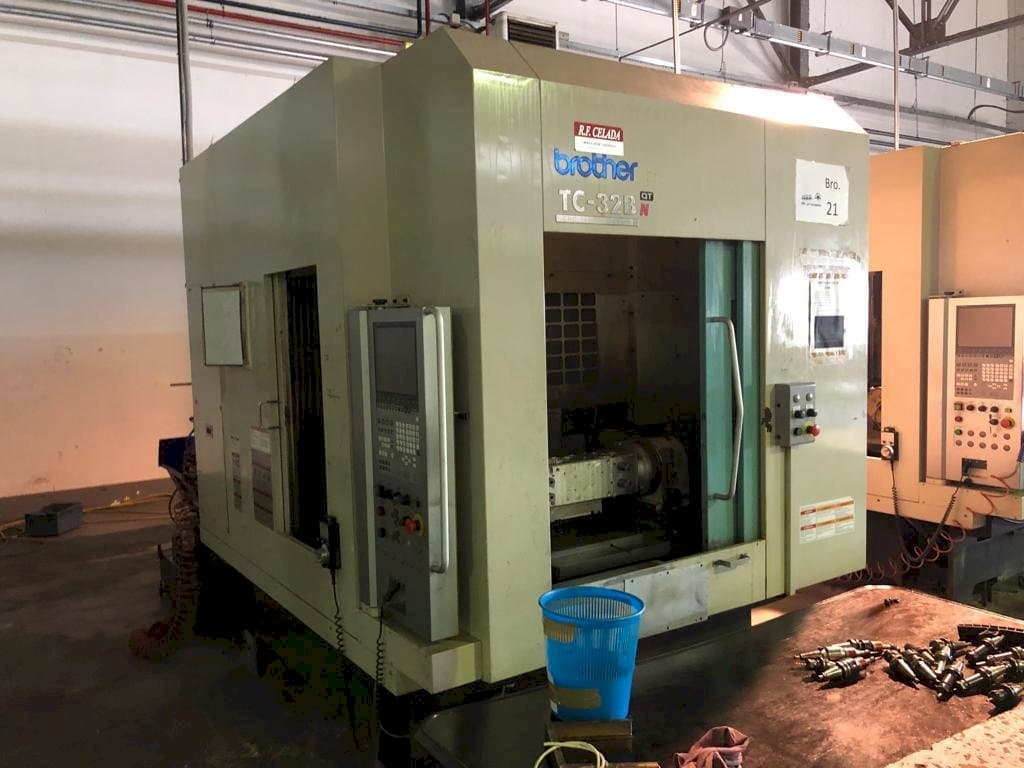

This Brother TC 32B Vertical Machining Center was built in Japan in 2007. Equipped with a Brother control unit, this machine incorporates 3 + 1 axis and a rotary table. Its BT30 spindle can operate with a speed up to 12000 rpm.

Overview

brand: Brother
year: 2007
MODEL: TC 32B
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: BROTHER

Technical Information - Brother TC 32B

General Data

Measurements width: 1900 mm
Measurements depth: 3700 mm
Measurements height: 2360 mm
Machine weight: 4600 kg

Control Unit

Brand: BROTHER

Main drive

Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 415 mm

Table

Table load: 200 kg

Additional Equipment

- chip conveyor
- remote flyer
- Kitagawa rotary plate

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 3 + 1 axis
- - Toolholders: random 26 positions
- - Fast forwards: 70-70-70 m/min
- - Pallets: 2 / 600 x 425

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
