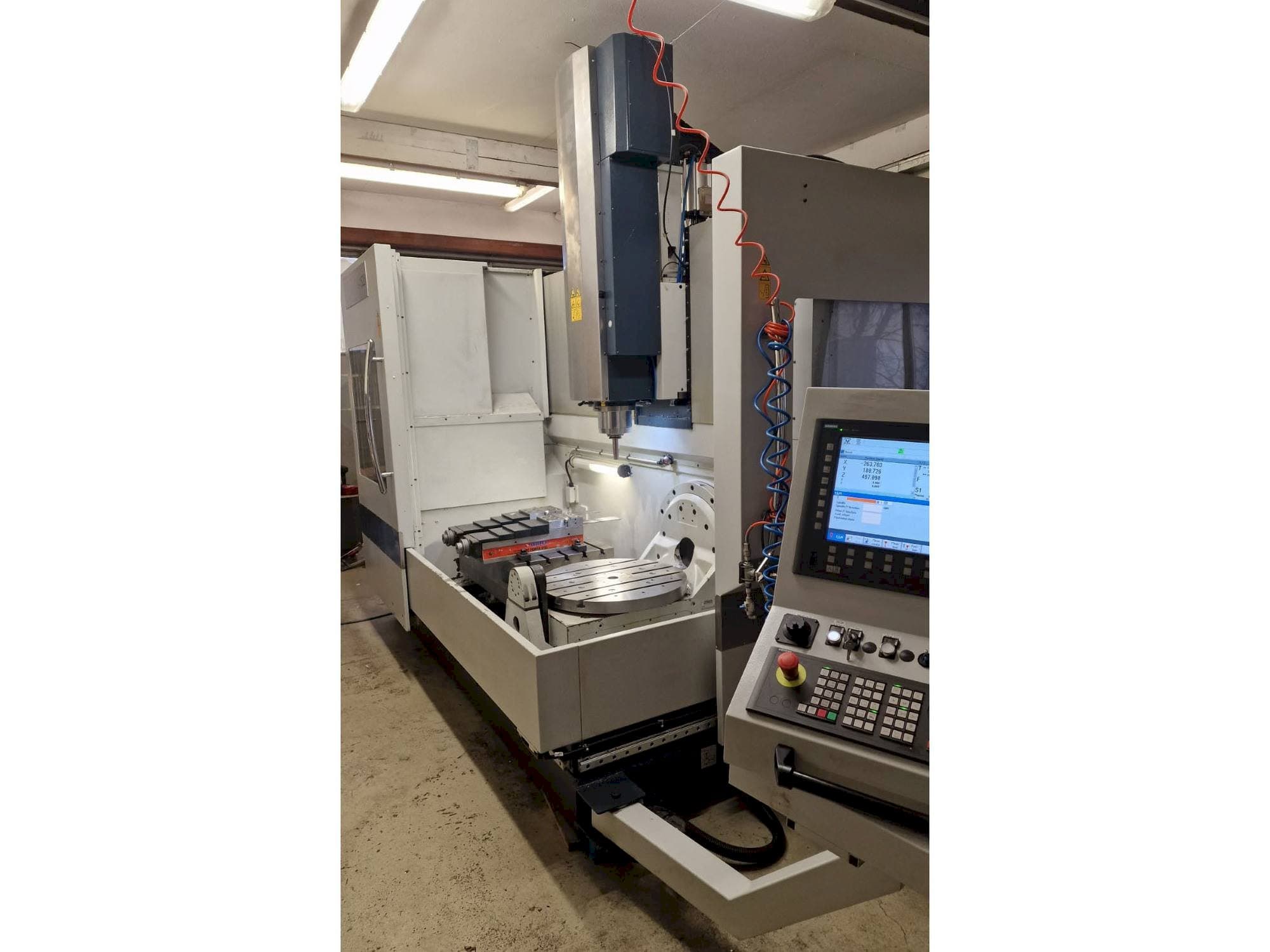

SPINNER U5 1520 vertical machining center

Show in original language

This SPINNER U5 1520 vertical machining center was built in the year 2016 and has 11469 hours, of which: more than 10 revolutions: 3152h, more than 6250 rpm: 1195h, over 10,500 rpm: 373h, and 157 hours of more than 11,800 revolutions. It is equipped with a Siemens Sinumerik 840D control. The machine has a spindle speed of 12000 rpm.

Overview

brand: SPINNER
year: 2016
MODEL: U5 1520
production hours: 11469
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - SPINNER U5 1520

General Data

Machine weight: 8500 - 9200 kg

Control Unit

Model: Sinumerik 840D
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN

Table

Table load: 500 kg with support, 300 kg without support

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle head sk40
- - Magazine with 32 tools
- - The b axis is the tilt of the table and is indexable
- - C is the rotation of the table and it is simultaneous
- - Blum measuring probe and tool measuring sponge
- - Torque s6 40%/s1 - 100/63
- - Power s6 40%/s1 (kw) - 15/9
Qualitative Machine Benefits:
- - Instructions for use and other documentation available in slovenian, english and german (everything is in digital format, but some is also in printed format).
- - The machine is from 2016 (beginning of the year), with installation in 2016 (around august). Start of regular use in 2017 (approx. March). In 2022, it was only occasionally used.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
