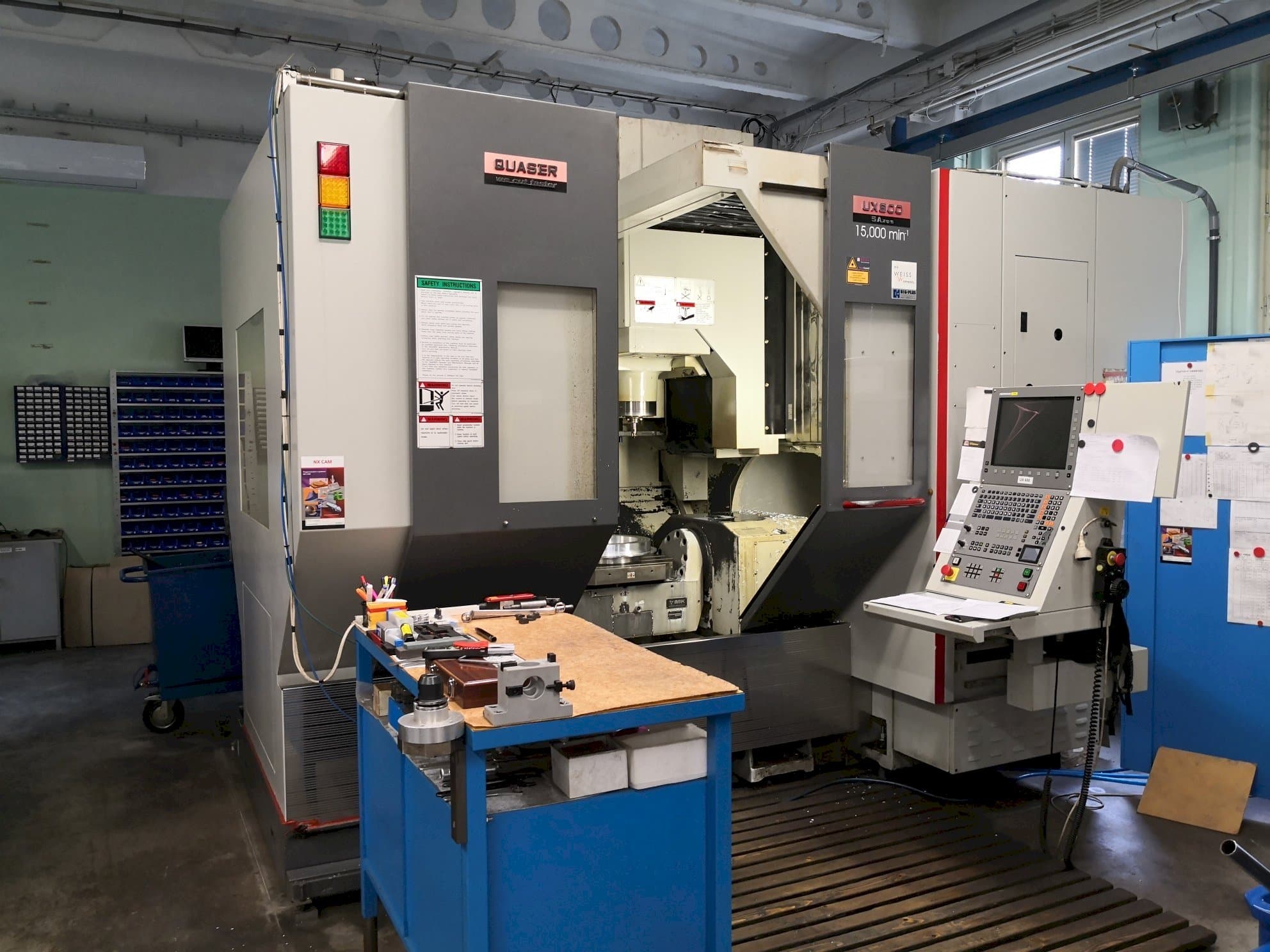

Quaser UX-600 Vertical Machining Center

Show in original language

This Quaser UX-600 Vertical Machining Center was manufactured in 2008 in Taiwan. It has been working for 45701 hours, of which 23090 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit. This 5 axis machine can work with a spindle speed up to 15000 rpm. New spindle installed in 2014.

Overview

brand: Quaser
year: 2008
MODEL: UX-600
production hours: 45701
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Quaser UX-600

General Data

Measurements width: 3950 mm
Measurements depth: 3810 mm
Measurements height: 3200 mm
Machine weight: 12100 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 885 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 600 mm
Outer width: 500 mm
Distance between: 100 mm

Tools

Slots in storage: 48
Max weight: 7 kg
Max tool diameter: 76.2/125 mm
Max tool length: 280 mm
Type of tool holder: SK 40

Media

Power consumption: 35 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5 axis machine with direct measurement on all axes
- - A axis + 30 / - 120 degrees
- - C axis 350 degrees (continuous)
- - Max. Swing 640 mm
- - Max. Workpiece size 640 x 415 mm
- - Table surface to spindle nose 30-530 mm
- - Feed force 13. 700 n
- - Rapid movement 36 m/min
- - 20 bar cooling through spindle
- - Blum laser tool probe, + renishaw workpiece probe
Qualitative Machine Benefits:
- - Very good condition.
- - In operation since 2010
- - New spindle installed in 2014

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
