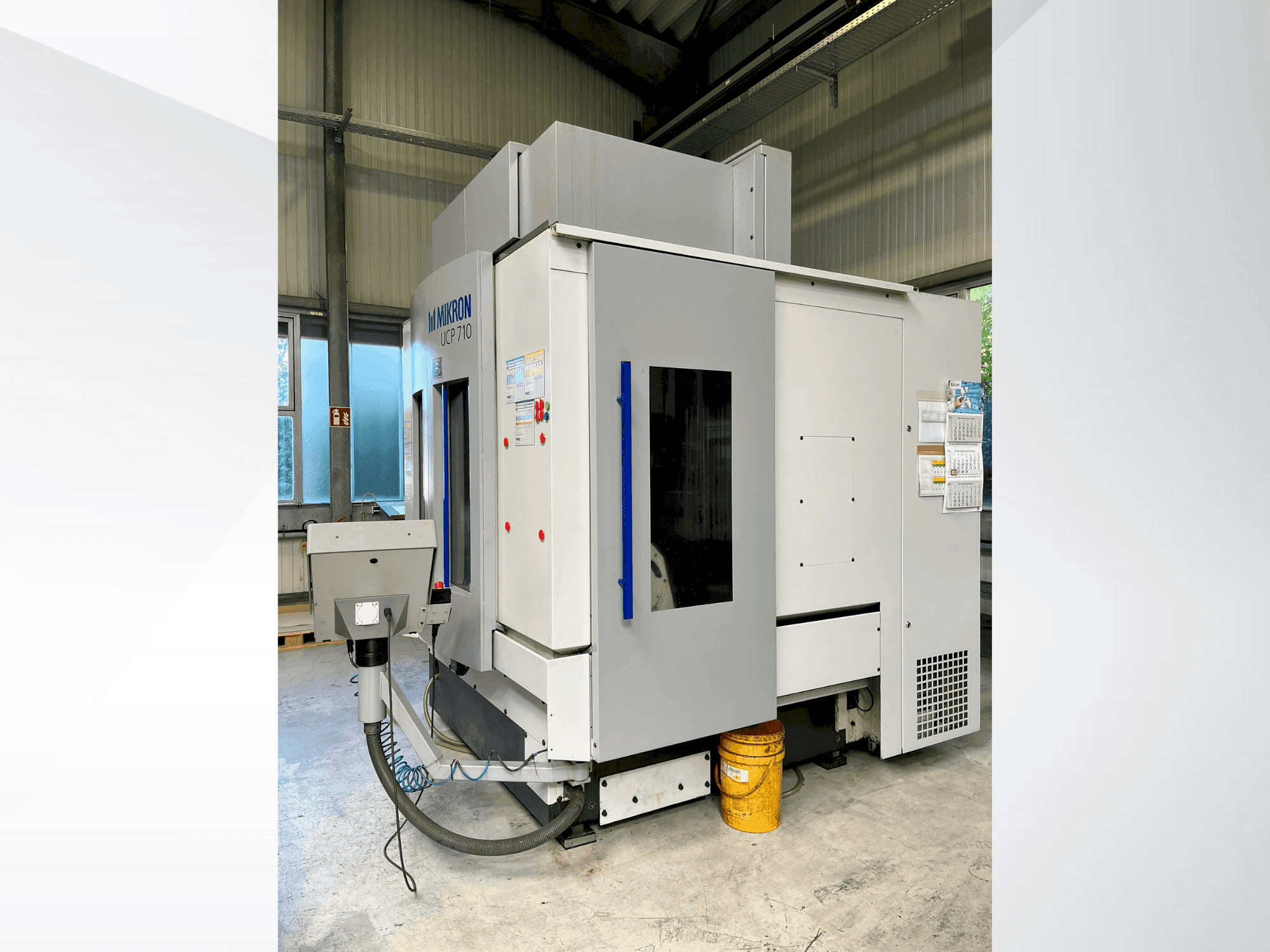

Front view of MIKRON VCP/UCP 710 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MIKRON VCP/UCP 710

Photo Gallery

MIKRON - VCP/UCP 710DE-MIL-MIK-1999-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MIKRON VCP/UCP 710 For sale | gindumac.com

Show in original language

This 5-axis MIKRON VCP/UCP 710 vertical machining center was manufactured in 1999. It features a rotary tilting table, a 30-fold tool changer, and a SK40 tool holder. Equipped with HEIDENHAIN TNC430 control, it also includes a chip conveyor and a belt filter system PITRAG. Weighing 10,000 kg, this machine offers robust performance for complex machining tasks. Contact us for further details regarding this vertical machining center.

Overview

brand: MIKRON
year: 1999
MODEL: VCP/UCP 710
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON VCP/UCP 710

General Data

Machine weight: 10000 kg

Control Unit

Model: TNC430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 50-10000 min 1/MIN
Tool taper: SK40
Number of axis: 5

Movement

X-AXIS Movement: 710 MM
Y-AXIS Movement: 500 MM
Z-AXIS Movement: 500 MM

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Number of Tools: 30-fold tool changer
Rotary Tilting Table
Belt Filter System: PITRAG
Tool Changer: Maximum tool diameter: 90 mm (fully loaded), 140 mm (partially loaded)/ Maximum tool length: 300 mm without taper/ Maximum tool weight: 8 kg / Maximum total weight of all tools: 180 kg in drum magazine
Feed Drives / Ball Screws: X-axis: 50 x 20 mm / Y/Z-axis: 40 x 20 mm
Programmable Speed: XY: 0-15,000 mm/min / Z: 0-20,000 mm/min / Maximum Rapid Traverse: XY: 30 m/min / Z: 30 m/min
Maximum Feed Force: X,Y: 7,000 N / X,Y: 7,000 N / Measurement Systems / Measurement Systems
Measurement Systems: VCP 710: 9,000 kg / UCP 710: 9,400 kg
Transport Dimensions (Pallet): Height: 3,250 mm / Length: 2,350 mm / Depth: 2,930 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
