Mazak VTC-820/30

Photo Gallery

Mazak - VTC-820/30GB-MIL-MAZ-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

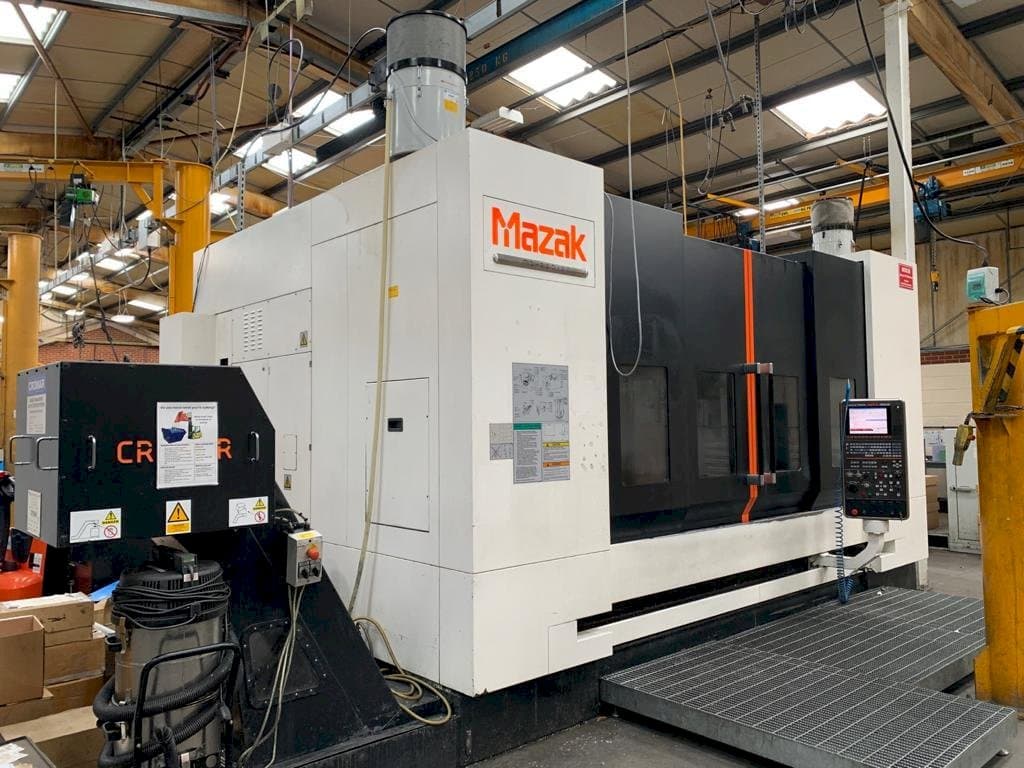

This Mazak VTC-820/30 Vertical Machining Center was made in 2011 in the United Kingdom. It is equipped with a MAZATROL matrix nexus control unit. This 4 axis machine is capable of performing with a spindle speed up to 12000 rpm and a table size of 3500 x 820 mm. It is in very good condition.

Overview

brand: Mazak
year: 2011
MODEL: VTC-820/30
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak VTC-820/30

General Data

Measurements width: 5650 MM
Measurements depth: 3700 MM
Measurements height: 3050 mm
Machine weight: 16100 KG

Control Unit

Model: MATRIX NEXUS
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 22 KW
Number of axis: 4

Movement

X-AXIS Movement: 3000 MM
Y-AXIS Movement: 820 MM
Z-AXIS Movement: 720 MM

Workpiece

Workpiece weight: 2500 KG

Table

Outer length: 3500 MM
Outer width: 820 MM

Tools

Slots in storage: 30
Type of tool holder: BT 40

Media

Main electronic connection: 415 V 50 HZ
Power consumption: 67.61 KVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition!

Technical Machine Benefits

4th axis rotary table
Min - max height under spindle 140 - 860 mm
Rapid feedrates 50 m/min
Swarf conveyor
Through spindle coolant, tool breakage sensor
Coolant, low volt light, interlocked guards

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
