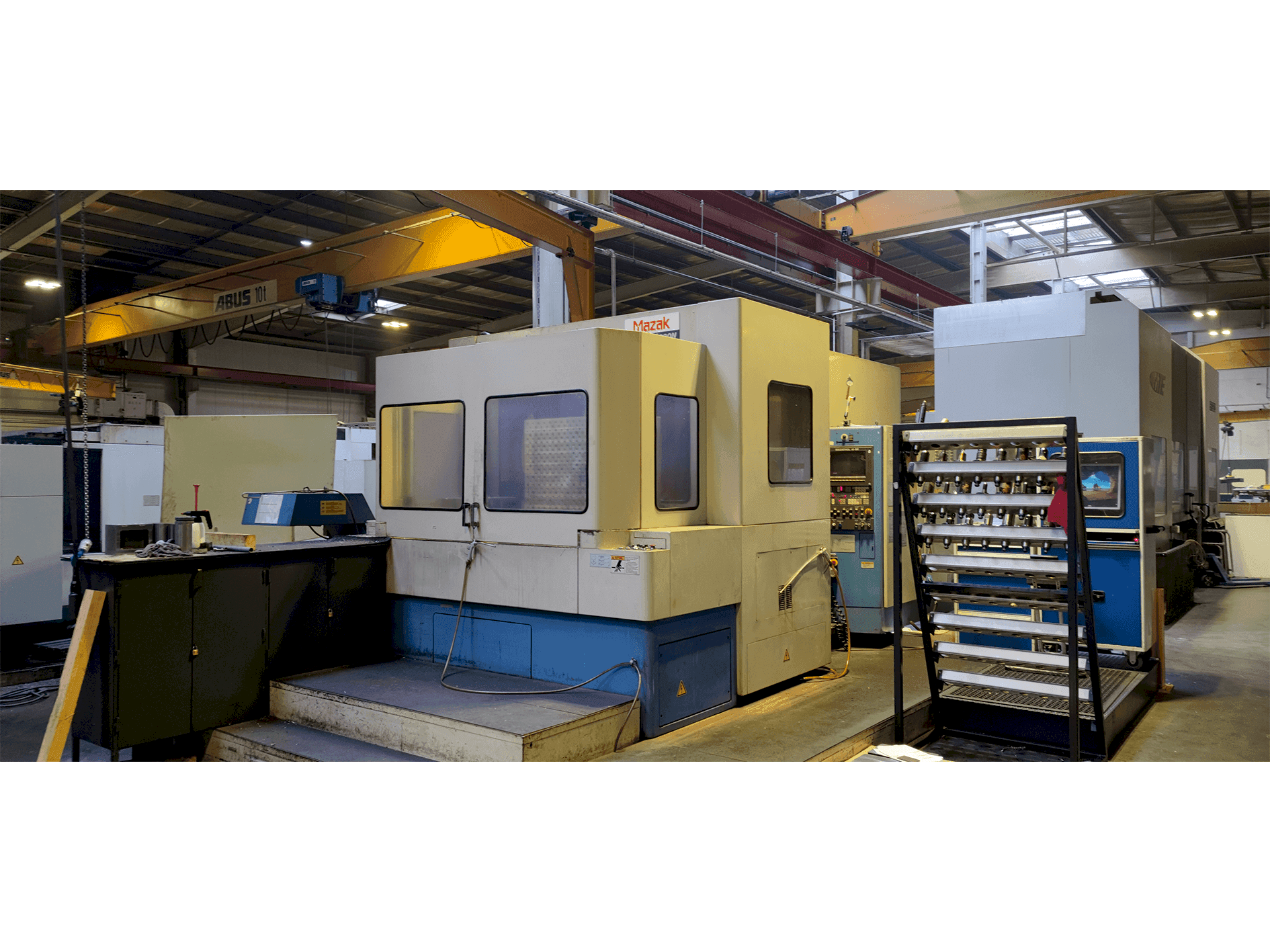

Mazak H-630 N Horizontal Machining Center

Show in original language

This Mazak H-630 N Horizontal Machining Center was built in Japan in 1994. It is operated through a Mazatrol M-32 control unit. This 4 axis machine works with a spindle speed range of 35 - 6000 rpm.

Overview

brand: Mazak
year: 1994
MODEL: H-630 N
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak H-630 N

General Data

Measurements width: 5347 mm
Measurements depth: 3260 mm
Measurements height: 3220 mm
Machine weight: 17000 kg

Control Unit

Model: M-32
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 35 - 6000 1/MIN
Spindle motor power: 18 - 22 kw
Tool taper: SK 50
Number of axis: 3

Movement

X-AXIS Rapid traverse: 24000 mm/min
Y-AXIS Rapid traverse: 24000 mm/min
Z-AXIS Rapid traverse: 20000 mm/min

Additional Information

Machine Benefits

Technical Machine Benefits

Table cross travel, x-axis: 1000 mm/min
Spindle head vertical stroke, y-axis: 800 mm
Horizontal column stroke, z-axis: 750 mm
Distance from the center of the spindle to the pallet surface: 50 - 850 mm
Distance from spindle end to pallet center: 200 - 950 mm
Dimensions of the pallet arrangement: 630 x 630 mm
Number of pallets: 2
Maximum loading weight for pallet: 1200 kg
Cutting feed, x-axis: 8000 mm/min, y-axis: 8000 mm/min, z-axis: 8000 mm/min
Index b-axis: 1º

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
