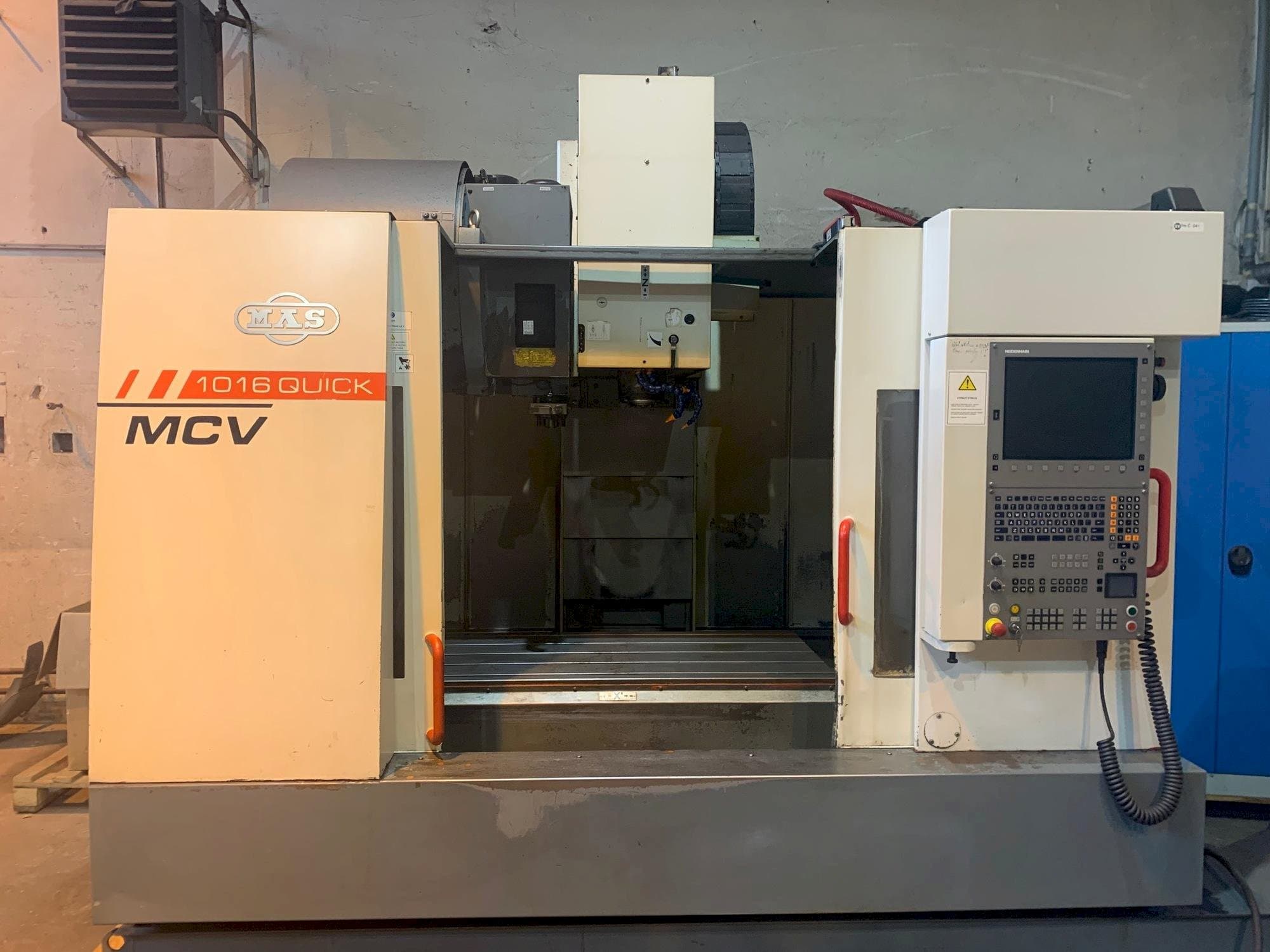

Front view of KOVOSVIT MAS MCV 1016 QUICK machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KOVOSVIT MAS MCV 1016 QUICK

Photo Gallery

KOVOSVIT MAS - MCV 1016 QUICKCZ-MIL-KOV-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KOVOSVIT MAS MCV 1016 QUICK

Show in original language

This KOVOSVIT MAS MCV 1016 QUICK Vertical Machining Center was manufactured in the year 2013 in Czech Republic. It has a working record of 20000 hours. This 3 axis machine is equipped with a HEIDENHAIN iTNC 530 HSCI control unit. It can work with a spindle speed up to 10000 rpm. A new spindle was installed in the machine in 2020. This machine presents very good conditions.

Overview

brand: KOVOSVIT MAS
year: 2013
MODEL: MCV 1016 QUICK
production hours: 20000
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1016 QUICK

General Data

Measurements width: 3080 mm
Measurements depth: 2700 mm
Measurements height: 2937 mm
Machine weight: 5500 kg

Control Unit

Model: iTNC 530 HSCI
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: (S1/S6 - 40%) 17/25 kW
Number of axis: 3

Movement

X-AXIS Movement: 1016 MM
Y-AXIS Movement: 610 MM
Z-AXIS Movement: 710 MM

Workpiece

Workpiece weight: 700 KG

Table

Outer length: 1300 MM
Outer width: 600 MM
Number of tslots: 5
Distance between: 125 MM

Tools

Slots in storage: 24
Max weight: 6.5 KG
Max tool diameter: 75/120 MM
Max tool length: 300 MM
Type of tool holder: ISO 40

Media

Power consumption: 40 KVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cooling through spindle
- - Workpiece probe
- - Main motor torque (s1/s6 - 40%) 162/239 nm
Qualitative Machine Benefits:
- - Very good condition
- - 2020 - new spindle installed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
