KONDIA A10

Photo Gallery

KONDIA - A10HU-MIL-KON-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

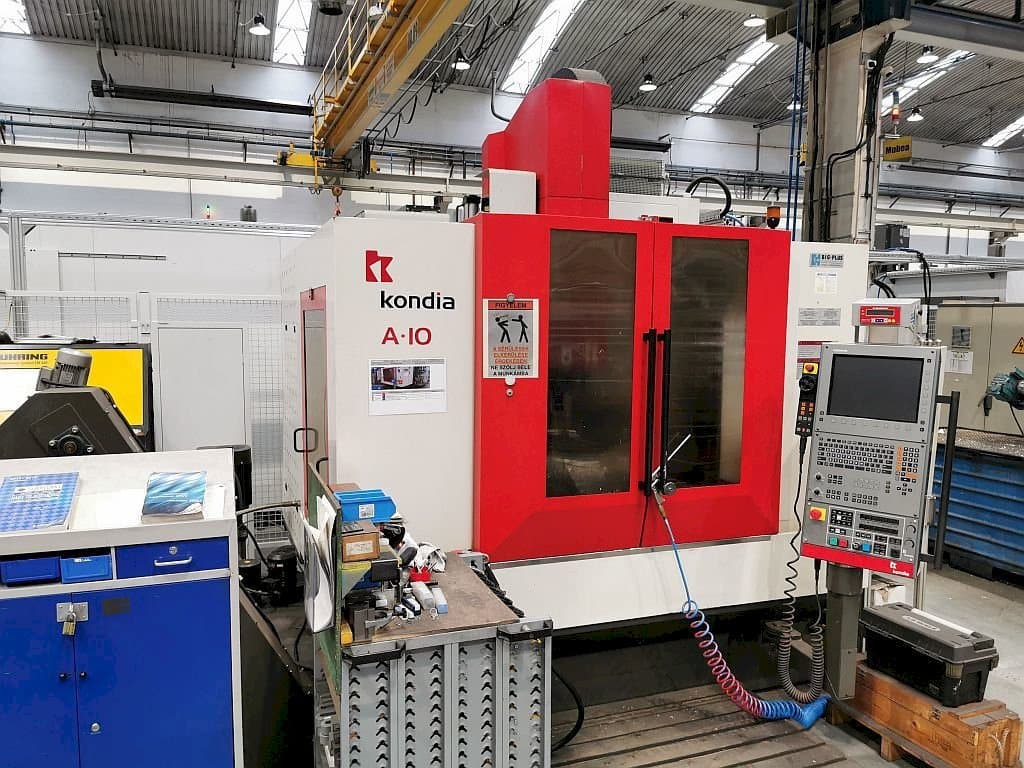

This KONDIA A10 Vertical Machining Center was built in 2010. It is operated through a HEIDENHAIN iTNC530 Control unit. This 3 axis machine works with a spindle speed up to 12000 rpm and it is 4th axis prepared. It includes an electric handwheel, IKZ 40 bar, a RENISHAW zero point meter and a spindle cooler. This machine is still in production and it is in very good conditions.

Overview

brand: KONDIA
year: 2010
MODEL: A10
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - KONDIA A10

General Data

Measurements width: 2100 mm
Measurements depth: 2650 mm
Measurements height: 2900 mm
Machine weight: 6300 Kg

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm

Table

Outer length: 1200 mm
Outer width: 500 mm
Table load: 850 Kg

Media

Pump drive power: 15 kW
Power consumption: 38.5 kVA

Additional Information

Additional equipment

Electric handwheel
IKZ 40 bar
spindle cooler
RENISHAW zero point meter

Machine Benefits

Qualitative Machine Benefits

Documentation available
The machine is still in production
Very good condition

Technical Machine Benefits

Pick-up big plus sk40
Atc magazine 40-fold
Coolant tank capacity 300 l
4th axis prepared
Y path 500 mm
Z path 610 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
