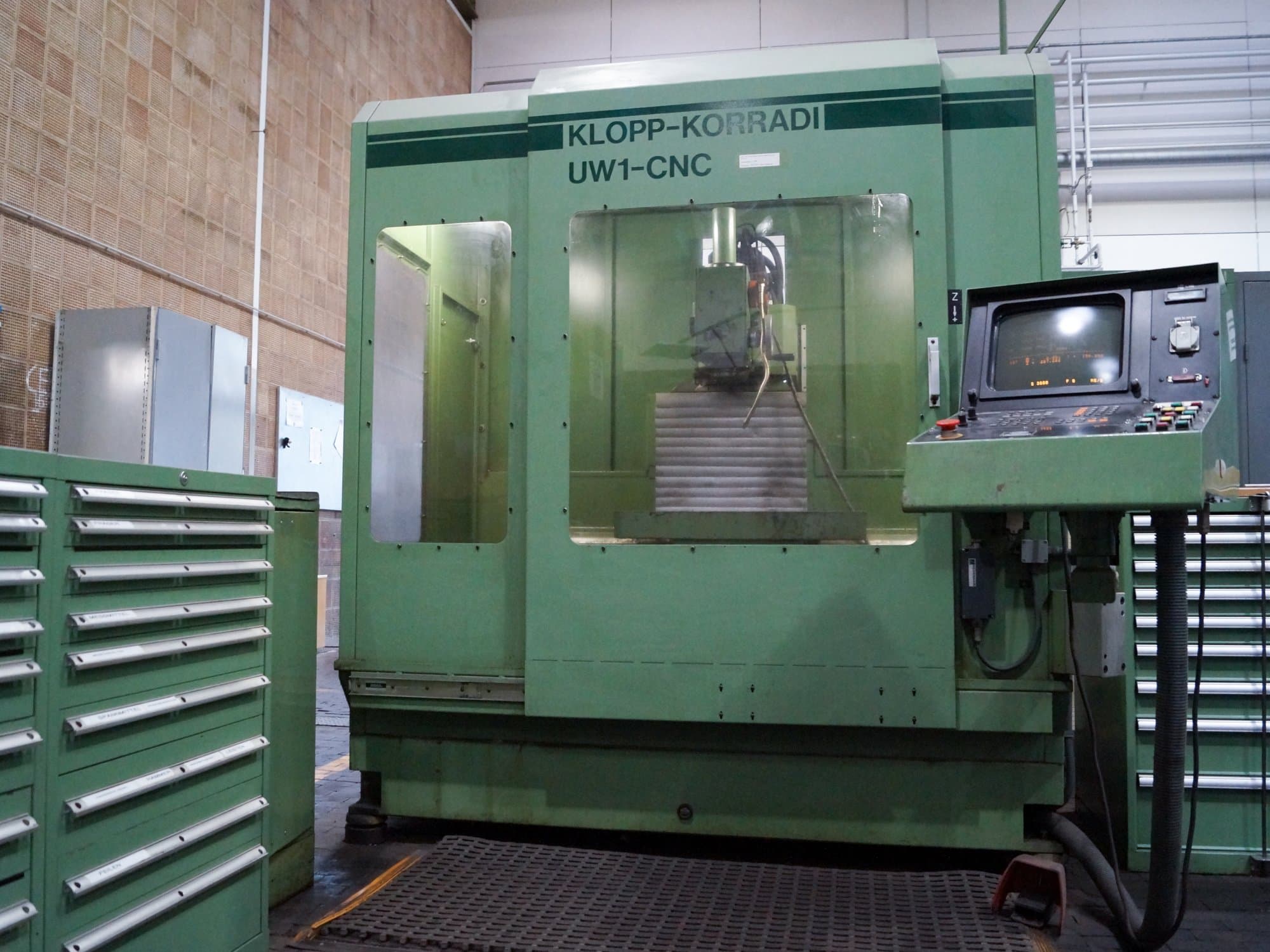

KLOPP-KORRADI UW 1-CNC Milling Machine

Show in original language

This KLOPP-KORRADI UW 1-CNC Milling Machine from 1989 has a production record of 19400 hours. This robust equipment is operated through a Heidenhain TNC 355 Control unit.

Overview

brand: KLOPP-KORRADI
year: 1989
MODEL: UW 1-CNC
production hours: 19400
application type: Milling
Location: Germany
machine type: Universal Machining Centre

Technical Information - KLOPP-KORRADI UW 1-CNC

General Data

Measurements width: 3435 mm
Measurements depth: 3050 mm
Measurements height: 1910 mm
Machine weight: 2000 kg

Main drive

Number of spindles: 1
Spindle speed range: 20-4000 1/min
Spindle motor power: 5.5 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 470 mm
X-AXIS Working Feed: 1-2000 mm/min
X-AXIS Feed Force: 8000
X-AXIS Rapid traverse: 7000 mm/min
Y-AXIS Movement: 320 mm
Y-AXIS Working Feed: 1-2000 mm/min
Y-AXIS Feed Force: 8000
Y-AXIS Rapid traverse: 7000 mm/min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 1-2000 mm/min
Z-AXIS Feed Force: 8000
Z-AXIS Rapid traverse: 7000 mm/min

Workpiece

Workpiece weight: 250 kg

Table

Outer length: 720 mm
Outer width: 360 mm
TSlots size: 14 mm
Number of tslots: 5
Distance between: 63 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
