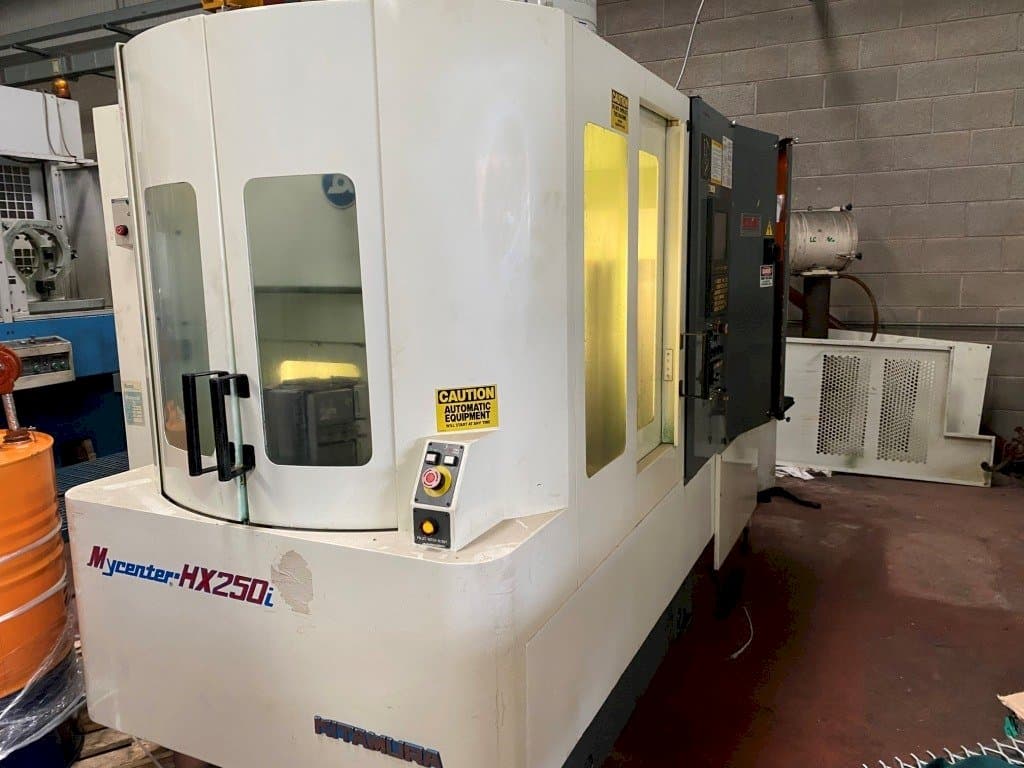

Front view of Kitamura Mycenter HX250i machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Kitamura Mycenter HX250i

Photo Gallery

Kitamura - Mycenter HX250iIE-MIL-KIT-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Kitamura Mycenter HX250i Horizontal Machining Center

Show in original language

This Kitamura Mycenter HX250i Horizontal Machining Center was made in Japan in 2002. This machine incorporates a table of 254x254 mm and can perform with a spindle speed up to 15000 rpm.

Overview

brand: Kitamura
year: 2002
MODEL: Mycenter HX250i
application type: Milling
Location: Ireland
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - Kitamura Mycenter HX250i

General Data

Measurements width: 2330 mm
Measurements depth: 2950 mm
Measurements height: 2470 mm
Machine weight: 4500 kg

Control Unit

CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN

Movement

X-AXIS Movement: 305 mm
Y-AXIS Movement: 305 mm
Z-AXIS Movement: 330 mm
B-AXIS Movement: 0.001-360 ° MM

Workpiece

Workpiece drm: 350 mm
Workpiece z: 400 mm
Workpiece weight: 100 kg

Table

Outer length: 254 mm
Outer width: 254 mm

Tools

Slots in storage: 40
Max weight: 2 kg
Max tool diameter: 50 mm
Max tool length: 200 mm
Type of tool holder: BT30

Media

Main electronic connection: 380 V
Power consumption: 15 kVA
Internal cooling: Yes

Additional Equipment

- Filtermist FX2000
- 2 x Pallets

Additional Information

Machine history

Material type: Steel
End product: Machined components

Machine Benefits

Technical Machine Benefits:
- - Compact footprint
Qualitative Machine Benefits:
- - Well maintained machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
