Hurco - VMX 42iGB-MIL-HUR-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

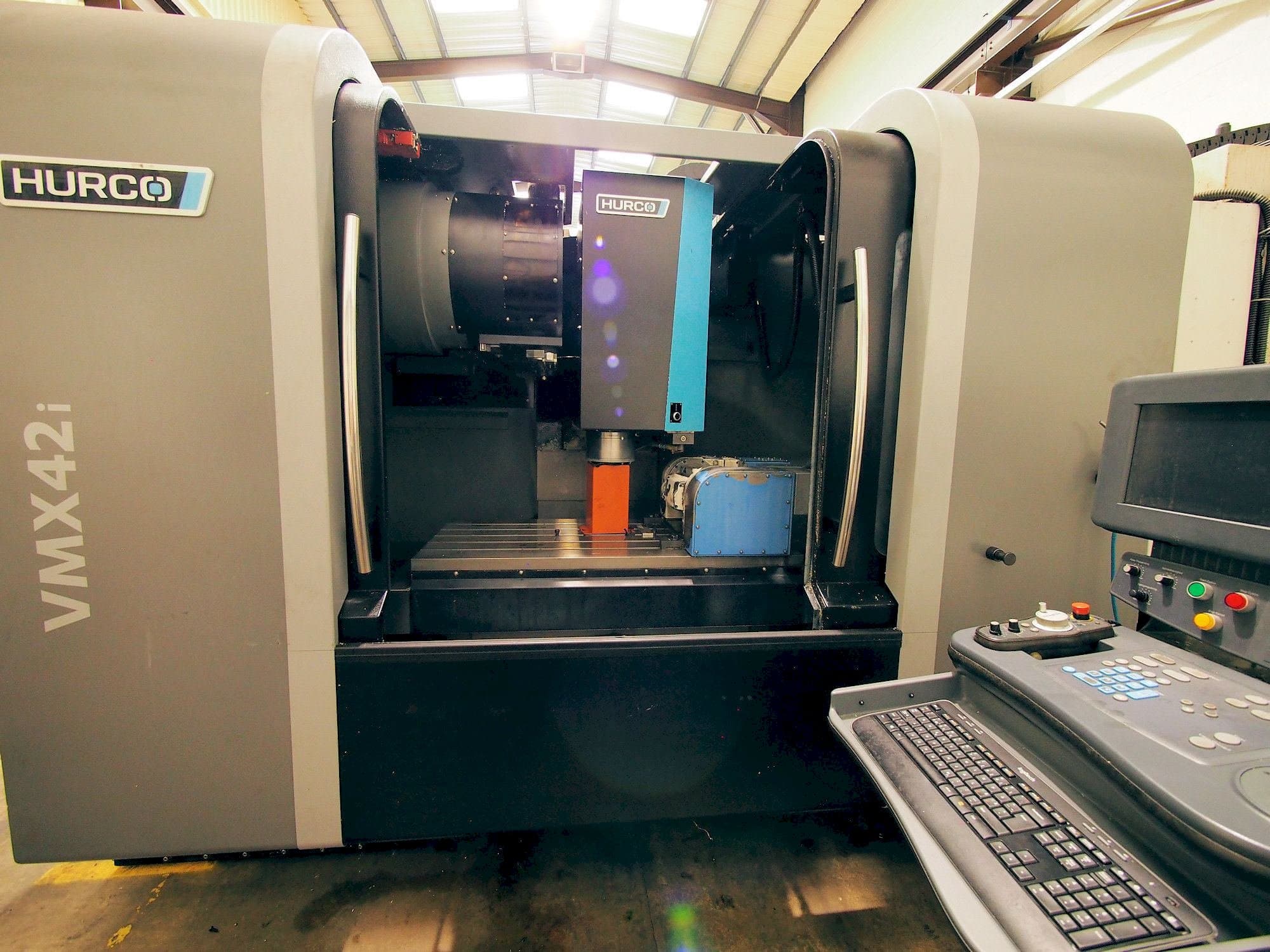

This Hurco VMX 42i Vertical Machining Center was manufactured in 2014 in Taiwan. It has been working for 30702 hours, of which 16644 area spindle hours. It is operated through a Hurco WinMax control unit. This machine has a spindle speed up to 10000 rpm. It is a 5 axis vmc as it is equipped with the additional swiveling and rotation table, which makes it 5 axis. It is only suitable for smaller parts. It is in a very good working conditions.

Overview

brand: Hurco
year: 2014
MODEL: VMX 42i
production hours: 30702
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco VMX 42i

General Data

Measurements width: 5435 mm
Measurements depth: 4500 mm
Measurements height: 2844 mm
Machine weight: 6900 kg

Control Unit

Model: VMX 42i
Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: 18 kw
Number of axis: 5

Workpiece

Workpiece weight: 1360 kg

Table

Outer length: 1270 mm
Outer width: 610 mm
Min distance between vertical spindle and table: 152-762 mm

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 79 mm
Max tool length: 300 mm
Type of tool holder: DIN 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feedrates x y z 35 / 35 / 30 m/min
- - Coolant
- - Interlocked guards
- - It is equipped with the additional swiveling and rotation table
- - It is only suitable for smaller parts
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
