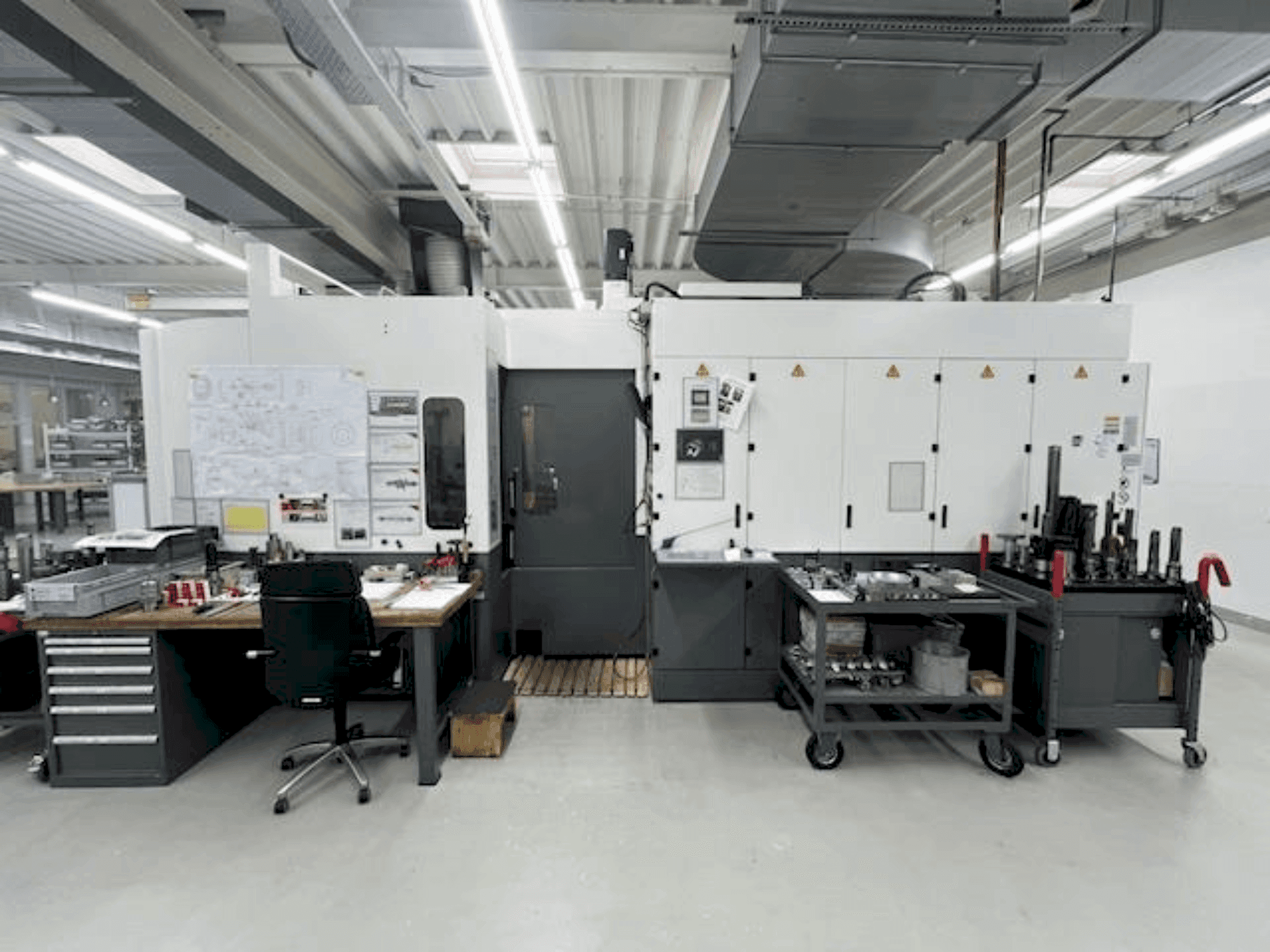

Front view of HULLER HILLE Nbh 170 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HULLER HILLE Nbh 170

Photo Gallery

HULLER HILLE - Nbh 170DE-MIL-HUL-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HULLER HILLE Nbh 170 For Sale | gindumac.com

Show in original language

This 4-axis HULLER HILLE NbH 170 horizontal machining center was manufactured in 1998. It features a robust CNC Siemens SINUMERIK 840 C control system, a spindle capable of 25 to 12,000 rpm with ceramic bearings, and a dual pallet system with 180° rotation. The machine includes a high-capacity tool magazine and an advanced coolant system with chip conveyor. If you are looking to get high-quality machining capabilities, consider the HULLER HILLE NbH 170 machine we have for sale. Contact us for more information.

Overview

brand: HULLER HILLE
year: 1998
MODEL: Nbh 170
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - HULLER HILLE Nbh 170

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840C

Main drive

Spindle speed range: 25 to 12000 rpm 1/MIN
Spindle motor power: 46 kW

Movement

X-AXIS Movement: 800 MM
Y-AXIS Movement: 630 MM
Z-AXIS Movement: 800 MM

Additional Information

Additional equipment

Table: 1 NC Table (B-Axis): Smallest Step Size: 0.001 degrees / Repeatability: ± 0.001 degrees / Accuracy Across All Positions: ± 0.002 degrees / Allowable Moments on Locked Table: Max Tangential Moment: 7000 Nm/ Max Tilting Moment: 16000 Nm
Clamping Forces: At Table: 147000 Nm / At Pallet: 84600 Nm
Tools: Tool Holder: HSK-A100, per DIN 69 893 / Tool Magazine holds 2 magazine cassettes / 1 Magazine Cassette with 50 tool slots for SK50 tools / Tool Cone Cleaning System for HSK-A100
Coolant System: with integrated chip conveyor / Coolant Pump: Q = 30 l/min, 10 bar for internal and external coolant supply via the work spindle
System Pressure: Up to 50 bar for internal coolant supply / Flow Rate: 30 l/min at 10 bar to 10 l/min at 50 bar
Filter: Bagless trough belt filter / 2 Cross Conveyors in the X-axis / Chip Conveyor with 1200 mm discharge height
Automatic Central Lubrication
Extraction Connection for oil and coolant mist separator
Rotating Clear View Window: VISIPORT

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
