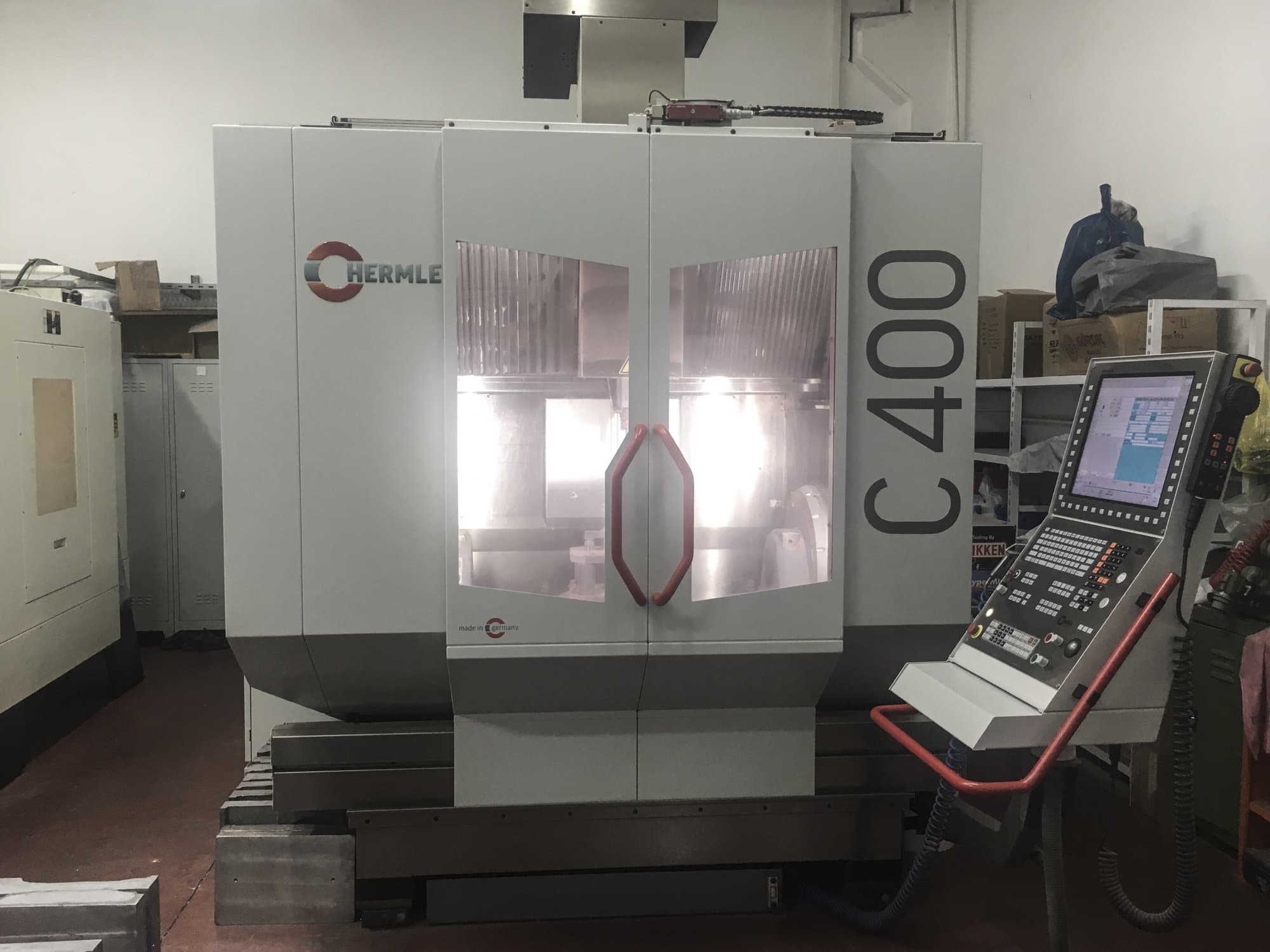

HERMLE C 400 U Vertical Machining Center

Show in original language

This HERMLE C 400 U Vertical Machining Center from 2015 was manufactured in Germany and has a total of only 9118 production hours. Equipped with a HEIDENHAIN iTNC 530 Control unit, this 5 axis machine with 440 mm rotary table has exclusively worked with SIBA materials during the past and is in excellent conditions. This machine has a standard non-pressurized internal coolant supply with paper band filter installed. It can be upgraded to a pressurized system with a manually adjustable capacity of up to 40 bar or 27L/min max. pressure.

Overview

brand: HERMLE
year: 2015
MODEL: C 400 U
production hours: 9118
application type: Milling
Location: Turkey
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE C 400 U

General Data

Machine weight: 10500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/min

Movement

X-AXIS Movement: 850 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 600 kg

Tools

Slots in storage: 38
Max weight: 152 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 34 kVA
Lubrication tank: 250 L
Internal cooling: Yes
Cooling pressure: 40 bar / 27 l/min

Additional Equipment

- KinematicOpt hardware

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
