HARTFORD MVP-11

Photo Gallery

HARTFORD - MVP-11ES-MIL-HAR-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

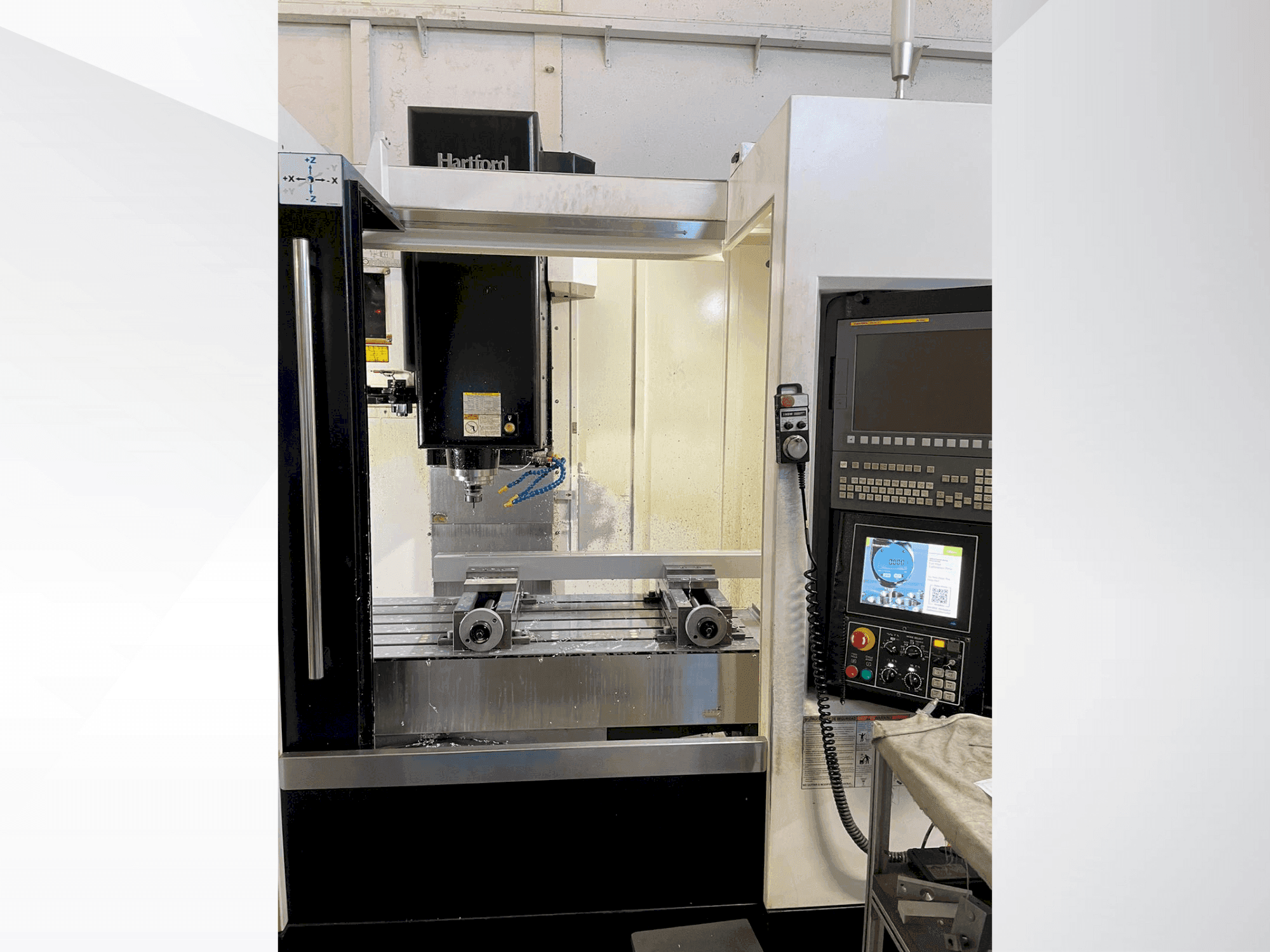

HARTFORD MVP-11 3-axis Vertical Machining Centre

Show in original language

This HARTFORD MVP-11 3-axis Vertical Machining Centre was manufactured in 2018 in Taiwan. It is equipped with a 12000 rpm spindle with BT40 tool taper. The automatic tool changer has 24 slots and can process a max. tool weight of 6 kg, a max. tool size of diameter 75 mm and 300 mm length (random tool selection). This 3-axis machine (X = 1200 mm / Y = 600 mm / Z = 630 mm) has a working surface of 1060 x 600 mm with 5 t-slots of 10mm (100 mm pitch) and max. table load of 800 kg. The machine is still under power. Contact us at any time if you have further questions!

Overview

brand: HARTFORD
year: 2018
MODEL: MVP-11
application type: Milling
Location: Spain
machine type: Vertical Machining Centre

Technical Information - HARTFORD MVP-11

Control Unit

Model: AI 100

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: BT 40
Number of axis: 3

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 630 mm

Table

Outer length: 1060 mm
Outer width: 600 mm
TSlots size: 10 mm
Number of tslots: 5
Distance between: 100 mm
Table load: 800 kg

Tools

Slots in storage: 24
Max weight: 6 kg
Max tool diameter: 75 mm
Max tool length: 300 mm
Type of tool holder: BT 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
