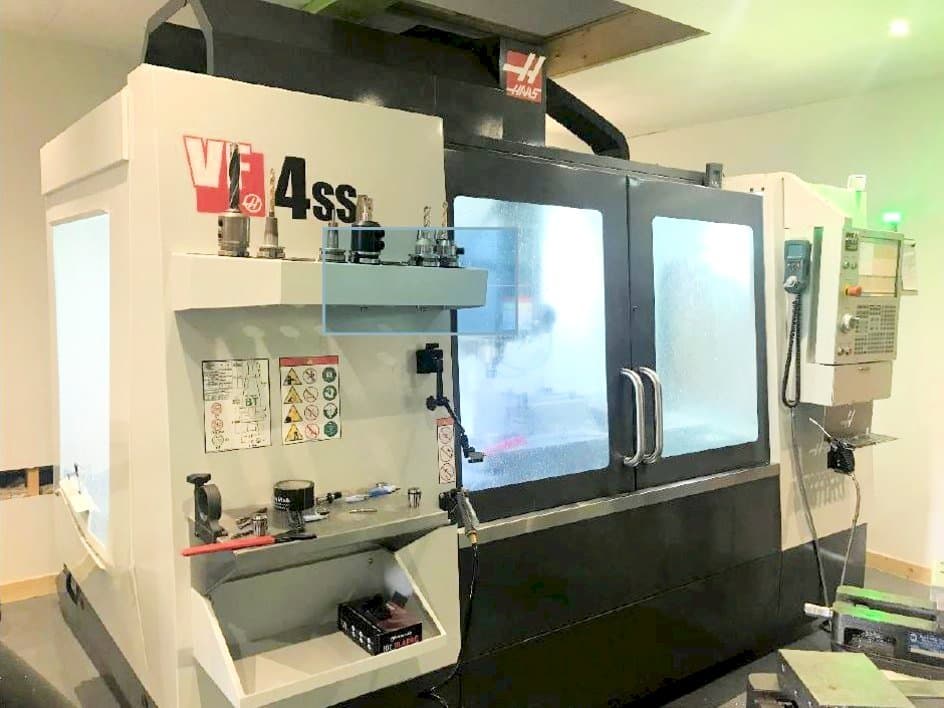

HAAS VF-4SS Milling machine

Show in original language

This HAAS VF-4SS Milling machine was built in 2019 in the United States. It is controlled by a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 rpm and is in very good condition, only used for cutting aluminum and plastics.

Overview

brand: HAAS
year: 2019
MODEL: VF-4SS
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-4SS

General Data

Measurements width: 3629 mm
Measurements depth: 2794 mm
Measurements height: 2985 mm
Machine weight: 6033 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 794 kg

Table

Outer length: 1324 mm
Outer width: 457 mm
Number of tslots: 5
Distance between: 18 mm

Tools

Slots in storage: 30
Max weight: 5,4 kg
Max tool diameter: 127 mm
Max tool length: 330 mm
Type of tool holder: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feed rates 35. 6m/minute
- - Min-max height under spindle 107-742 mm
- - Wips system (wireless intuitive probing system)
- - Tool setter, spindle probe
- - Programmable coolant nozzle
- - Coolant
- - Usb port
- - Through spindle coolant
- - Swarf auger
Qualitative Machine Benefits:
- - Very good condition
- - Only used for cutting aluminium and plastics

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
