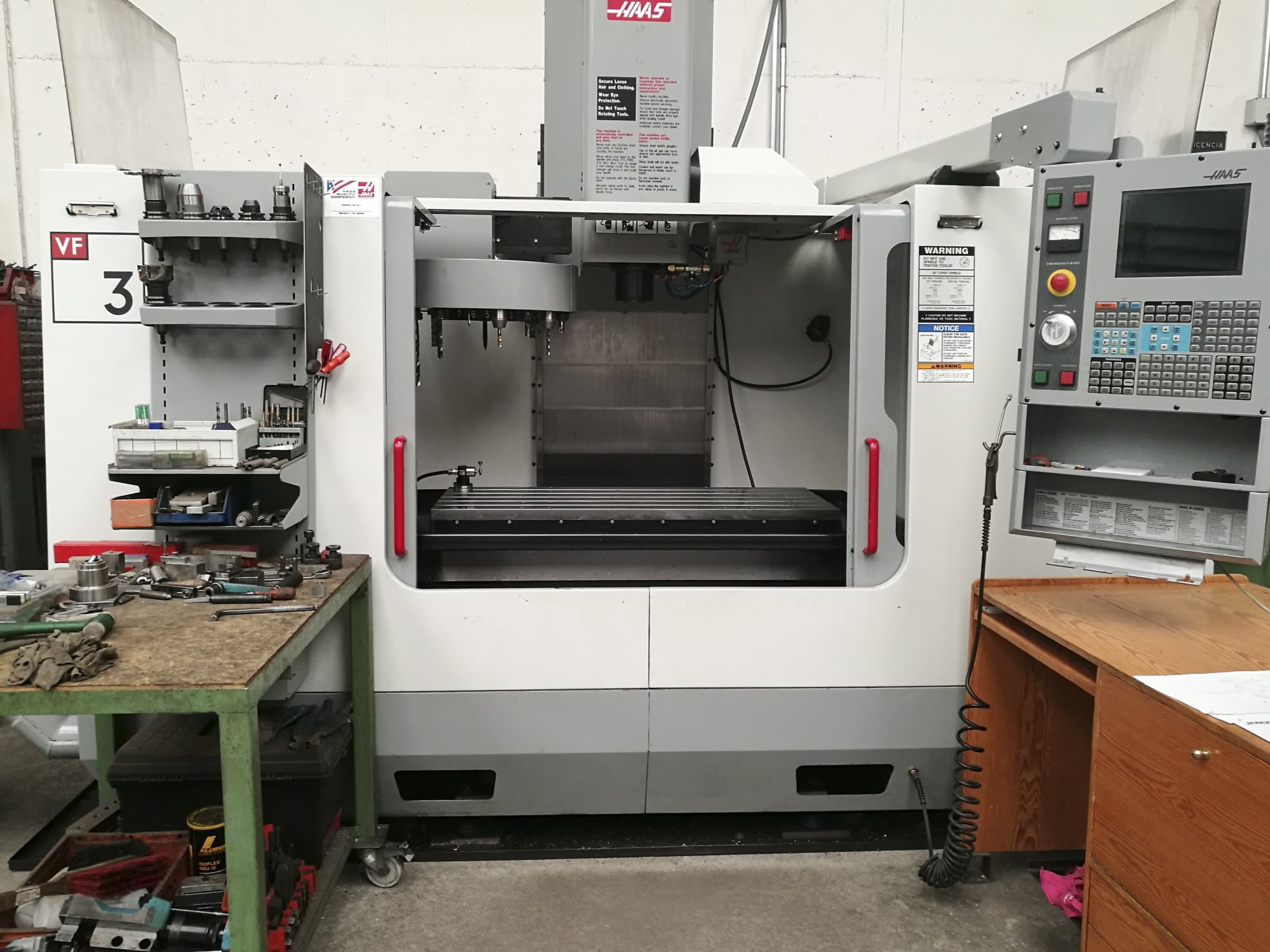

HAAS VF-3BHE Vertical Machining Center

Show in original language

This American-made HAAS VF-3BHE Vertical Machining Center, built in 2004, has a production record of 10000 hours. HAAS implemented its own, easy to use Control unit minimizes programming with its intuitive and user-friendly software and a remote control. The VF-3BHE comes with a high-performance motor and spindle for high-quality results. This machine includes additional tool tapers as accessories.

Overview

brand: HAAS
year: 2004
MODEL: VF-3BHE
production hours: 10000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-3BHE

General Data

Measurements width: 3530 mm
Measurements depth: 2794 mm
Measurements height: 2985 mm
Machine weight: 5670 kg

Control Unit

Brand: HAAS
Remote control: Yes

Main drive

Number of spindles: 1
Spindle speed range: 0-7500 1/min
Spindle motor power: 15 kW
Tool taper: BT 40

Movement

X-AXIS Movement: 1016 mm
X-AXIS Working Feed: 16.5 m/mm
X-AXIS Rapid traverse: 25.4 m/mm
Y-AXIS Movement: 508 mm
Y-AXIS Working Feed: 16.5 m/mm
Y-AXIS Rapid traverse: 25.4 m/mm
Z-AXIS Movement: 635 mm
Z-AXIS Working Feed: 16.5 m/mm
Z-AXIS Rapid traverse: 25.4 m/mm

Workpiece

Workpiece weight: 1588 kg

Table

Outer length: 1219 mm
Outer width: 457 mm
TSlots size: 15.875 mm

Tools

Slots in storage: 20
Max weight: 5.4 kg
Max tool diameter: 89 mm

Media

Main electronic connection: 360-460 V
Power consumption: 14 kVA
Chip conveyor: Yes

Additional Information

Additional equipment

Tool tapers

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
