HAAS VF-2 SS

Photo Gallery

HAAS - VF-2 SSSI-MIL-HAA-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF-2 SS - 2016 - Vertical Machining Center

Show in original language

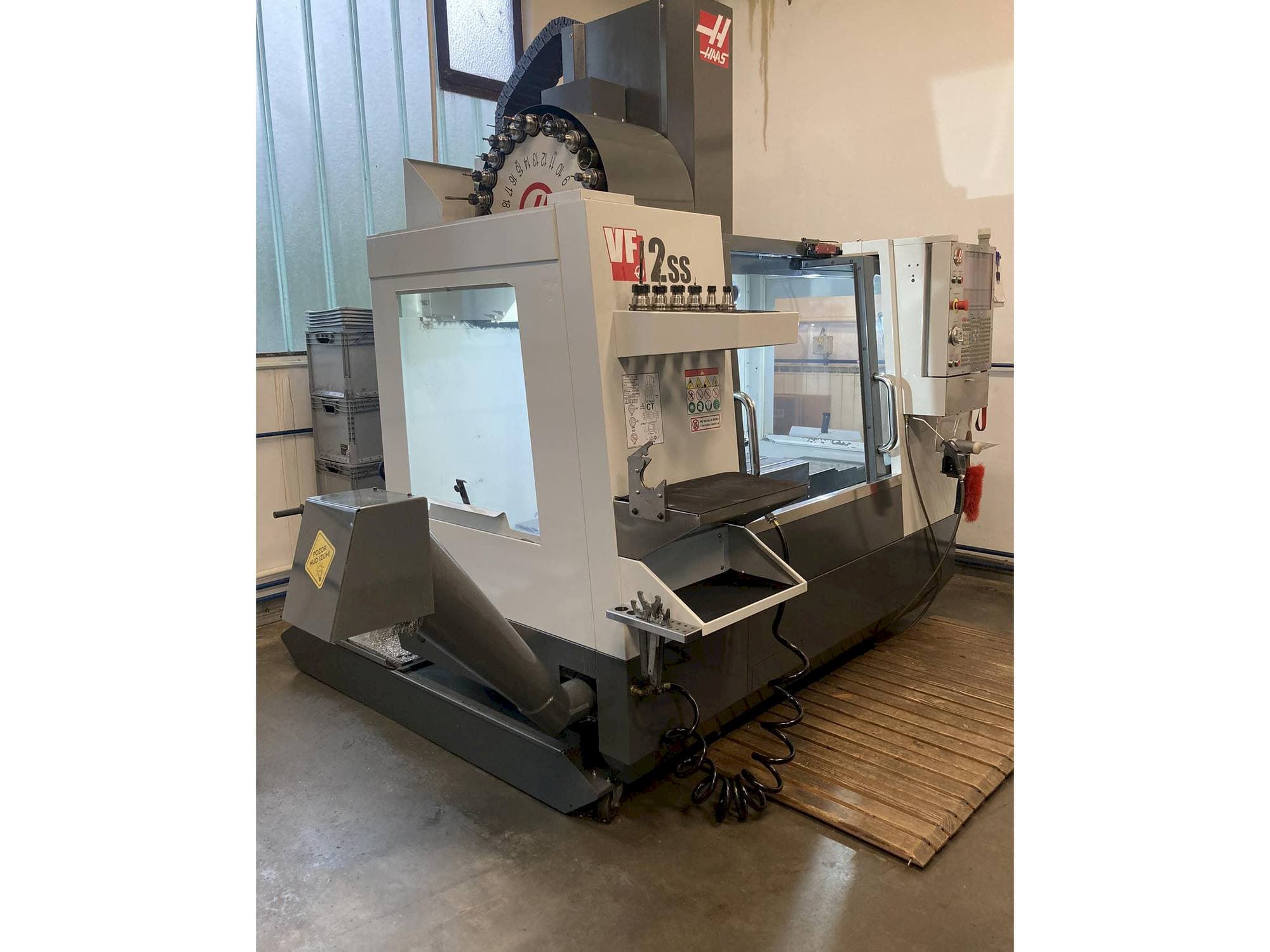

This HAAS VF-2 SS Vertical machining center was manufactured in the year 2016 in the United States. It is equipped with a HAAS control unit. The machine has a spindle speed of 12000 rpm.

Overview

brand: HAAS
year: 2016
MODEL: VF-2 SS
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-2 SS

General Data

Machine weight: 3539 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW
Tool taper: BT40

Movement

X-AXIS Movement: 762 mm
X-AXIS Rapid traverse: 35.6 m/min
Y-AXIS Movement: 406 mm
Y-AXIS Rapid traverse: 35.6 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 35.6 m/min

Table

Outer length: 914 mm
Outer width: 356 mm
TSlots size: 15.90 mm - 16.00 mm
Distance between: 125 mm
Table load: 680 kg

Tools

Slots in storage: 24+1
Max weight: 5.4 kg
Max tool diameter: 64 - 127 mm
Max tool length: 279 mm
Type of tool holder: SMTC

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool set has 24+1
- - Spindle nose to table max: 610 mm
- - Spindle nose to table min: 102 mm
- - Axis motors: max thrust x: 8874 n, max thrust y: 8874 n, max thrust z: 13723 n
- - Coolant capacity: 208 l
- - Air required: 113 l/min
- - Air pressure min: 5. 5 bar
- - Renishaw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
