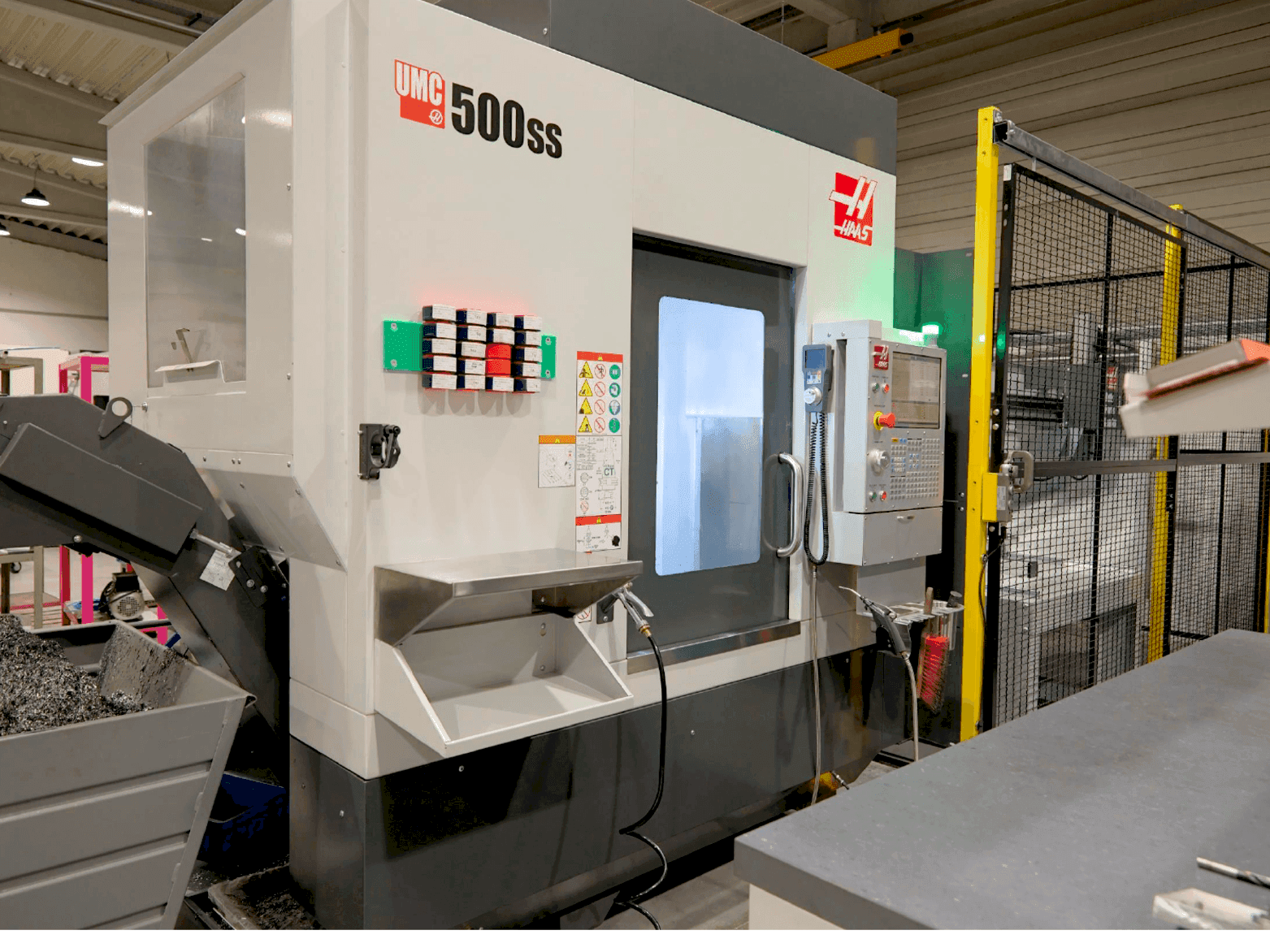

Front view of HAAS UMC 500-SS MIT APL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HAAS UMC 500-SS MIT APL

Photo Gallery

HAAS - UMC 500-SS MIT APLDE-MIL-HAA-2021-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HAAS UMC 500-SS MIT APL Vertical Machining Center

Show in original language

This HAAS UMC 500-SS MIT APL Vertical Machining Center was manufactured in 2021 in the United States and has 4650 production hours, of which 2243 are spindle hours. It is controlled by a HAAS control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: HAAS
year: 2021
MODEL: UMC 500-SS MIT APL
production hours: 4650
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC 500-SS MIT APL

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 5

Movement

X-AXIS Movement: 610 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 406 mm
B-AXIS Movement: -35° / +120°
C-AXIS Movement: 360°

Table

Outer length: 400 mm

Tools

Slots in storage: 30
Max weight: 5,4 kg
Max tool diameter: 127 mm
Max tool length: 305 mm
Type of tool holder: SK40

Additional Information

Machine Benefits

Qualitative Machine Benefits

Wlan interface, haas save run
Continued haas drop - wireless data transmission
Handwheel with touch screen
Synchronous thread cutting
Dynamic workpiece offset and tool centre point control
"high-speed machining 1gb programme memory
Measuring system in the rotary axes
Automatic workpiece loader (apl)
Ce-compliant safety fence for apl
Continuation 2-channel hydraulic rotary feed-through in the swivel rotary table incl.

Technical Machine Benefits

Rapid traverse: 30m/min in x-, y- and z-axis
Direct path measuring system in all 3 axes
Clamping hydraulic 2514 nm in b and c
Renishaw workpiece and tool measuring probe
208l coolant tank
Variable coolant pressure, adjustable via m-function
Control cabinet cooling ,touchscreen contro
M130 media display, haasconnect remote monitoring
Early detection module for power failure
Ethernet interface

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
