HAAS EC400

Photo Gallery

HAAS - EC400IL-MIL-HAA-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HAAS EC400 Milling

Show in original language

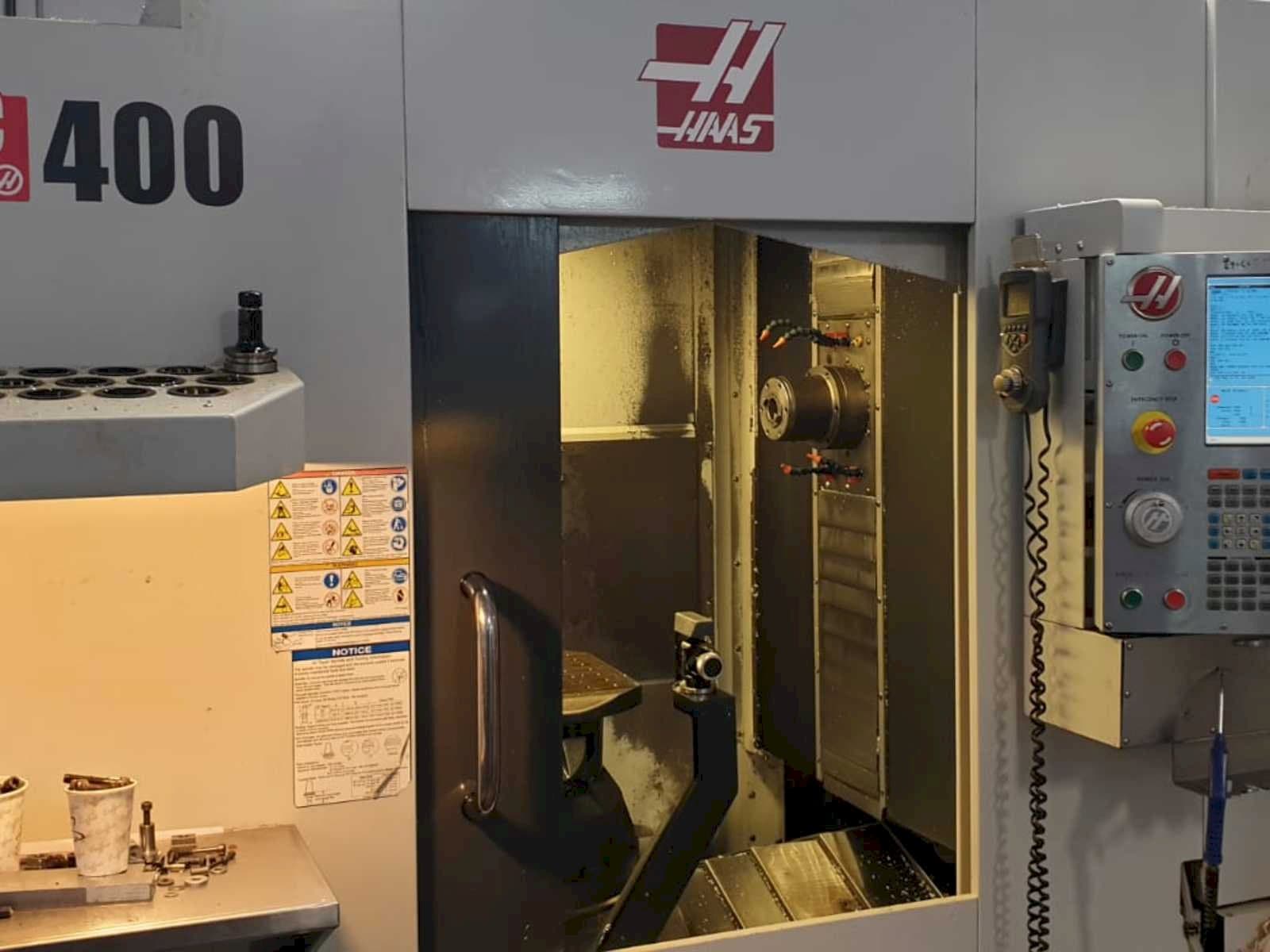

This HAAS EC400 Horizontal Machining center was manufactured in 2012. The 4 axis machine operates through a Haas CNC control unit. It has a spindle speed up to 12000 rpm. The machine comes with full ATC 70 Tools.

Overview

brand: HAAS
year: 2012
MODEL: EC400
application type: Milling
Location: Israel
machine type: Horizontal Machining Centre
control unit brand: HAAS

Technical Information - HAAS EC400

General Data

Machine weight: 9525 kg

Control Unit

Model: CNC
Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 508 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm

Additional Information

Additional equipment

Belt Type Chip Conveyor
Intuitive Probing, Renishaw
Tool Tray
Lifting kit
Rigid tapping
Remote Jog Handle
Power Fault Detection Module
Programmable Coolant Nozzle
Disk & Hard Drive
Coordinate Rotation & Scaling

Machine Benefits

Qualitative Machine Benefits

Max. Cutting 500 ipm
Tool changer: capacity 70+1
Tool type/taper cat 40
Coolant capacity 80 gal
Power required (min) 195-260 vac 3-phase
30 hp main drive motor
70 position automatic tool changer
Rigid tapping
Coolant thru spindle, 300 psi

Technical Machine Benefits

Pallet size: 400 mm x 400 mm
Change time 8 sec
Optional full 4th axis
Capacity 660 lbs
Indexing accuracy +/-15 arc-sec
90 deg. Rotation time 3 sec.
Drive system inline direct drive
Max. Torque 90ft-lb @ 2000 rpm
Max. Rating 30 hp
Rapids 1000 ipm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
