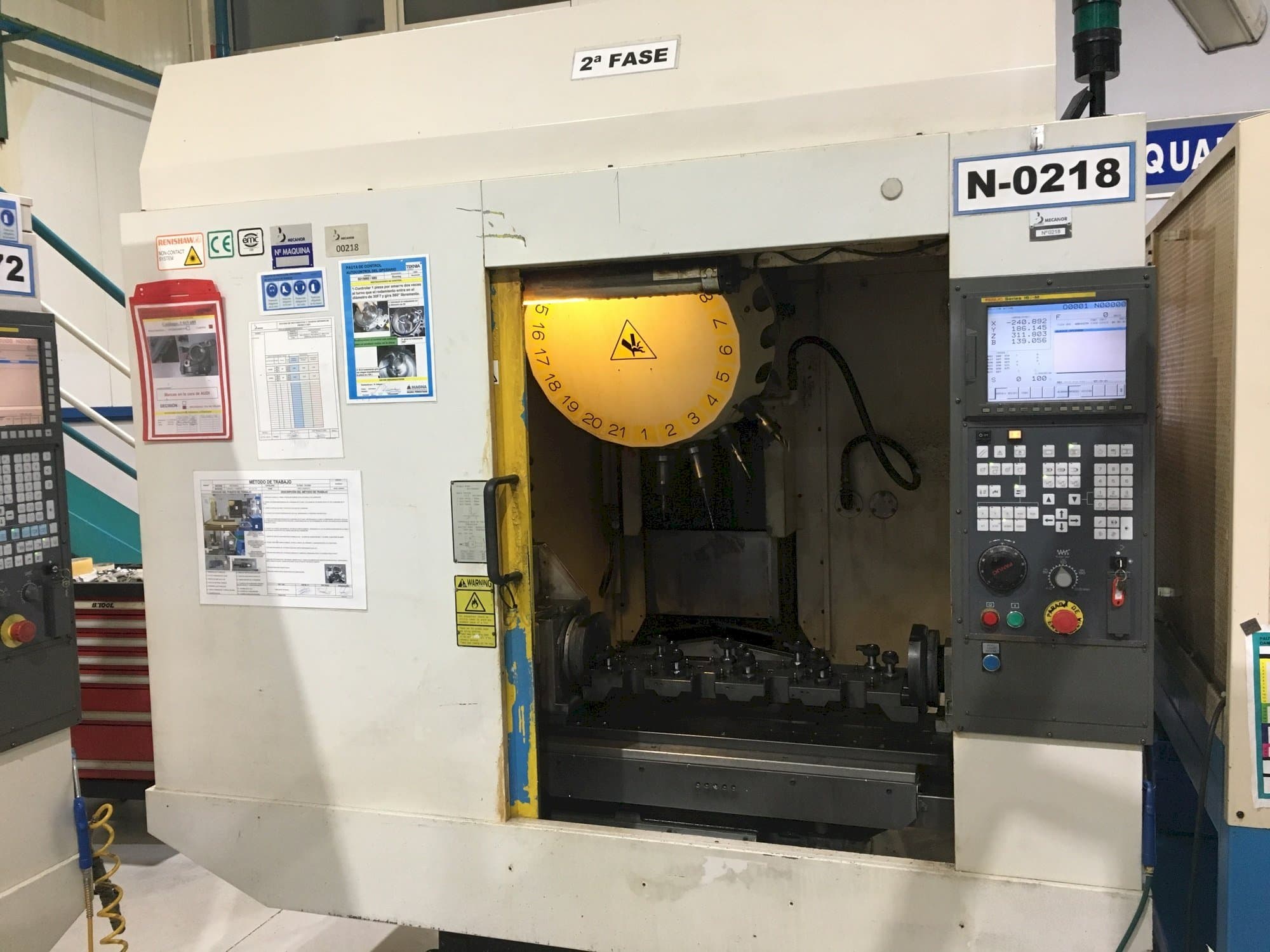

Front view of FANUC Robodrill alfa-T-21iDL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Robodrill alfa-T-21iDL

Photo Gallery

FANUC - Robodrill alfa-T-21iDLES-MIL-FAN-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FANUC Robodrill alfa-T-21iDL Milling Machine

Show in original language

This FANUC Robodrill alfa-T-21iDL Milling Machine was made in 2004 in Japan. Equipped with a FANUC Series 16i-M Control unit, this machine works with a spindle speed up to 15000 rpm. Several additional equipment is included with this machine.

Overview

brand: FANUC
year: 2004
MODEL: Robodrill alfa-T-21iDL
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC Robodrill alfa-T-21iDL

General Data

Measurements width: 2115 mm
Measurements depth: 2040 mm
Measurements height: 2600 mm
Machine weight: 2500 kg

Control Unit

Model: Series 16i-M
CNC main language: Spanish
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 15000 rpm 1/MIN

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 850 mm
Outer width: 410 mm

Tools

Slots in storage: 21
Type of tool holder: BT30

Media

Main electronic connection: 400 V

Additional Equipment

- 4th Axis Spirsin 81125.F/Ø170-H + Steady Rest SP125.F-Ø170-H
- Spirsin Steady Rest with 4-way hydraulic rotary distributor at 200 Bar
- Roemheld Hydraulic Power Unit Type 8400-244E (5L)
- Column uplift 100mm
- Transformer
- Laser Dectector tool break Renishaw RS
- Automatic door opening

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
