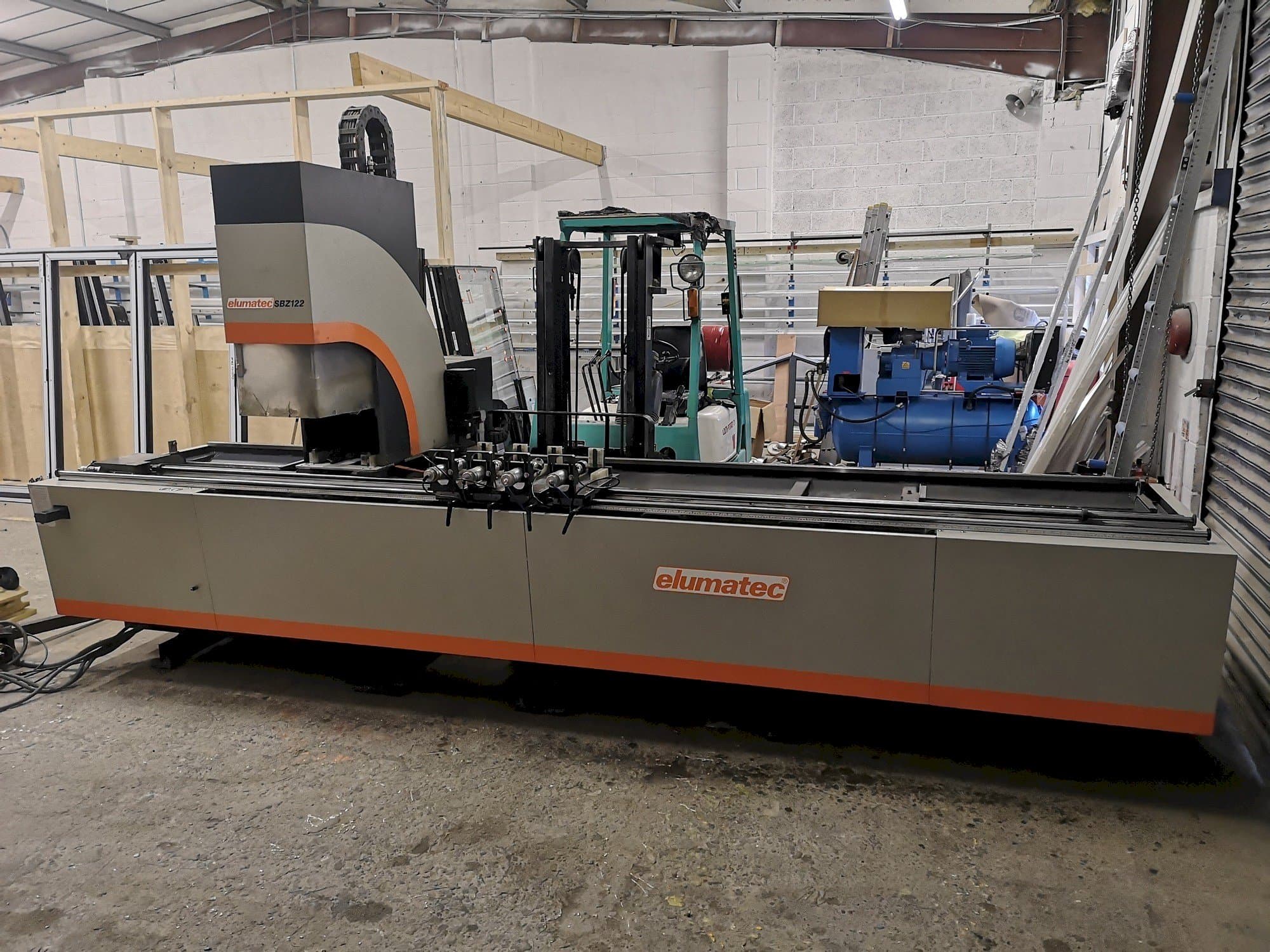

Elumatec SBZ 122/20 Vertical Machining Center

Show in original language

This Elumatec SBZ 122/20 Vertical Machining Center was built in 2007 in Germany. This machine can work with a spindle speed up to 21000 rpm. This model stands out for having a 3 sides of profile, and a single station.

Overview

brand: Elumatec
year: 2007
MODEL: SBZ 122/20
application type: Milling
Location: United Kingdom
machine type: Universal Machining Centre
availability: Sold

Technical Information - Elumatec SBZ 122/20

General Data

Measurements width: 4622.8 mm
Measurements depth: 1828.8 mm
Measurements height: 2489.2 mm
Machine weight: 1814.9 kg

Main drive

Spindle speed range: 21000 1/MIN
Spindle motor power: 8.5 HP

Movement

X-AXIS Movement: 3777 mm
X-AXIS Rapid traverse: 1,968"/Min
Y-AXIS Movement: 350.5 mm
Y-AXIS Rapid traverse: 1,176"/Min
Z-AXIS Movement: 279.4 mm
Z-AXIS Rapid traverse: 1,176"/Min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Horizontal pneumatic clamps 4
- - Machining 3 sides of profile, single station
- - Xyz axis controlled by 3-phase servo drive
- - With resolver & digital servo regulator
- - Electronic 3 axis industrial pc control with 2 axis as path control, disk drive, connection
- - Port for network (nic-card)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
