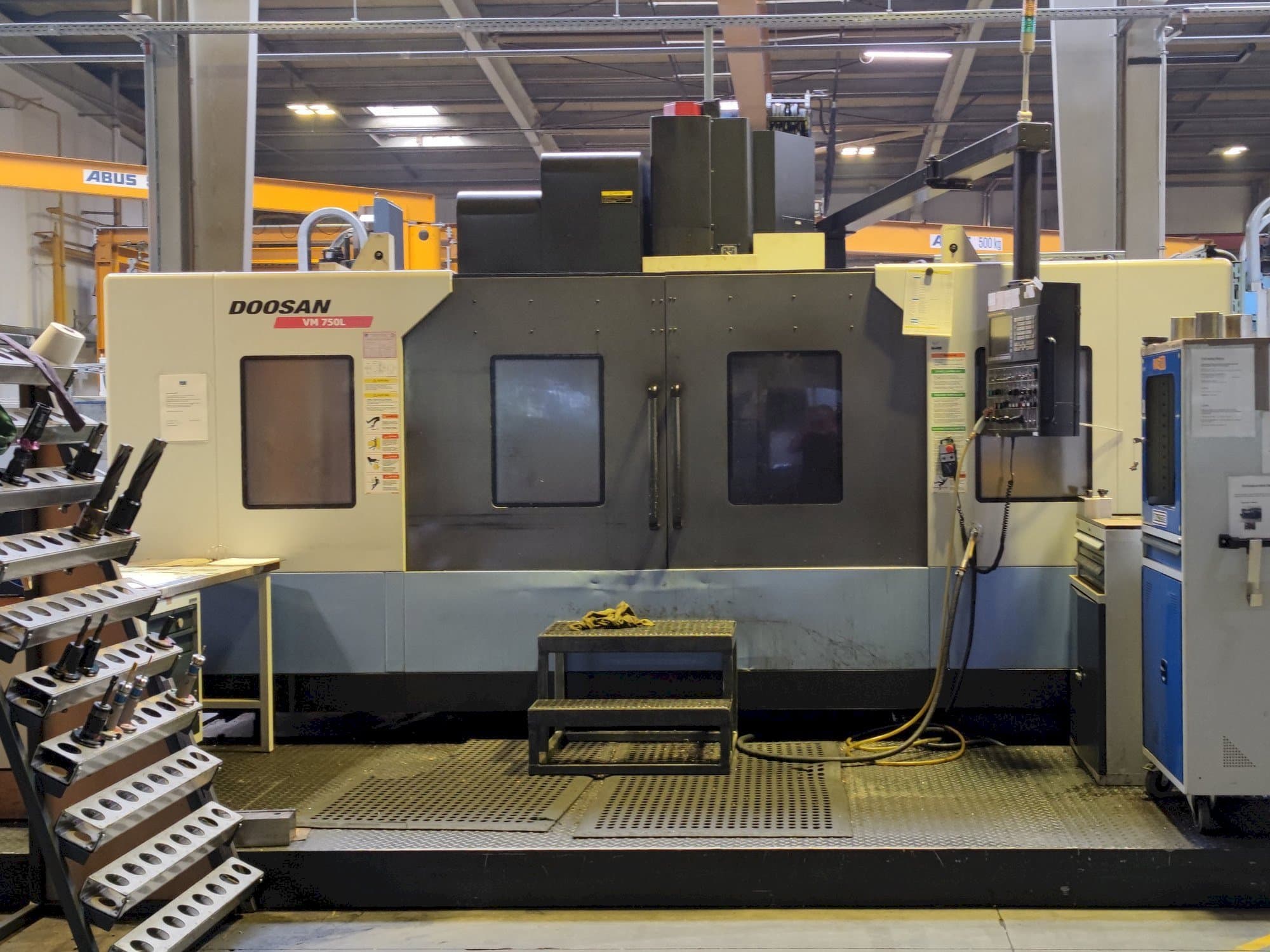

Doosan VM 750L Vertical Machining Center

Show in original language

This Doosan VM 750L Vertical Machining Center was manufactured in Korea in 2012. This 3-axis machine counts with a FANUC Series 31-iA control unit. It incorporates a spindle speed range of 30 - 6000 and a torque max of 562 nm. This machine includes its manual books.

Overview

brand: DOOSAN
year: 2012
MODEL: VM 750L
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN VM 750L

General Data

Measurements width: 5190 mm
Measurements depth: 5075 mm
Measurements height: 3545 mm
Machine weight: 15100 kg

Control Unit

Model: 31-iA
Brand: FANUC

Main drive

Spindle speed range: 30 - 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1800 mm
Y-AXIS Movement: 750 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 1900 mm
Outer width: 800 mm
Table load: 3500 kg

Tools

Max weight: 15 kg
Max tool diameter: 125 mm
Max tool length: 350 mm

Media

Pump drive power: 15 / 18,5 kW
Power consumption: 1,5 kW

Additional Information

Machine Benefits

Qualitative Machine Benefits

Number of magazine spaces 30 stk
Max. Tool diameter with free secondary stations 230 mm
Container capacity 480 l
Delivery rate 30 l/m
Delivery pressure 20 bar
Compressed air connection 6 bar
Connected load 60 kva
Voltage (+/-10%) 3 x 400 v
Frequency 50 hz

Technical Machine Benefits

Distance table - spindle nose 200mm - 1000mm
Ball screw diameter x-axis 50mm x 12mm
Ball screw diameter y-,z-axis 50mm x 10mm
Feed motor x-,y-axis 7 kw
Feed motor z-axis with brake 7 kw
Rapid traverse x, y, z axis 20 / 20 / 20 m/min
Feed x, y, z axis 1 - 10000 mm/min
Guided tours: hardened and ground flat guides in all axes
Torque max. 562 nm
Spindle cone a 50

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
