DOOSAN - DNM 4500CZ-MIL-DOO-2021-00001
112,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Doosan DNM 4500 - Vertical Machining Center
Show in original language

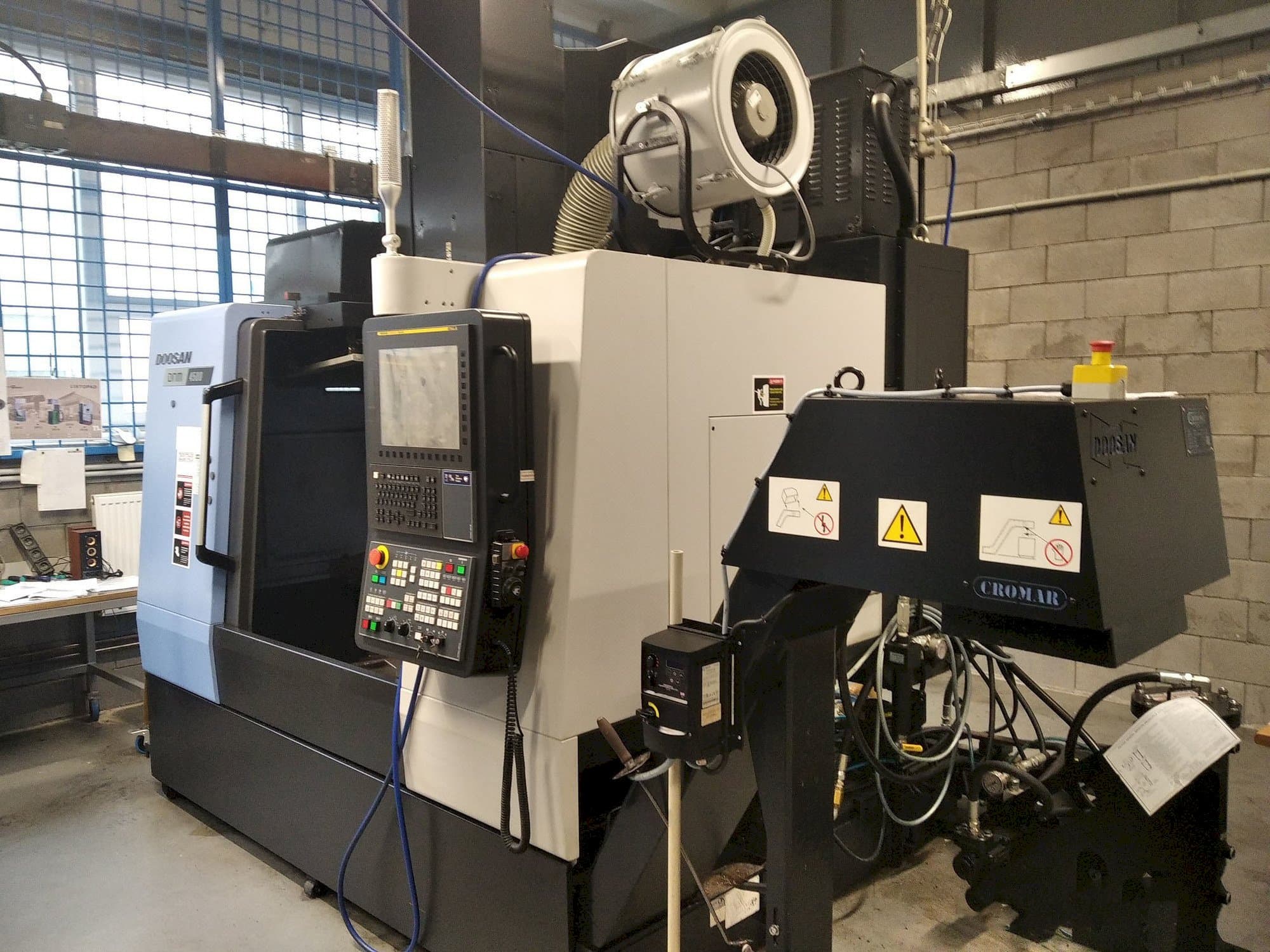

This Doosan DNM 4500 Vertical Machining center was manufactured in the year 2021 in South Korea. It is equipped with a Fanuc i-Series control unit and has 4 axis. The machine has a spindle speed of 12000 rpm.
Overview
- brand: DOOSAN
- year: 2021
- MODEL: DNM 4500
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: FANUC
Technical Information - DOOSAN DNM 4500
General Data
- Measurements width: 2158 mm
- Measurements depth: 2615 mm
- Measurements height: 2985 mm
- Machine weight: 5000 kg
Control Unit
- Model: i Series
- Brand: FANUC
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 450 mm
- Z-AXIS Movement: 510 mm
Table
- Outer length: 1000 mm
- Outer width: 450 mm
- TSlots size: 3
- Distance between: 125 mm
Tools
- Slots in storage: 60
- Max weight: 8 kg
- Max tool diameter: 80/125 mm
- Max tool length: 300 mm
- Type of tool holder: ISO 40
Additional Information
- Technical Machine Benefits:
- - 4th axis table diameter 250 mm
- - Min-max height under spindle 150-660 mm
- - Spindle motor power 11/18. 5 kw
- - Through spindle coolant 30-70 bar
- - Tool laser probe renishaw nc4
- - Workpiece probe renishaw omp-60
- Qualitative Machine Benefits:
- - Very good condition
- - Warranty until 6-2024
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Your account manager:
Borja Garcia
Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
Payment Terms
Payment in advance
Asset Financing
