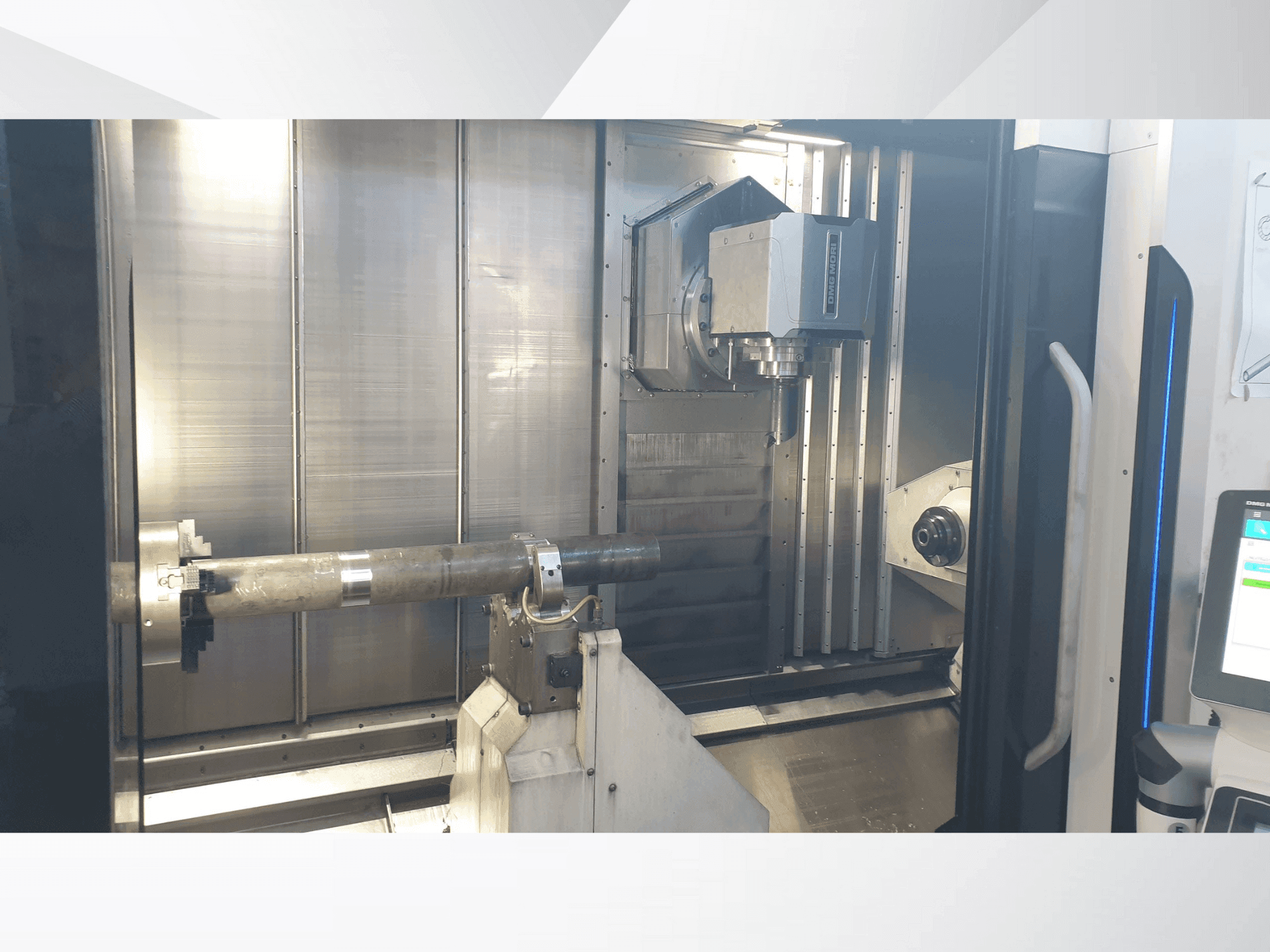

Front view of DMG MORI NTX 2500/1500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI NTX 2500/1500

Photo Gallery

DMG MORI - NTX 2500/1500SK-MIL-DMG-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI NTX 2500/1500 For Sale | gindumac.com

Show in original language

This 5-axis DMG MORI NTX 2500/1500 Turn-Mill Centre was manufactured in 2019. Ideal for complex machining tasks, it combines milling and turning capabilities in one machine. Consider the opportunity to buy this DMG MORI NTX 2500/1500 turn-mill Centre. Contact us for more information.

Overview

brand: DMG MORI
year: 2019
MODEL: NTX 2500/1500
application type: Milling
Location: Slovakia
machine type: Turn-Mill Centre

Technical Information - DMG MORI NTX 2500/1500

General Data

Measurements width: 2830 MM
Measurements depth: 5822 MM
Measurements height: 2745 MM
Machine weight: 18160 KG

Controller

Brand: FANUC
Model: F31iB5

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 26/22/15 kW (10%ED/40%ED/ cont)
Number of axis: 5

Movement

X-AXIS Movement: 675 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 1562 mm
B-AXIS Movement: 240° (±120°) MM

Tools

Slots in storage: 38

Media

Chip conveyor: Yes

Additional Equipment

- Automatic Centering Type Steady Rest: SLU-X3.1 (dia. 20-165mm), servo-driven
- Through-Spindle Coolant System (Turn-mill spindle) Interface for Super-high-pressure 70 Mpa (1015 psi), KNOLL
- Coolant Gun
- Oil Skimmer
- Interface for Mist Collector
- Manual In-Machine Tool Presetter
- In-Machine Measuring System (Turn-mill spindle) Touch Sensor (Radio Signal Transmission Type) RENISHAW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Through-spindle hole diameter: 91 mm
- - Swing over cross slide: 700 mm
- - Max. Turning length: 1616 mm
- - Turn-mill spindle max. Speed: 12000/min
- - Turn-mill spindle drive motor (<40%ed / cont>): 28 /23 kw
- - Spindle taper hole: capto c6
- - Built-in center: mt4

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
