DMG MORI CMX 50 U

Photo Gallery

DMG MORI - CMX 50 UGR-MIL-DMG-2021-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

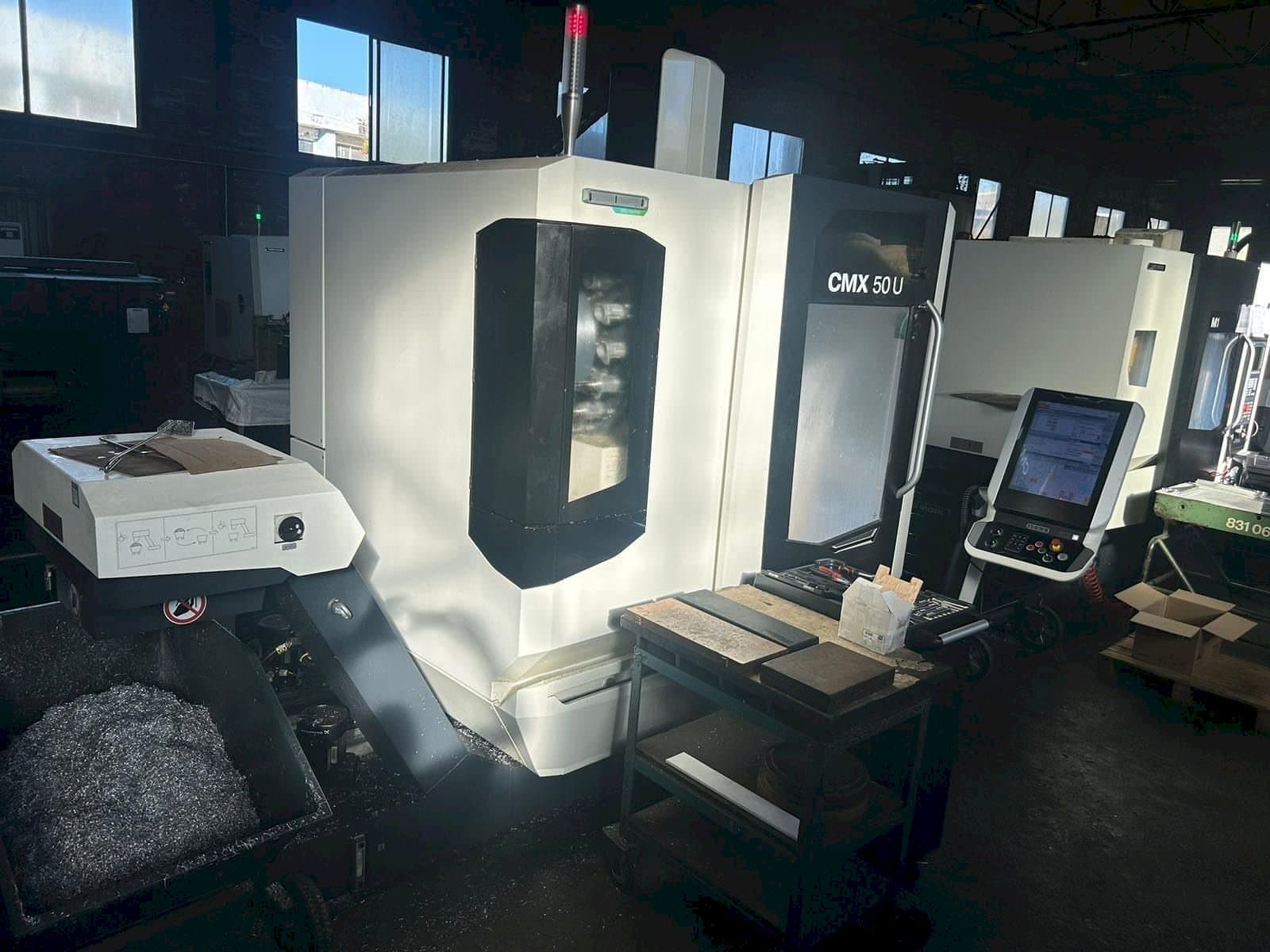

➤ Used DMG MORI CMX 50 U Universal Machining center

Show in original language

This DMG MORI CMX 50 U Universal Machining center was manufactured in the year 2021 in Poland and has 8115 production hours, of which 5436 are spindle hours. It is equipped with a SIEMENS DMG MORI SLIMline Multi touch control unit and has 3+2 axis. The machine has a spindle speed of 20-12000 rpm.

Overview

brand: DMG MORI
year: 2021
MODEL: CMX 50 U
production hours: 8115
application type: Milling
Location: Greece
machine type: Universal Machining Centre

Technical Information - DMG MORI CMX 50 U

General Data

Machine weight: 4700 kg

Control Unit

Model: SLIMline Multi Touch control

Main drive

Spindle speed range: 20- 12000 1/MIN
Number of axis: 3+2

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 400 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 3d control unit technology
- - Swivel rotary table powered b/c axes
- - Standard inline spindel, opt. Inlinemaster®
- - Tool magazine 30 pos
- - Rigidity, stability of the body
- - Dmg mori iotconnector included in standard
- - Table d 630x500
- - Rotary range b (-5°/+110°) / c (360°)
- - Rapid feed linear axes 30 m/min
- - Ac main drive: 13/9 kw (40/100% dc)
Qualitative Machine Benefits:
- - Tool taper sk40 din 69871
- - Tool clamping according to din69872
- - Tool magazine 30 places, chain with pockets and with double gripper
- - Direct measuring system x, y, z inclusive air purge for measuring system
- - Coolant air-blast changeover external switchable via m-function
- - Chip tank
- - Internal coolant supply 20 bar
- - Chip conveyor (scraper type) with tank capacity: 250 l
- - Bed and atc arm flushing via m-function
- - Coolant spray gun for swarf removal, external electronic handwheel, cabin roof, signal lamp with 4 colours, double cartridge filter for coolant

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
