DAEWOO ACE-HM 800 Milling

Show in original language

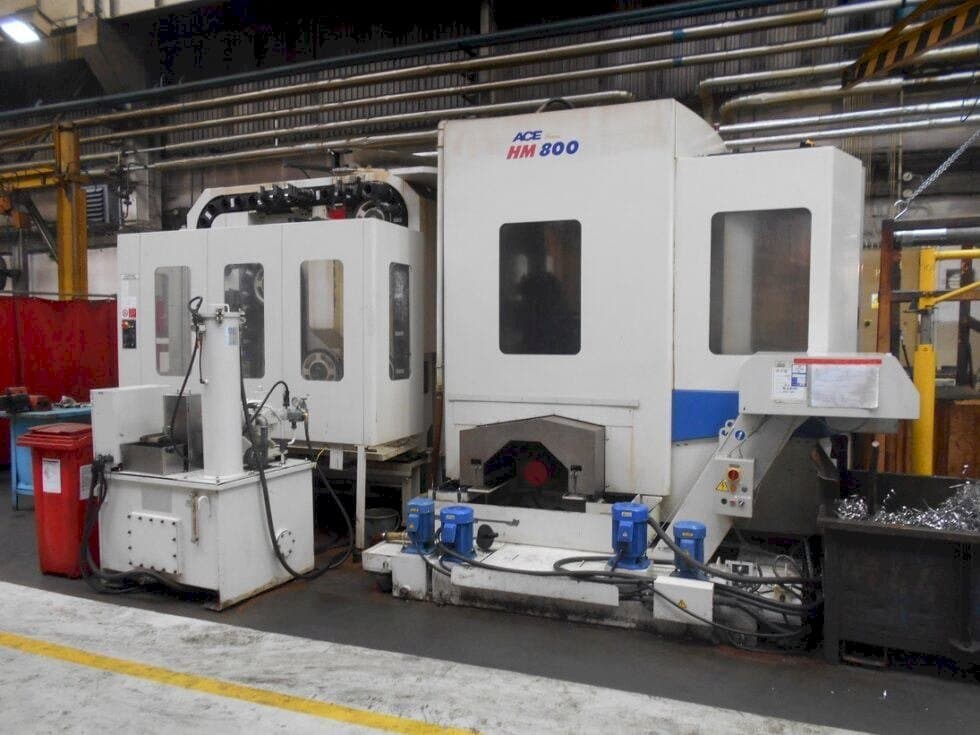

This DAEWOO ACE-HM 800 Horizontal Machine Center was manufactured in 2002 in South Korea. It is operated through a FANUC control unit. This 4 axis machine has a spindle speed up to 6000 rpm. It is in a very good working condition.

Overview

brand: DAEWOO
year: 2002
MODEL: ACE-HM 800
application type: Milling
Location: Czech Republic
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DAEWOO ACE-HM 800

Control Unit

Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 1600 kg

Table

Outer length: 800 mm
Outer width: 800 mm

Tools

Slots in storage: 60
Type of tool holder: ISO 50

Media

Power consumption: 64.25 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Industries: Auto parts

Machine Benefits

Technical Machine Benefits:
- - Cooling through spindle
- - Main motor power 22kw
- - Rapid feedrates (x, y, z) = 24 m / min
Qualitative Machine Benefits:
- - Machine in good working condition
- - Regularly serviced (including new spindle bearings, new bearing for pallet changing)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
