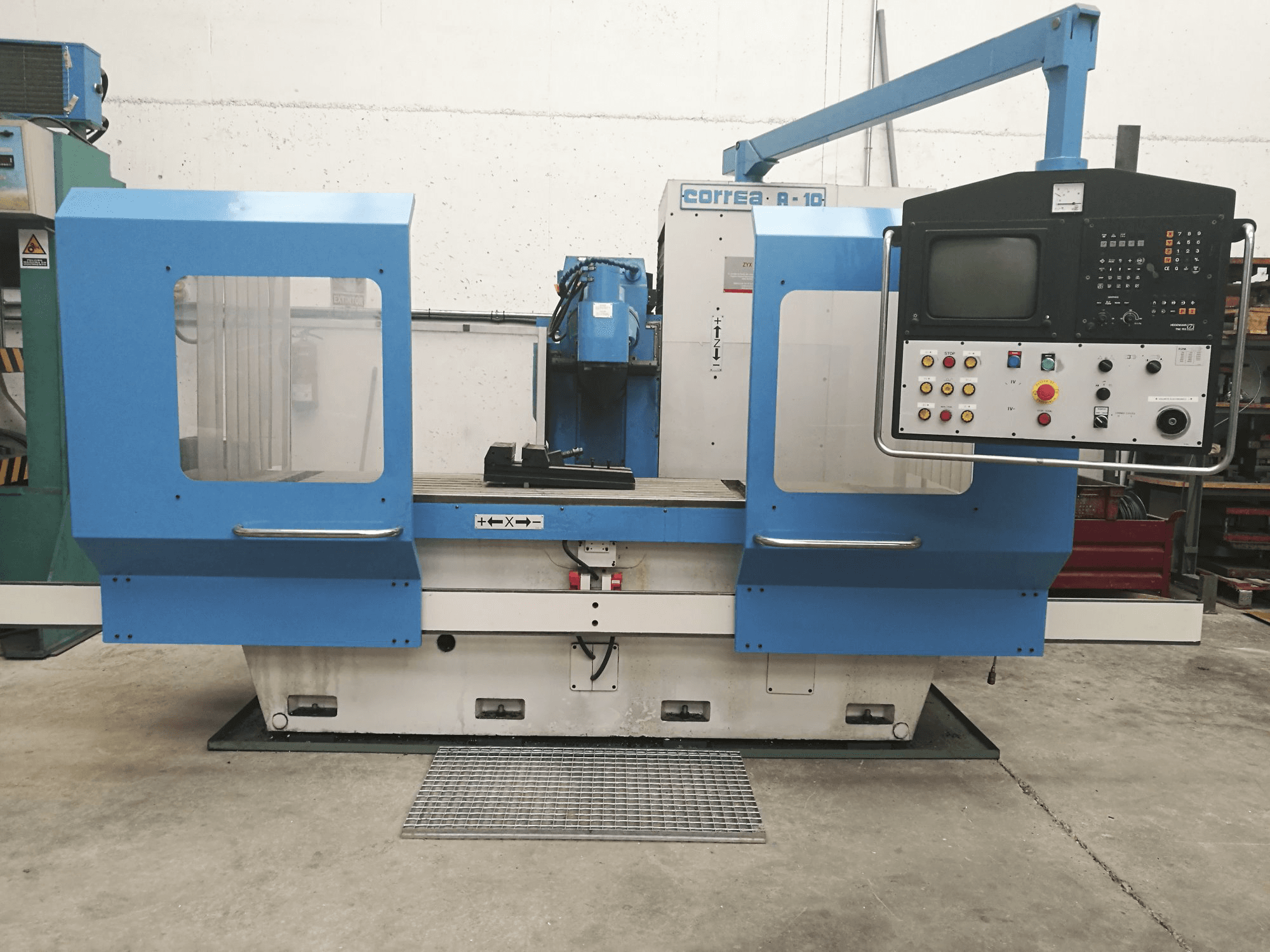

Correa A-10 Milling Machine

Show in original language

This Correa A-10 Milling Machine was manufactured in 1987, but received a retrofitting recently and has been productive for only 50 hours since then. During its retrofitting, this robust machine has received new guards all around and a new security certificate as well, and its tempered guides, for which this machine already stood out, have been hardened as well. As additional equipment, the Correa includes tools, cones and a gag.

Overview

brand: Correa
year: 1987
MODEL: A-10
production hours: 50
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Correa A-10

General Data

Measurements width: 3886 mm
Measurements depth: 2485 mm
Measurements height: 2175 mm
Machine weight: 6500 kg

Control Unit

Model: TNC 155
Brand: HEIDENHAIN

Movement

X-AXIS Movement: 1300 mm
X-AXIS Working Feed: 5000 mm/min
X-AXIS Rapid traverse: 8000 mm/min
Y-AXIS Movement: 630 mm
Y-AXIS Working Feed: 5000 mm/min
Y-AXIS Rapid traverse: 8000 mm/min
Z-AXIS Movement: 630 mm

Workpiece

Workpiece weight: 3000 kg

Table

Outer length: 1500 mm
Outer width: 630 mm
TSlots size: 18 mm
Number of tslots: 8
Distance between: 71 mm

Additional Equipment

- Tools, gag and cones

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
