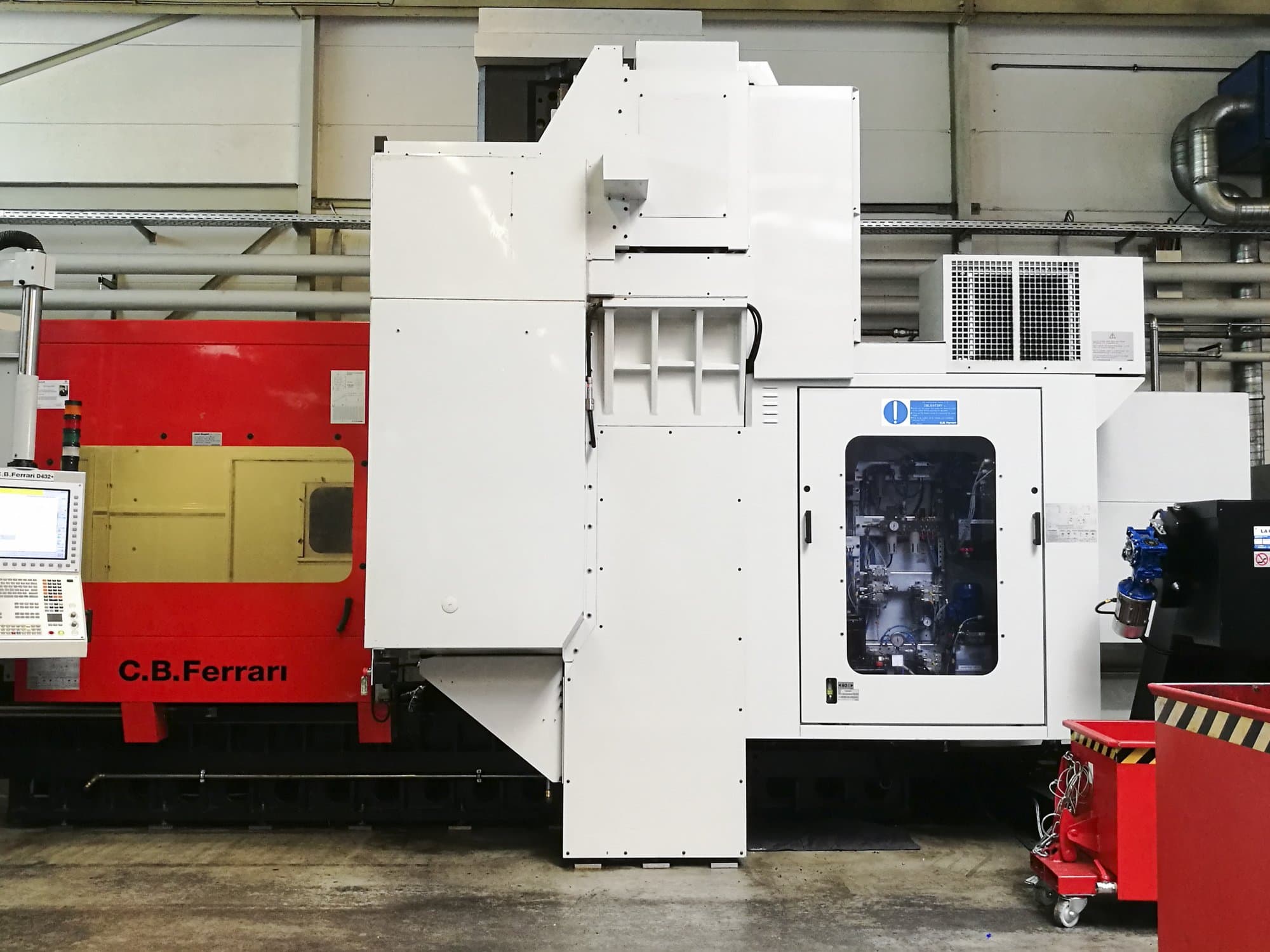

C.B. Ferrari D432

Photo Gallery

C.B. Ferrari - D432DE-MIL-C.B-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
C.B. Ferrari D432 Machining Center

Show in original language

This C.B. Ferrari D432 Machining Center was built in 2014 and constitutes the very promise of quality and reliability. This machine has a production record of 14891 working hours, of which 6534 hours correspond to its spindle, and operates through an HEIDENHAIN iTNC530 Control unit with remote control. This machine is equipped with its own internal cooling system and integrated 48-fold zero-point clamping system for maximum process efficiency, and stands out through its large working table (2500 x 1000 mm). In the past, this D432 has produced dies and molds for a variety of industries, and has received a careful maintenance by German producer.

Overview

brand: C.B. Ferrari
year: 2014
MODEL: D432
production hours: 14891
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - C.B. Ferrari D432

General Data

Measurements width: 8000 mm
Measurements depth: 6000 mm
Measurements height: 5200 mm
Machine weight: 20000 kg

Control Unit

Model: iTNC530
Remote control: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 24000 1/min
Tool taper: HSK 63

Movement

X-AXIS Movement: 3000 mm
X-AXIS Feed Force: 10000 kg
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 2200 mm
Y-AXIS Feed Force: 10000 kg
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 1000 mm
Z-AXIS Feed Force: 10000 kg
Z-AXIS Rapid traverse: 40 m/min

Table

Outer length: 2500 mm
Outer width: 1000 mm

Tools

Slots in storage: 60

Media

Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
