ZPS S-80/750 CNC

ZPS - S-80/750 CNCCZ-TUR-ZPS-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

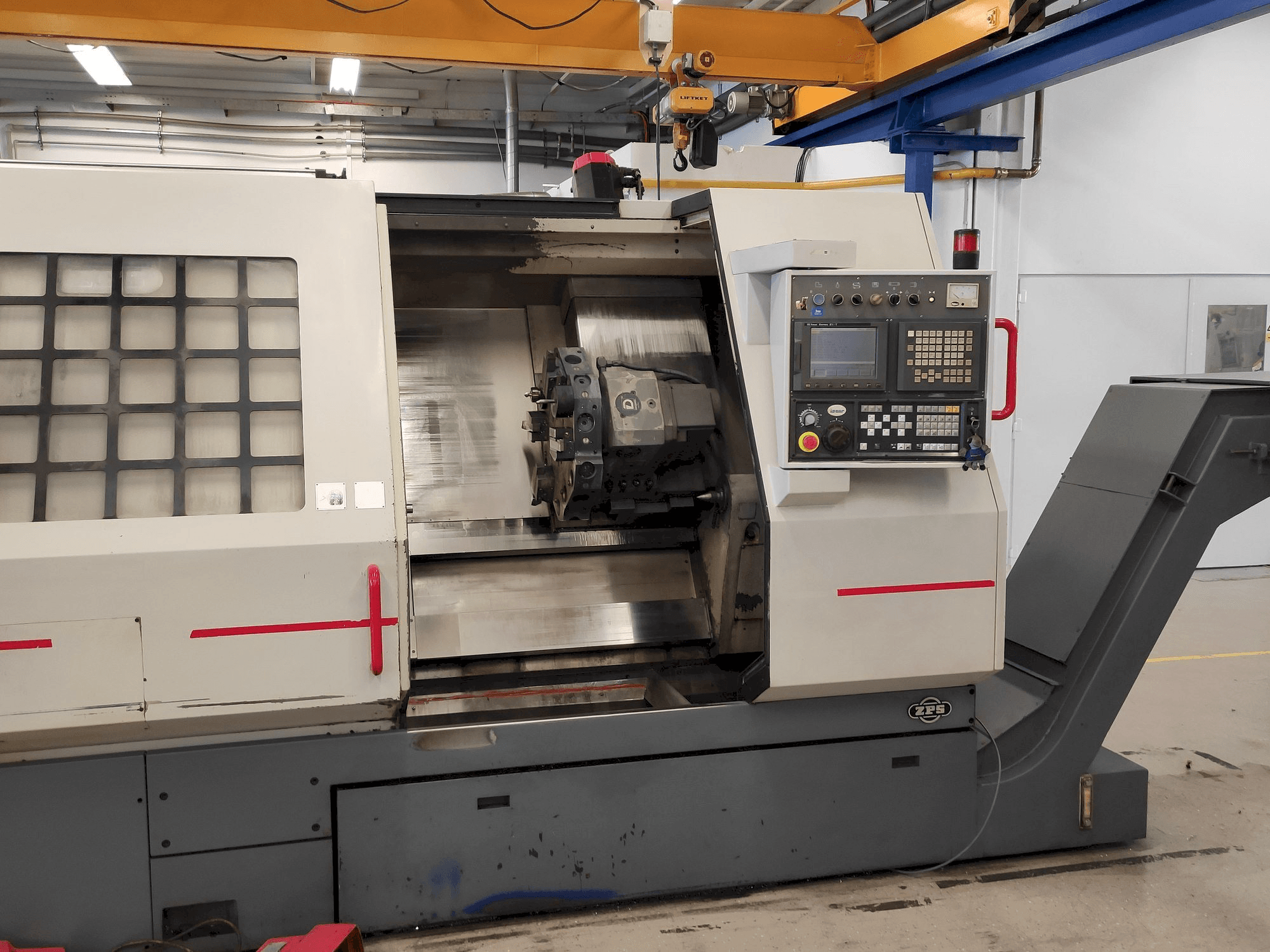

This ZPS S-80/750 CNC Lathe was made in the Czech Republic in the year 1999. This 2 axis machine is operated with a FANUC Series 21i-T control unit. It works with a spindle speed up to 3500 rpm and a cutting diameter 370 mm. This machine which is in good condition has been working in the mould and die industrie.

Overview

brand: ZPS
year: 1999
MODEL: S-80/750 CNC
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - ZPS S-80/750 CNC

General Data

Measurements width: 4950 mm
Measurements depth: 2230 mm
Measurements height: 2330 mm
Machine weight: 8600 kg

Control Unit

Model: Series 21i-T
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN
Spindle motor power: 22/26 kW (100/50%)
Spindle bore: 90 mm
Number of axis: 2

Movement

X-AXIS Movement: 275 mm
Z-AXIS Movement: 820 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Power consumption: 36 kva
Chip conveyor: Yes

Additional Information

Machine history

Industries: Mould & die

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 680 mm
- - Max. Cutting diameter 370 mm
- - Maximum cutting length 750 mm
- - Max. Bar diameter 80 mm
- - Tailstock quill stroke 150 mm, dia. 100 mm, morse m4
- - 3 jaw chuck, coolant
Qualitative Machine Benefits:
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
