HWACHEON - HI-ECO 450A YMCIT-TUR-HWA-2013-00001

Name: HWACHEON HI-ECO 450A YMC
Brand: HWACHEON
SKU: IT-TUR-HWA-2013-00001
Price: 71000 EUR
Availability: InStock

71,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HWACHEON HI-ECO 450A YMC Lathe

Show in original language

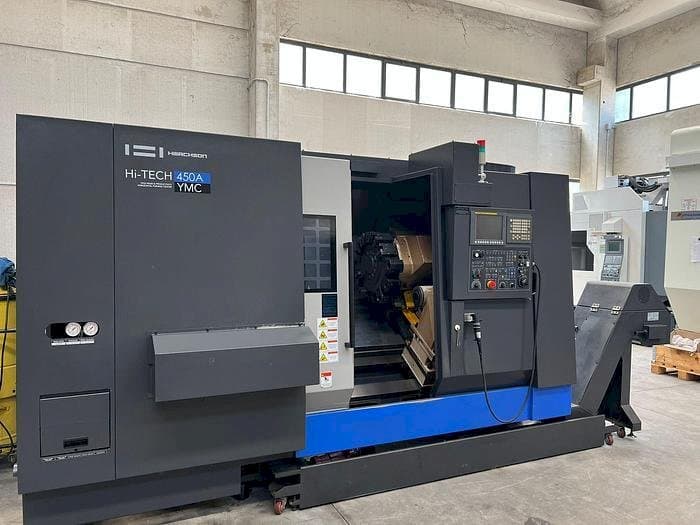

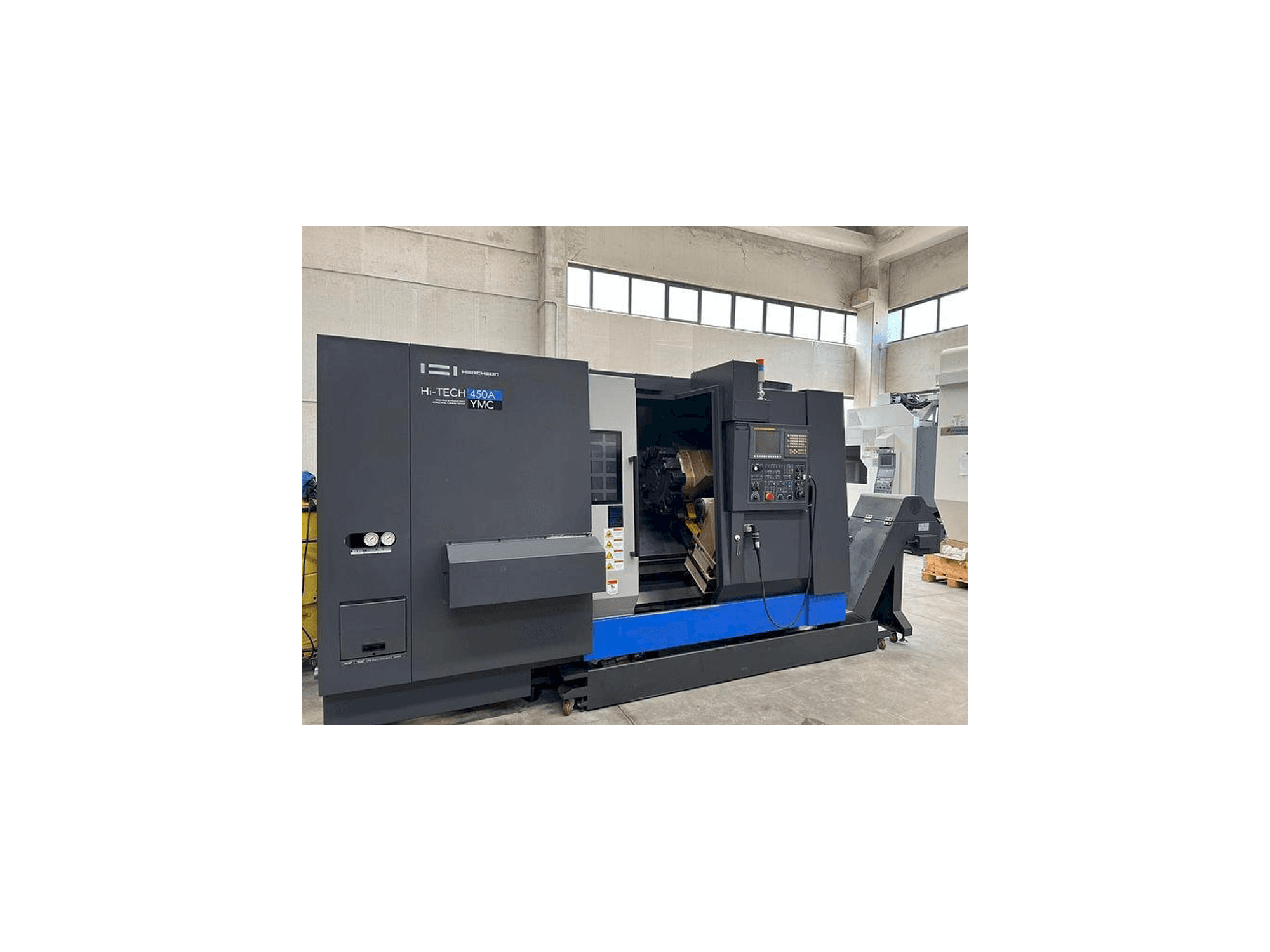

This Hwacheon HI-ECO 450A YMC lathe was manufactured in 2013. It features a Fanuc 0i-TD control, a spindle speed of 3,500 rpm, and a spindle power of 22/18.5 Kw. The machine offers a maximum rotating diameter of Ø 700 mm and a workable length of 637 mm. It includes a tool turret with 12 live tool positions and a chip evacuator. For more information about this lathe, please reach out to us.

Overview

brand: HWACHEON
year: 2013
MODEL: HI-ECO 450A YMC
production hours: 23101
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - HWACHEON HI-ECO 450A YMC

Control Unit

Model: 0i-TD
Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 22 / 18.5 Kw

Movement

X-AXIS Movement: 280 mm
Y-AXIS Movement: ± 60 mm
Z-AXIS Movement: 790 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Several holders included
Accessories chip evacuator

Technical Machine Benefits

Max. Rotating diameter Ø 700 mm
Max. Rotating diameter on pallet Ø 550 mm
Turning diameter Ø 254-420 mm
Max length workable 637 mm
Self-centering diameter Ø 250 mm
Spindle connection asa 2-8
Spindle hole Ø 90 mm
Bar passage Ø 76 mm
Indexing 0. 001 °
Tool turret with 12 live tool positions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
