Yang ML - 25A

Photo Gallery

Yang - ML - 25ANL-TUR-YAN-1996-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Yang ML - 25A Lathe

Show in original language

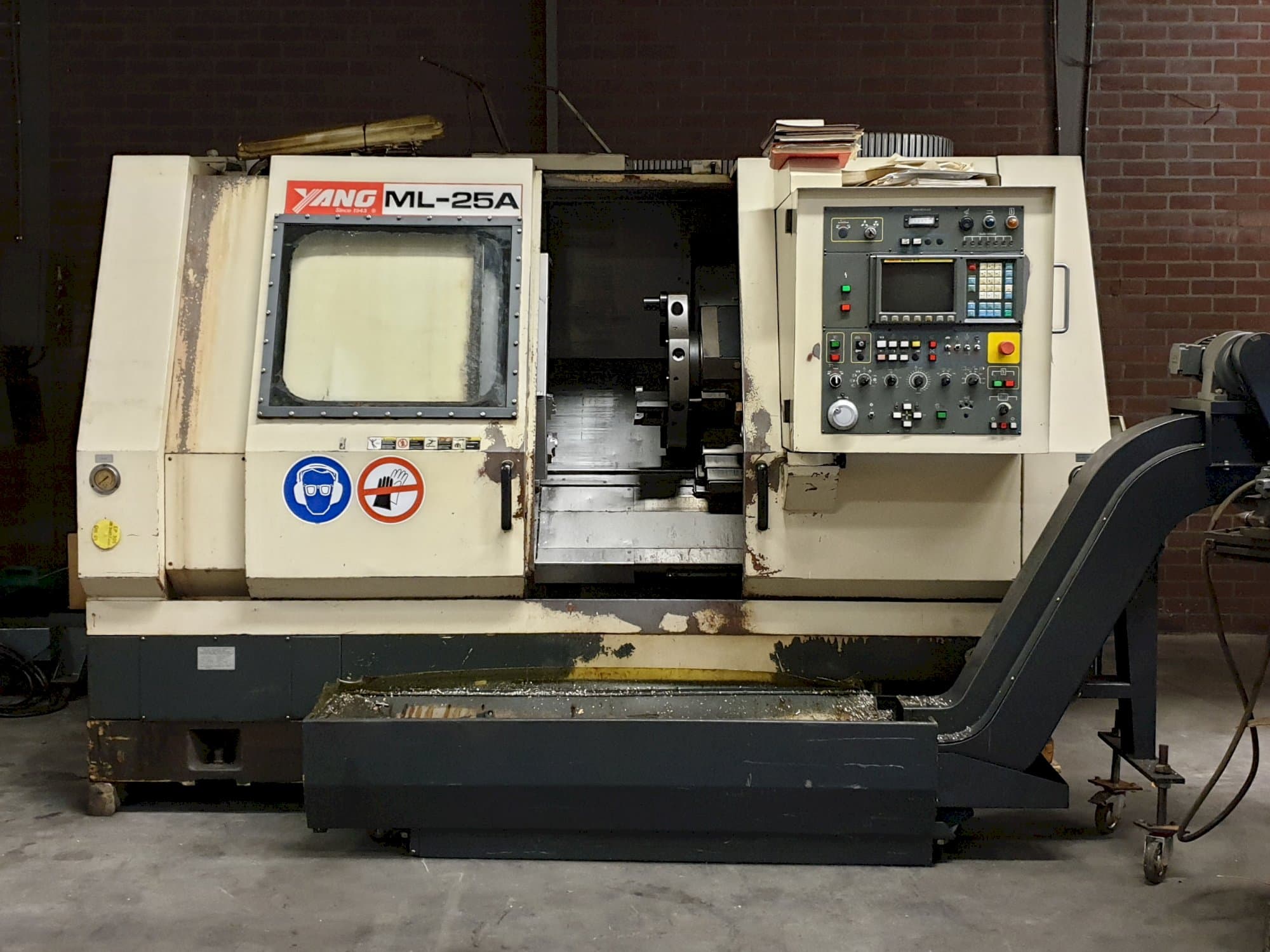

This Yang ML - 25A Lathe from 1996 was made in Taiwan and has a working record of 17000 working hours. Equipped with a FANUC Series 0-T Control unit and an automatic software, this machine incorporates a high turret spindle power with a capacity up to 4500 rpm. During the past, it has mainly worked with steel for the production of autoparts.

Overview

brand: Yang
year: 1996
MODEL: ML - 25A
production hours: 17000
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Yang ML - 25A

General Data

Measurements width: 4000 mm
Measurements depth: 2000 mm
Measurements height: 2200 mm
Machine weight: 5000 kg

Control Unit

Model: Series 0-T
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 45 - 4500 rpm 1/MIN

Movement

X-AXIS Movement: 216 mm
Y-AXIS Movement: 520 mm

Workpiece

Workpiece drm: 250 mm
Workpiece x: 20 m/min MM
Workpiece z: 12 m/min MM

Turret

Number of turrets: 1

Tools

Slots in storage: 8
Max tool diameter: 85 mm
Type of tool holder: VDI40

Media

Main electronic connection: 380 V
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
