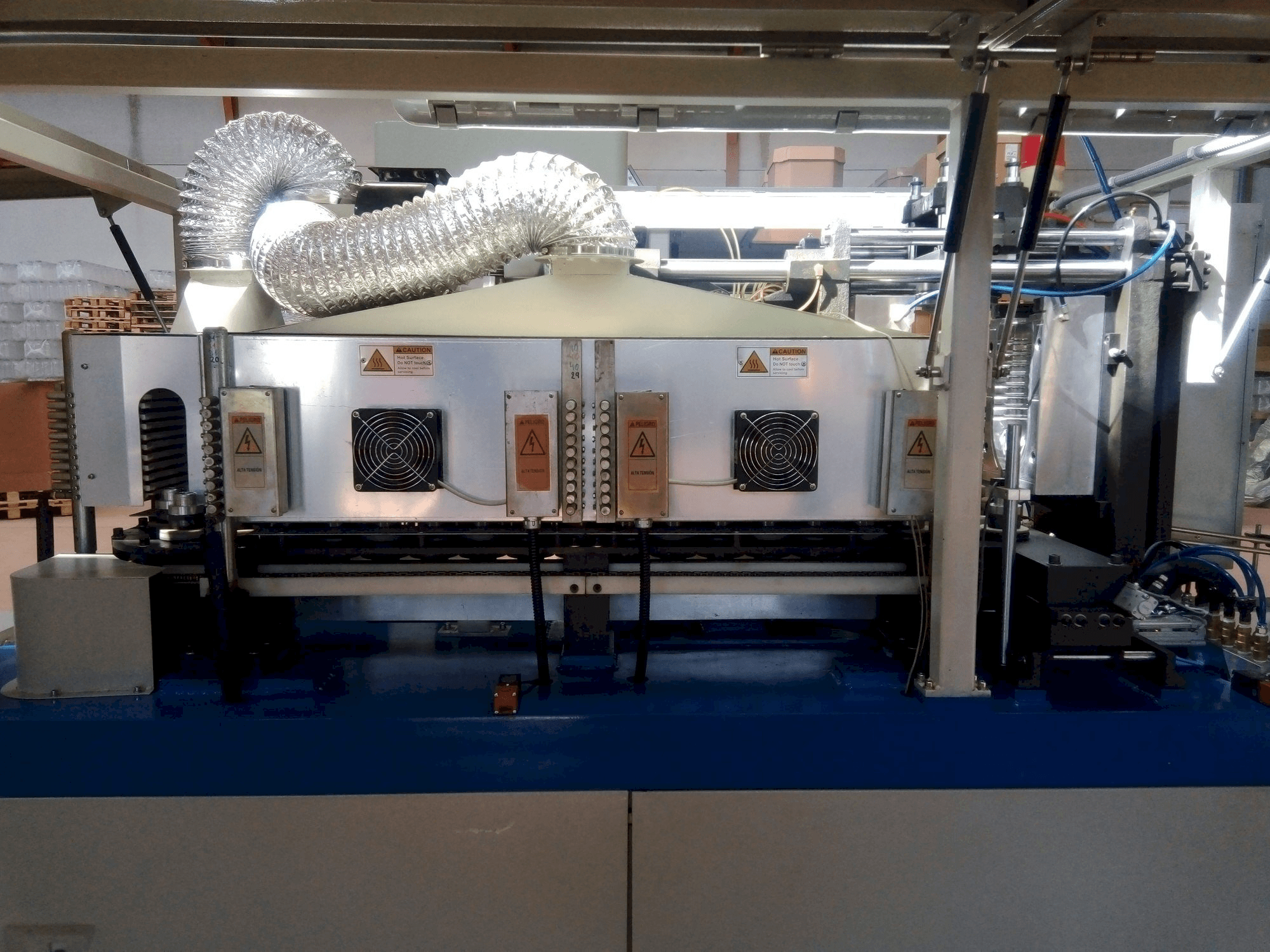

This YANCED YS600 Blow Moulding Machine was manufactured in the year 2015 in Spain. The machine has a clamping force of 180 kN.
Overview
- brand: YANCED
- year: 2015
- MODEL: YS600
- application type: Blow Molding
- Location: Spain
- machine type: Blow Moulding Machine
- availability: Immediately
Technical Information - YANCED YS600
General Data
- Measurements width: 2000 mm
- Measurements depth: 1200 mm
- Measurements height: 1900 mm
- Machine weight: 2000 kg
Clamping unit
- Clamping force: 180 kN
Additional Information
- Technical Machine Benefits:
- - Maximum mould opening 230 mm
- - Max. Mould width 260 mm
- - Stretching stroke 453 mm
- - Mould bottom stroke 60 mm
- - Number of cavities 1
- - Max. Container volume 5 ltr.
- - Container neck diameter 015-080 mm
- - Maximum container diameter 200 mm
- - Maximum container height 350 mm
- - Heating power 30 kw
- Qualitative Machine Benefits:
- - Total installed power 33 kw
- - Operating pressure 0. 8 mpa
- - Blowing pressure 3. 2 mpa
- - Cooling water temp. 10-12 °c
- - Cooling water flow rate 30 l/min
- - Cooling water pressure 0. 3-0. 5 mpa
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
