- EXTRAPLAST 140to Blow Moulding machine

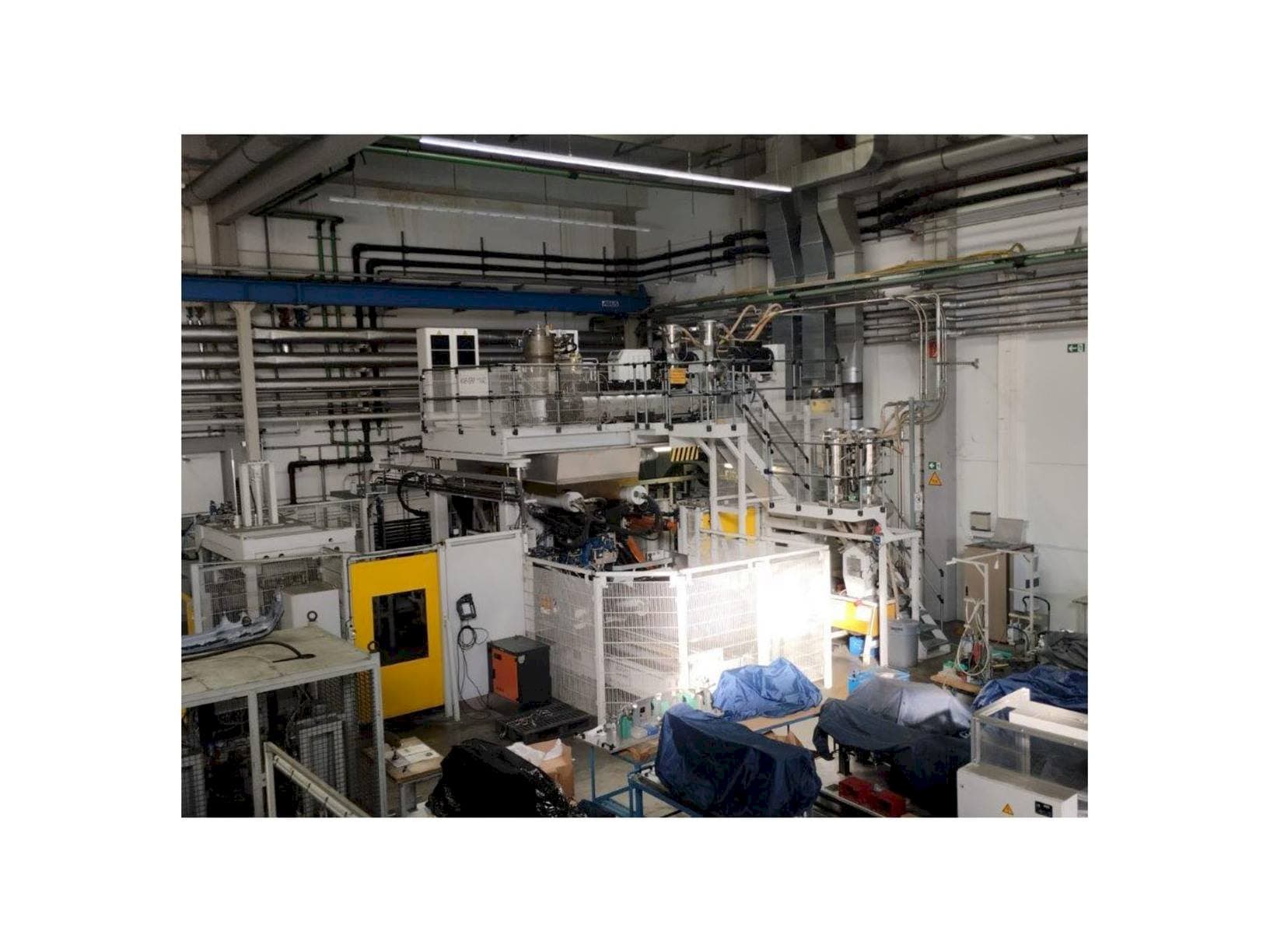

This EXTRAPLAST 140to Blow Moulding machine was manufactured in the year 2015. It is equipped with a it-AUTEC Blow Control. The machine has a clamping force of 1400 kN. See tech specs details in attached PDF (German).
Overview
- brand: EXTRAPLAST
- year: 2015
- MODEL: 140to
- application type: Blow Molding
- Location: Germany
- machine type: Blow Moulding Machine
Technical Information - EXTRAPLAST 140to
Control Unit
- Model: Blow Control
Injection Unit
- Screw diameter: 120 mm
Clamping unit
- Clamping force: 1400 kN
- Opening stroke: 1000 mm
- Max open daylight: 1800 mm
- Mould height min: 2x 400 mm
Additional Information
- Technical Machine Benefits:
- - Blow head
- - Extruder
- - Nozzles dm
- - Output: hdpe 690 kg/h, abs 450-500 kg/h
- - Two control panels special features: 14 liter accumulator head, spiral distributor, internally coated 120-400mm 2x120/25
- - Designed for blowing pressures up to 30 bar (for optical requirements, suitable for rear spoiler production, among other things) - fully and semi-automatic operation possible (manual removal, insertion of inserts, etc. )
- - Operation as a single-station system possible
- - Double station operation with two wds programs possible
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
