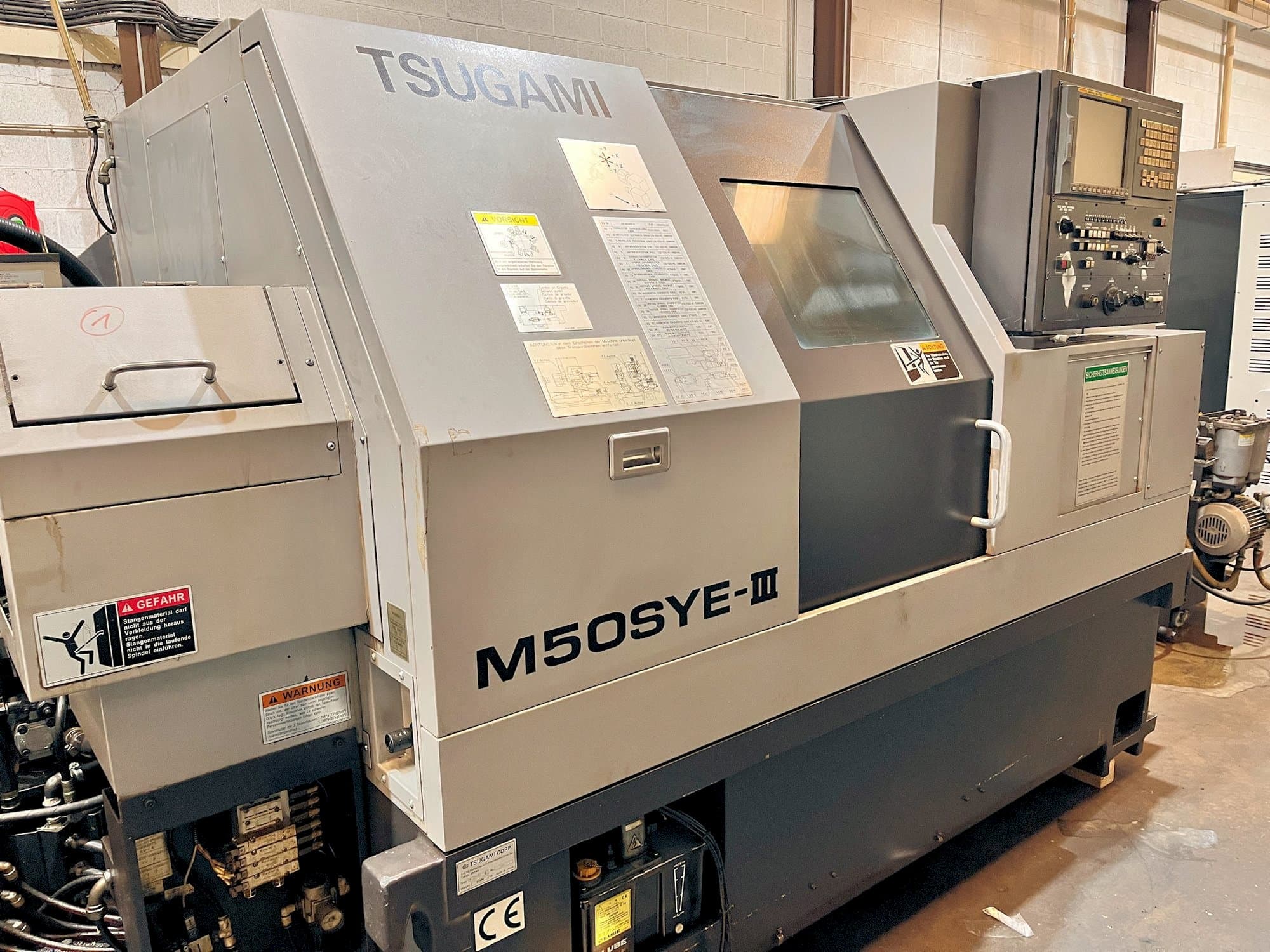

Front view of TSUGAMI M50SYE-III machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TSUGAMI M50SYE-III

Photo Gallery

TSUGAMI - M50SYE-IIIGB-TUR-TSU-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
TSUGAMI M50SYE-III lathe machine

Show in original language

This TSUGAMI M50SYE-III lathe machine was manufactured in 2007 in Japan. It is operated through a FANUC Series 18i-TB control unit. This 6 axis can work with a spindle speed up to 6000 rpm.

Overview

brand: TSUGAMI
year: 2007
MODEL: M50SYE-III
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - TSUGAMI M50SYE-III

General Data

Measurements width: 3710 mm
Measurements depth: 1560 mm
Measurements height: 1720 mm
Machine weight: 6500 kg

Control Unit

Model: Series 18i-TB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 11/7.5KW
Number of axis: 6

Movement

X-AXIS Movement: 170 mm
X-AXIS Rapid traverse: 20 m/min
Y-AXIS Movement: +/- 50 mm
Y-AXIS Rapid traverse: 10 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 24 m/min
B-AXIS Rapid traverse: 24 m/min

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum cutting diameter: 150 mm
- - Maximum cutting length: 320 mm
- - Bar capacity: 51 mm
- - 6 controlled axes (x, z, y, c1, c2, b)
- - C axis: 0. 001 degree (both spindles)
- - Sub spindle motor speed: 11/7. 5kw, 6000 rpm
- - Sub spindle stroke: 520 mm
- - Tooling, swarf conveyor, parts conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
