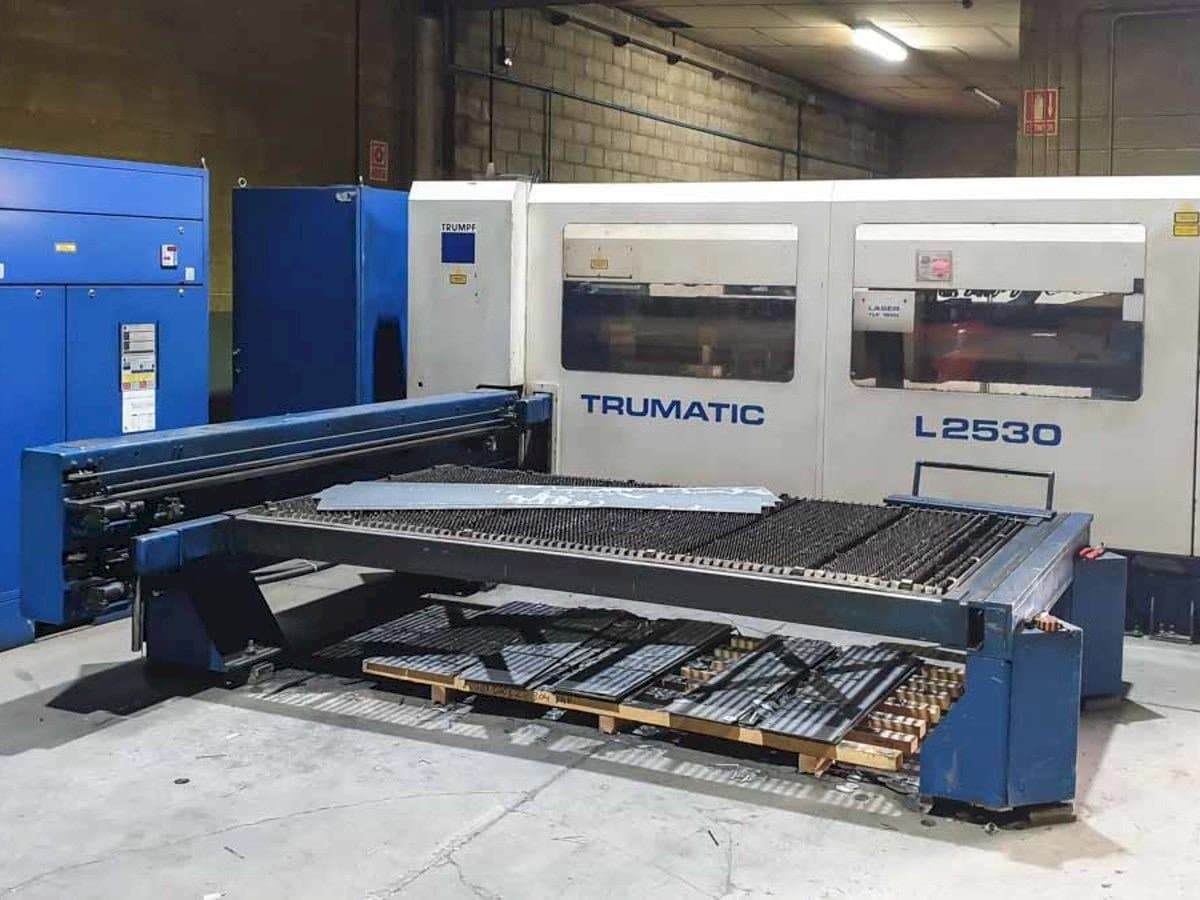

Front view of Trumpf Trumatic L2530 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L2530

Photo Gallery

TRUMPF - Trumatic L2530ES-LAS-TRU-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Pre-Owned Trumpf Trumatic L2530 Laser Cutting Machine

Show in original language

This Trumpf Trumatic L2530 Laser Cutting Machine was manufactured in 1998 in the United States. it is equipped with a Siemens Sinumerik 840 D control unit. This machine can operate with a laser power of 1,8 kW. In 2018 the turbine was changed and all the air and water pipes were changed.

Overview

brand: TRUMPF
year: 1998
MODEL: Trumatic L2530
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L2530

General Data

Measurements width: 5900 mm
Measurements depth: 6500 mm
Measurements height: 2000 mm
Machine weight: 7000 kg

Control Unit

Model: Sinumerik 840 D
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Laserpower: 1,8 kW

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1250 mm
Workpiece z: 115 mm

Max Material thickness

Steel: 12 mm
Stainless steel: 4 mm
Aluminum: 3 mm

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Qualitative Machine Benefits

In 2018 the turbine was changed and all the air and water pipes were changed.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
