Bodor - i5DE-LAS-BOD-2021-00001

Name: Bodor i5
Brand: Bodor
SKU: DE-LAS-BOD-2021-00001
Price: 35000 EUR
Availability: InStock

35,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Bodor i5 - Laser Cutter For sale | gindumac.com

Show in original language

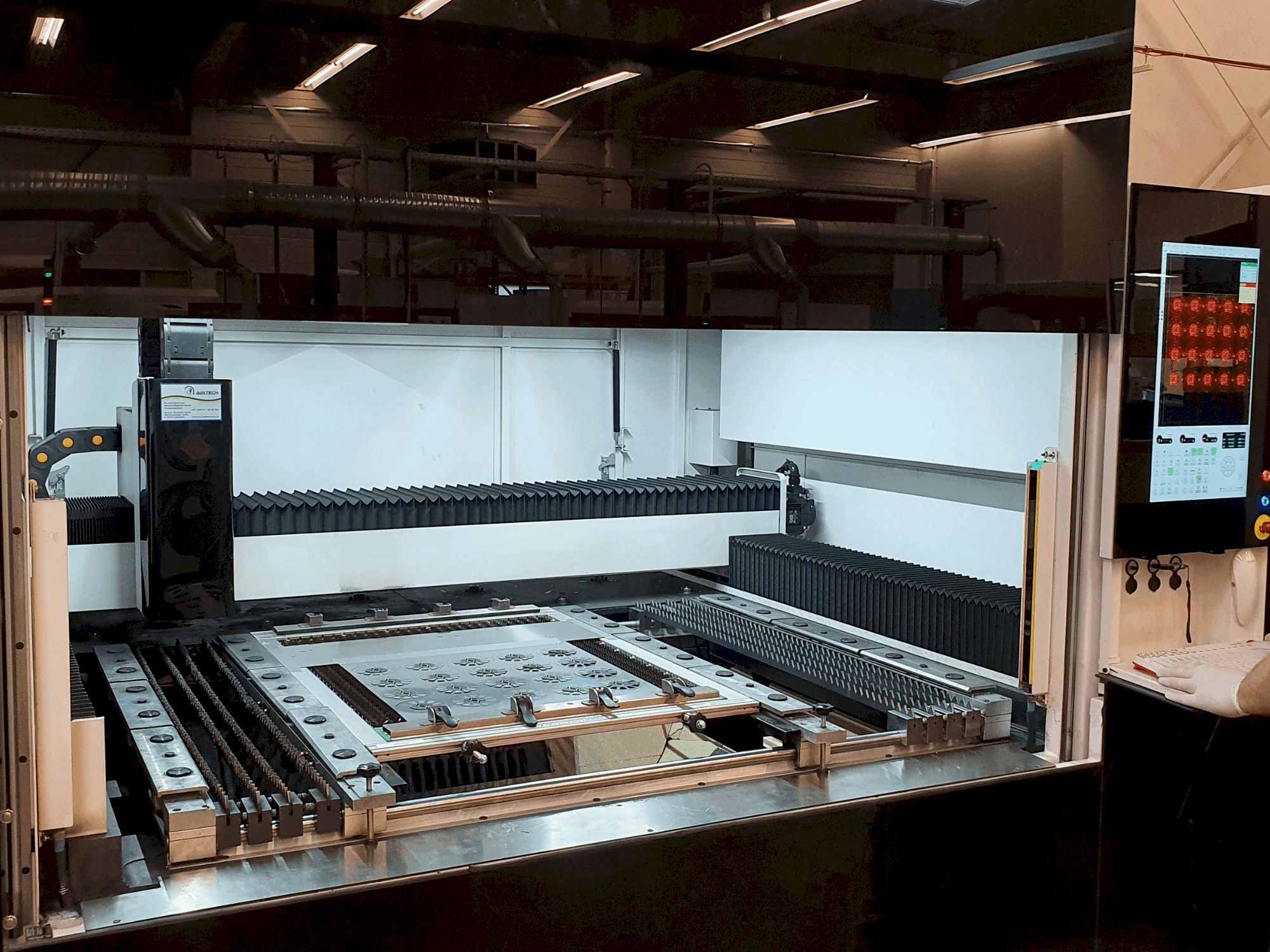

This Bodor i5 was manufactured in 2021. A robust laser cutting machine, it features a working area of 1500 × 1000 mm and can handle a maximum workpiece weight of 300 kg. It boasts a maximum laser power of 2 kW, efficiently cutting through carbon steel up to 15 mm, and stainless steel or aluminium up to 6 mm. Ideal for precision work with its Bodor Genius laser head and Bodor Pro 2.0+ software. For more information about this laser cutting machine, please reach out to us.

Overview

brand: Bodor
year: 2021
MODEL: i5
production hours: 672
application type: Cutting
Location: Germany
machine type: Fiber Laser Cutting Machine
control unit brand: BODOR

Technical Information - Bodor i5

General Data

Measurements width: 2200 mm
Measurements depth: 2630 mm
Measurements height: 1940 mm
Machine weight: 3000 kg

Control Unit

Brand: BODOR
Model: Pro 2.0

Main drive

Laserpower: 4 kW
Number of axis: 2

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 250 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 12 mm

Media

Power consumption: 16 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working area (mm): 1000 × 1500
- - Max. Simultaneous speed (m/min): 60
- - Positioning accuracy (mm): 0. 03
- - Repositioning accuracy (mm): 0. 02
- - Screen size (inches): 21. 5
- - Max. Sheet thickness (brass, mm): 8
- - Pneumatic clamping: optional
- - Laser source: max / ipg
- - Laser head: bodor genius
- - Software: bodor pro 2. 0 * lands*

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
