➤ Used Baykal BLE PRO 1530 For Sale | gindumac.com

Show in original language

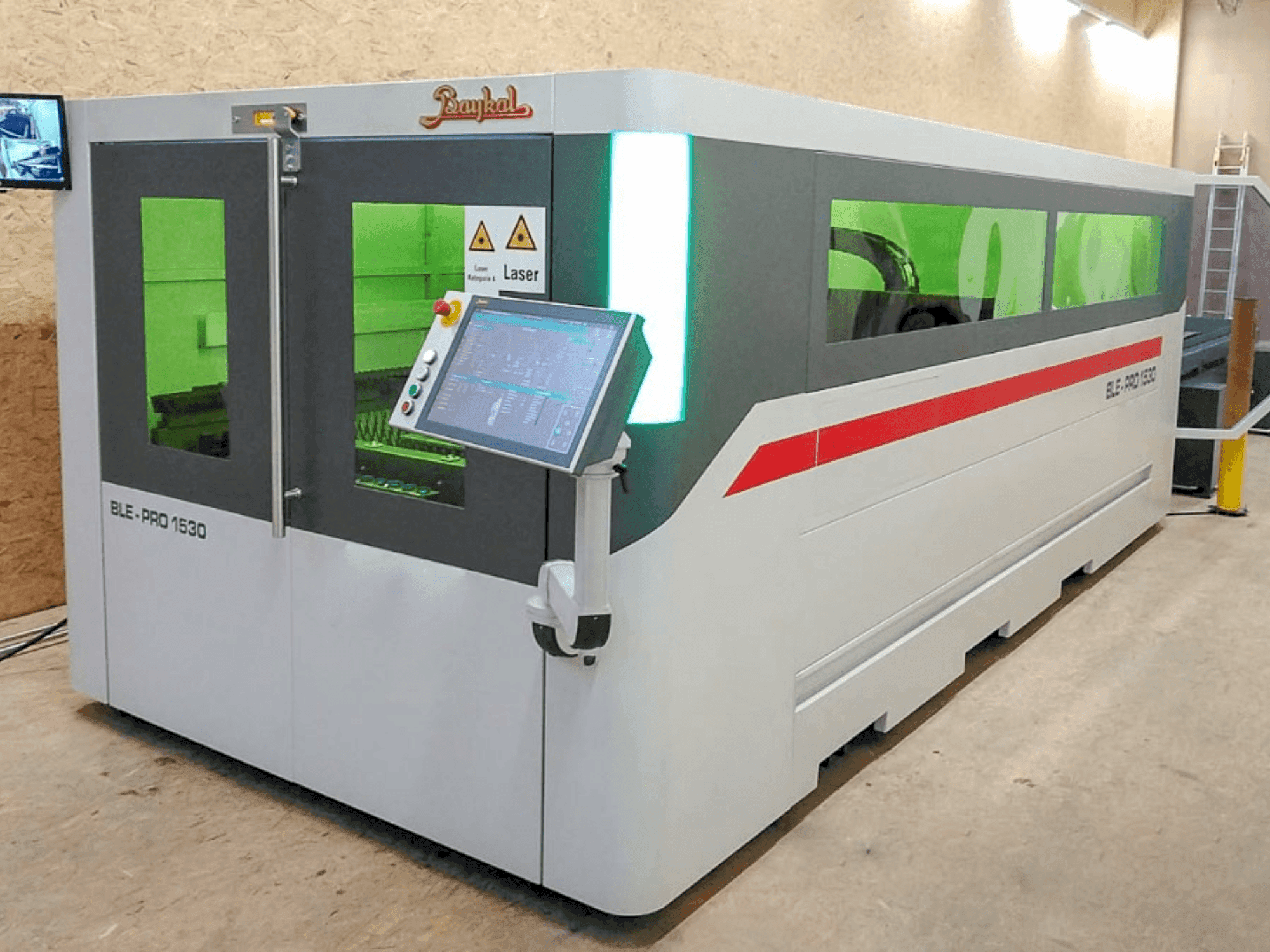

This 3-axis Baykal BLE PRO 1530 was manufactured in 2022. It features a 4kW nLIGHT alta fiber laser source, Precitec cutting heads, and a BECKHOFF CNC control unit. The machine offers a maximum cutting width of 1500 mm and length of 3000 mm, with rapid traverse speeds up to 95 m/sec. Ideal for precision cutting, the Baykal BLE PRO 1530 fiber laser cutting machine we have for sale is equipped with dual circuit water cooling and an air-conditioned electrical cabinet. Contact us for more information.

Overview

brand: Baykal
year: 2022
MODEL: BLE PRO 1530
production hours: 0
application type: Cutting
Location: Hungary
machine type: Fiber Laser Cutting Machine
control unit brand: BECKHOFF

Technical Information - Baykal BLE PRO 1530

General Data

Measurements width: 1500 mm
Measurements depth: 3000 mm

Control Unit

Brand: BECKHOFF

Main drive

Laserpower: 4kW
Number of axis: 3

Movement

X-AXIS Rapid traverse: 95 m/sec
Z-AXIS Rapid traverse: 95 m/sec

Additional Equipment

- Precitec cutting heads
- nLIGHT alta fiber laser source
- Autofocus cutting head Precitec ProCutter 2.0
- Built-in sectional dust and smoke extraction 4000 m3/h
- 2 camera surveillance system
- UPS uninterruptible power source
- Nesting software: Lantek Expert Cut II/ Metalix Autonest Pro (option)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X-axis: related to max. Cutting width 1500 mm // y-axis: related to max. Cutting length 3000 mm
- - Cnc controller: beckhoff, with 18. 5" monitor
- - Servo drive: beckhoff
- - Rack and pinion drive: wittenstein
- - Max cutting width: 1500 mm // max cutting length: 3000 mm
- - Drive (x, y axis): servo motor, rack, and pinion // drive (z axis): ball screw
- - Vector speed: 135 m/sec (2060s)
- - Axial acceleration: 1. 5 g (15 m/s²) (2060s)
- - Programmable feed speed (max): 50 m/sec
- - Absolute positioning accuracy: ± 0. 03 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
