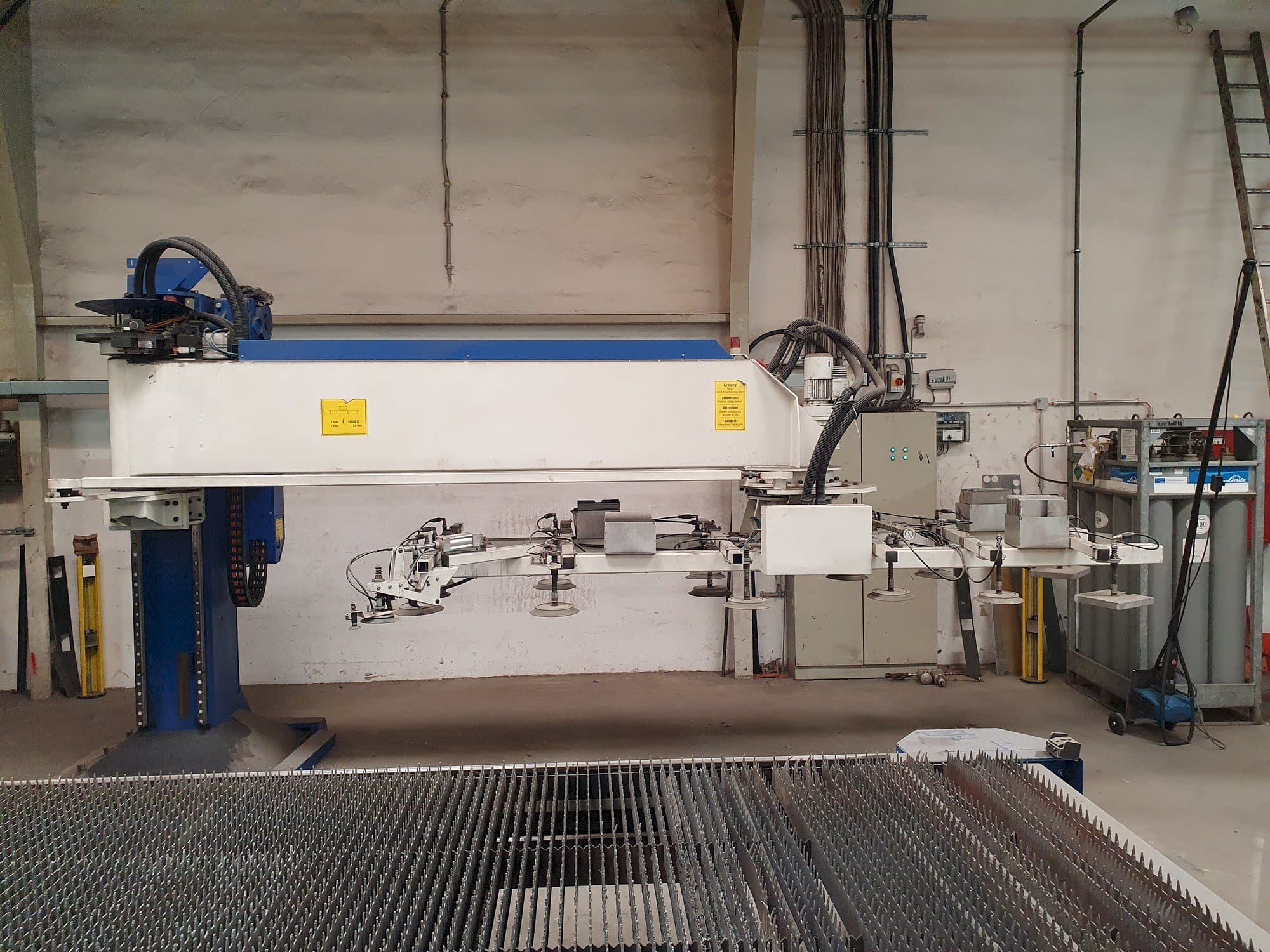

Front view of Trumpf TRUMATIC L 4050 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TRUMATIC L 4050

Photo Gallery

TRUMPF - TRUMATIC L 4050DE-LAS-TRU-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf TRUMATIC L 4050 Laser Cutting Machine

Show in original language

This Trumpf TRUMATIC L 4050 Laser Cutting Machine was made in the year 2004 in Switzerland. It has 73521 hours of beam, of which 31372 are laser hours. It is equipped with a control unit of the same brand. It works with a CO2 laser power 5 kW. This machine can work with a max thickness 25 mm.

Overview

brand: TRUMPF
year: 2004
MODEL: TRUMATIC L 4050
production hours: 73521
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - TRUMPF TRUMATIC L 4050

General Data

Measurements width: 5400 mm
Measurements depth: 13000 mm
Measurements height: 2400 mm
Machine weight: 14000 kg

Main drive

Laserpower: 5 kW

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece weight: 1800 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 25 mm
Aluminum: 15 mm

Media

Main electronic connection: 400V/50Hz
Power consumption: 105 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Co2 supply: 20 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Trumatic L4050 (2004).pdf
