➤ Used Trumpf Trumatic L 3050 Laser Cutting Machine

Show in original language

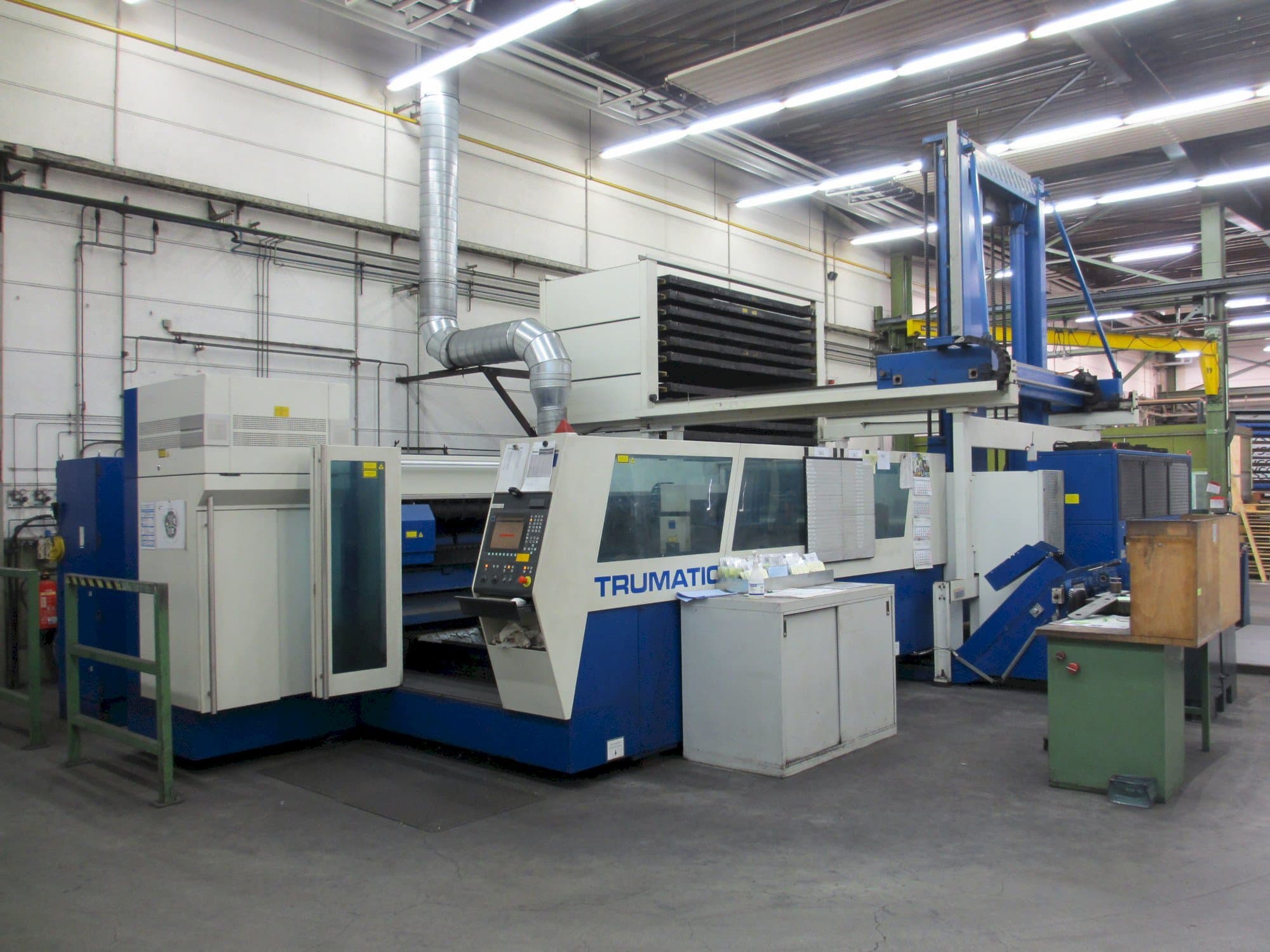

This Trumpf Trumatic L 3050 + Pallet Master Laser cutting machine was made in 2005 in Switzerland and has 124394 production hours, of which 72392 are cutting hours. It is controlled by a Siemens Sinumerik 840D control unit. The machine has a laser power of 5,0 kW.

Overview

brand: TRUMPF
year: 2005
MODEL: Trumatic L 3050 + Pallet Master
production hours: 124394
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L 3050 + Pallet Master

General Data

Measurements width: 3000 mm
Measurements depth: 1500 mm
Measurements height: 115 mm

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Laserpower: 5,0 kW

Additional Equipment

- Pallet Master

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Closed machine frame with integrated laser unit.
- - Co2 laser
- - Automatic pallet changer for auxiliary pallet operation
- - Longitudinal conveyor belt for small parts / waste
- - Drives: gantry drive in combination with linear direct drives
- - Laser cutting head with 5" lens
- - Cutting head quick change device
- - Position laser diode
- - Pms plasma sensor system
- - Pcs process control system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
