Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
TRUMPF - TruLaser Tube 5000FI-LAS-TRU-2007-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Trumpf TruLaser Tube 5000

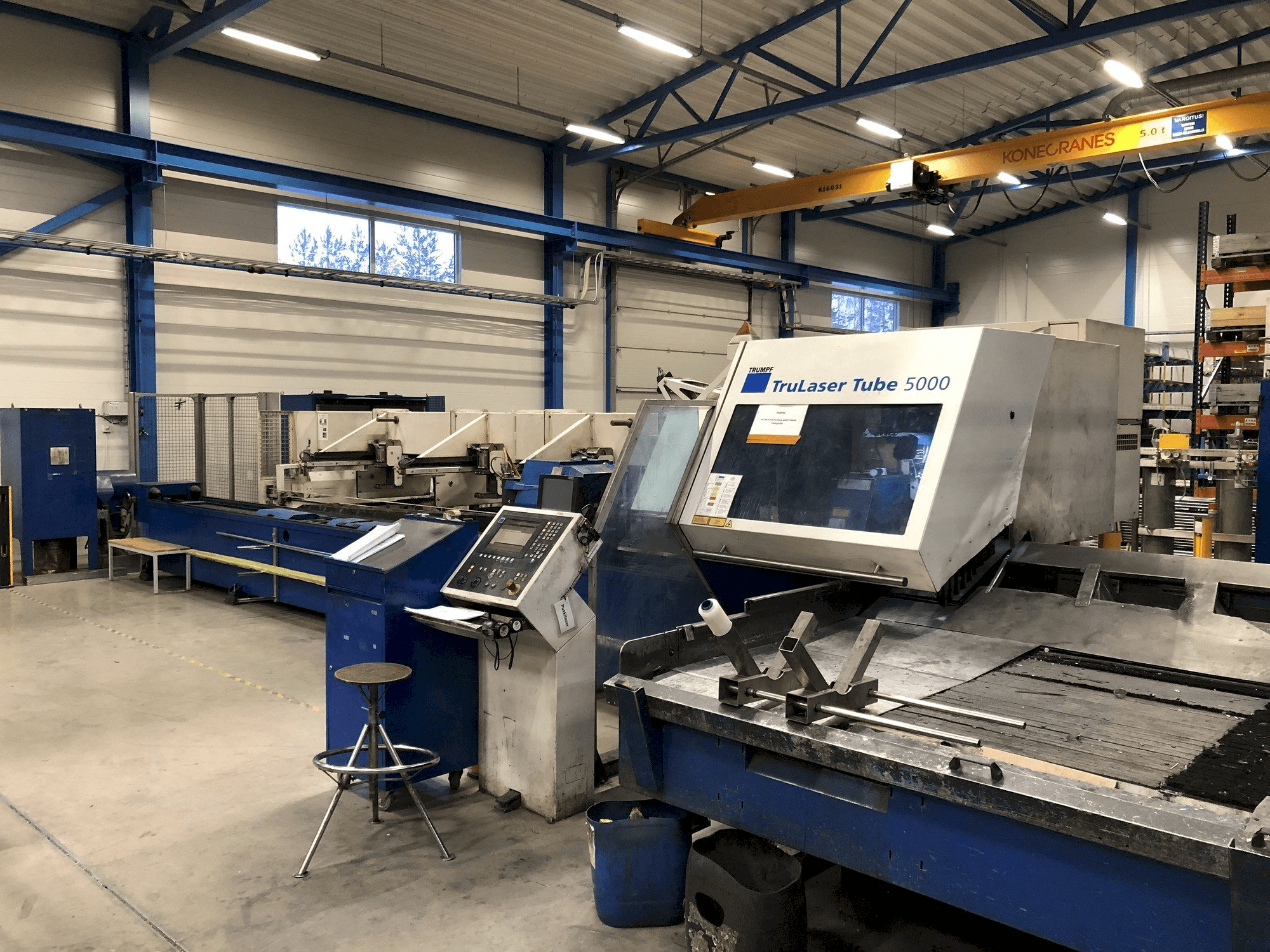

This Trumpf TruLaser Tube 5000 Laser Cutting Machine was built in Germany in the year 2007. It has been working for 57500 hours. It is equipped with a TRUMPF Sinumerik 840D control unit. This machine can work with a laser power of 3.2 kW. It comes with a brand new spare input spindle to provide accuracy of a new tule laser machine. This machine presents its complete documentation and service history.
Overview
- brand: TRUMPF
- year: 2007
- MODEL: TruLaser Tube 5000
- production hours: 57500
- application type: Cutting
- Location: Finland
- machine type: Tube Cutting Machine
- availability: Sold
- control unit brand: TRUMPF
Technical Information - TRUMPF TruLaser Tube 5000
General Data
- Measurements width: 18725 mm
- Measurements depth: 6635 mm
- Measurements height: 2500 mm
- Machine weight: 17500 kg
Control Unit
- Model: Sinumerik 840D
- Brand: TRUMPF
Main drive
- Laserpower: 3.2 KW
- Laser type: CO2
- Laser brand: TLF 3200
Workpiece
- Workpiece drm: 20 - 150 MM
- Workpiece x: 6000 MM
- Workpiece weight: 120 KG
Machine specific data
- Last performed resonator maintenance: 05-12-20
Media
- Main electronic connection: 400 V
- Power consumption: 72 KVA
Additional Equipment
- - New spare part round unit/spindle
- - 6 m output table
- - Loading unit
Additional Information
- Technical Machine Benefits:
- - Pipe capacity: round ø 20 - 150 mm, square 20x20 mm - 150 x 150 mm
- - Comes with brand new spare input spindle to provide accuracy of a new tule laser machine.
- - Perfectly serviced pipe laser with loader.
- Qualitative Machine Benefits:
- - Machine in perfect condition
- - Serviced by trumpf
- - Complete documentation and service history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
