➤ Trumpf Trumatic L3030 | Laser Cutting Machine For Sale

Show in original language

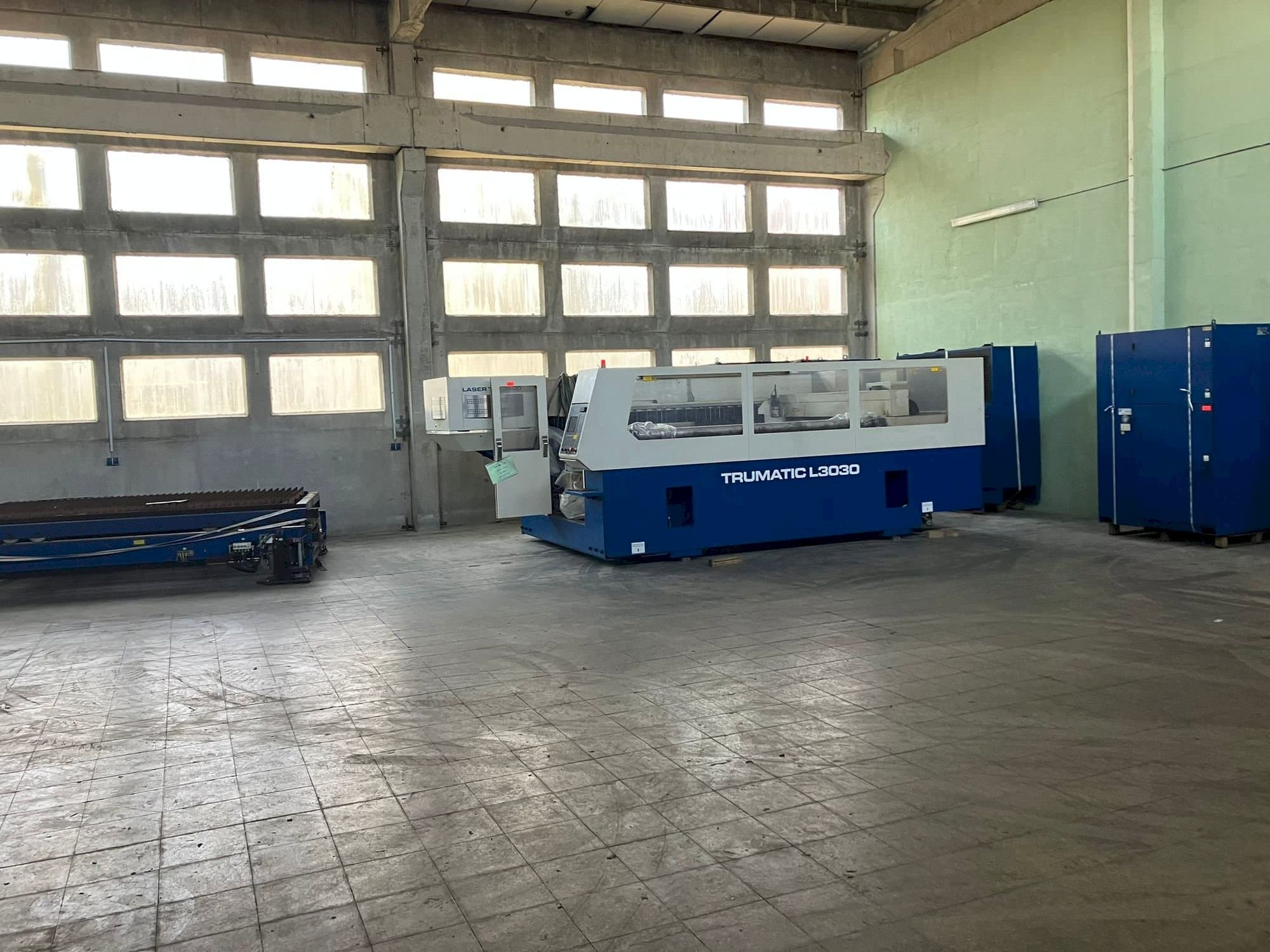

This Trumpf Trumatic L3030 laser cutting machine was manufactured in the year 2002 and has 31787 hours, of which 14813 are laser beam emission time. It is equipped with a Siemens Sinumerik 840D control unit. The machine has a laser power of 3,2 kW.

Overview

brand: TRUMPF
year: 2002
MODEL: Trumatic L3030
production hours: 31787
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3030

General Data

Measurements width: 9800 mm
Measurements depth: 5300 mm
Measurements height: 2000 mm
Machine weight: 19000 kg

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Laserpower: 3,2 kw
Laser type: CO2

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 10 mm

Media

Main electronic connection: 400 V; 50 Hz
Power consumption: 73 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed speeds in thex/y/z axis: 3104/1580/122 mm
- - Positioning speed parallel to the axis: 60 m/min
- - With simultaneous operation of the drives of the x and y axes: 85 m/min
- - Shaft length: 10,6
- - Compressed air supply: 6 bar
- - Nitrogen supply n2: 30 bar
- - Oxygen port 02: 20 bar
- - Pallet changing system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
