TRUMPF - TruLaser 3040 5kW CO2DE-LAS-TRU-2019-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- TRUMPF TruLaser 3040 5kW CO2 Laser cutting machine

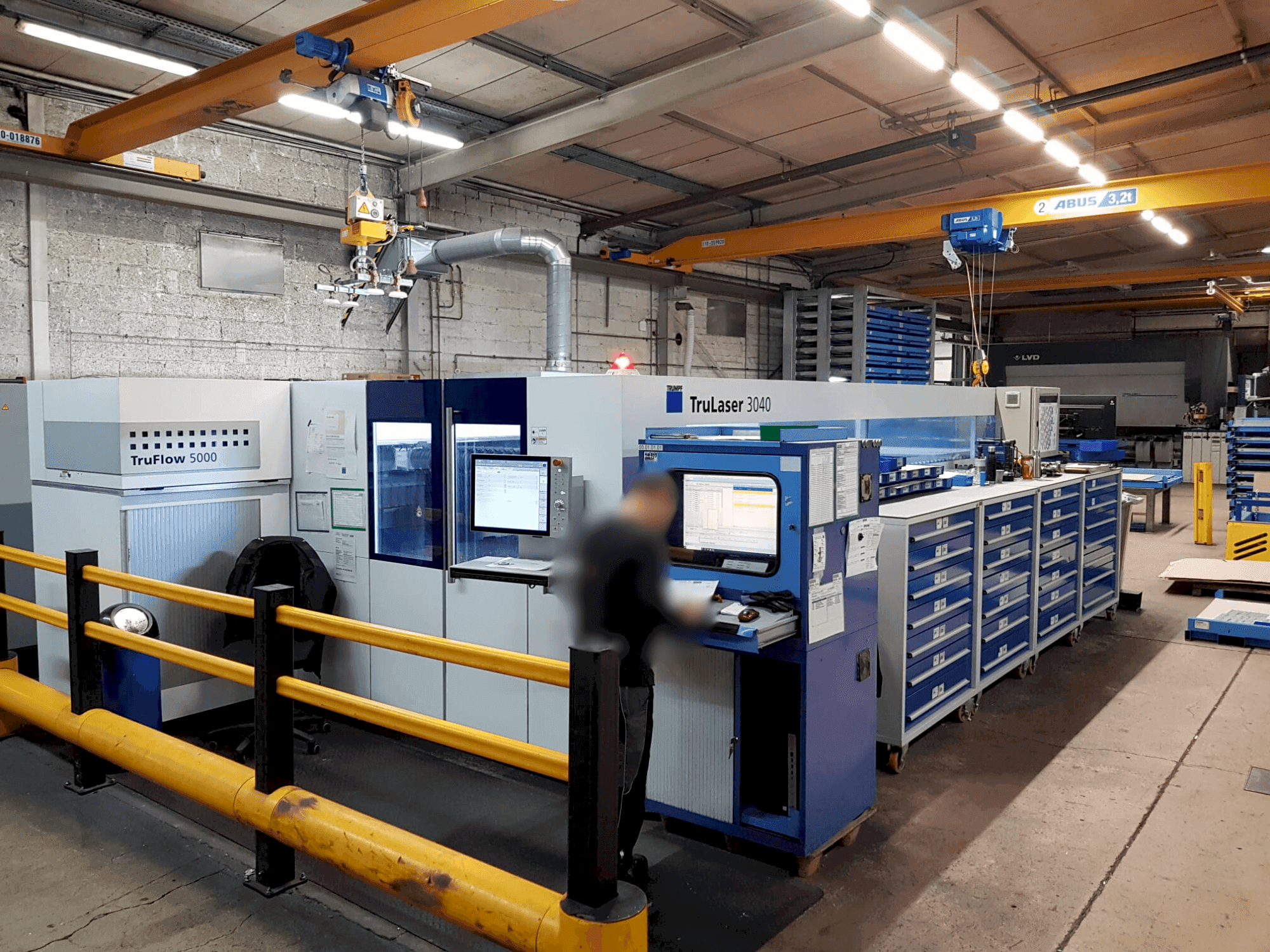

This TRUMPF TruLaser 3040 5kW CO2 Laser cutting machine was manufactured in 2019 in Germany. It is equipped with a 5kW CO2 laser and can process a max. sheet size of 4000 x 2000 mm. In total it has 8,116 cutting hours.
Overview
- brand: TRUMPF
- year: 2019
- MODEL: TruLaser 3040 5kW CO2
- production hours: 8116
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - TRUMPF TruLaser 3040 5kW CO2
Control Unit
- Model: SINUMERIK 840D SL
- Brand: SIEMENS
Main drive
- Laserpower: 5 KW
- Laser type: CO2
Machine specific data
- Laser Cutting Head: Lens cutting head with 250mm focal length
Additional Equipment
- - TruFlow 5000 with optimized standby
- - Nozzle changer
- - Beam adjustment
- - Smart Collision Prevention
- - BrightLine // DetectLine
- - Integrated camera 1 for process monitoring
- - Drop & Cut
- - Mobile Control App
- - CoolLine
- - Crosswise conveyor + container
Additional Information
- Technical Machine Benefits:
- - Resonator: 5. 0kw co2
- - Max sheet size: 4000x2000mm
- - Maintenance-free radial turbine blower // radio-frequency excitation
- - Laser power control // logbook function laser
- - Lens cutting head with 250mm focal length
- - Universal quickchange device for cutting head (uti)
- - Lensline with status check
- - Controlline: automatic height control and sheet edge detection
- - Lens with rfid chip
- - USB - interface // RJ45 network connection // Wireless Operation Point (base for Visual Online Support) // CE label // Light barriers // Multi chamber exhaust system // Compact dust extractor // Machine enclosure with Macrolon panels
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
