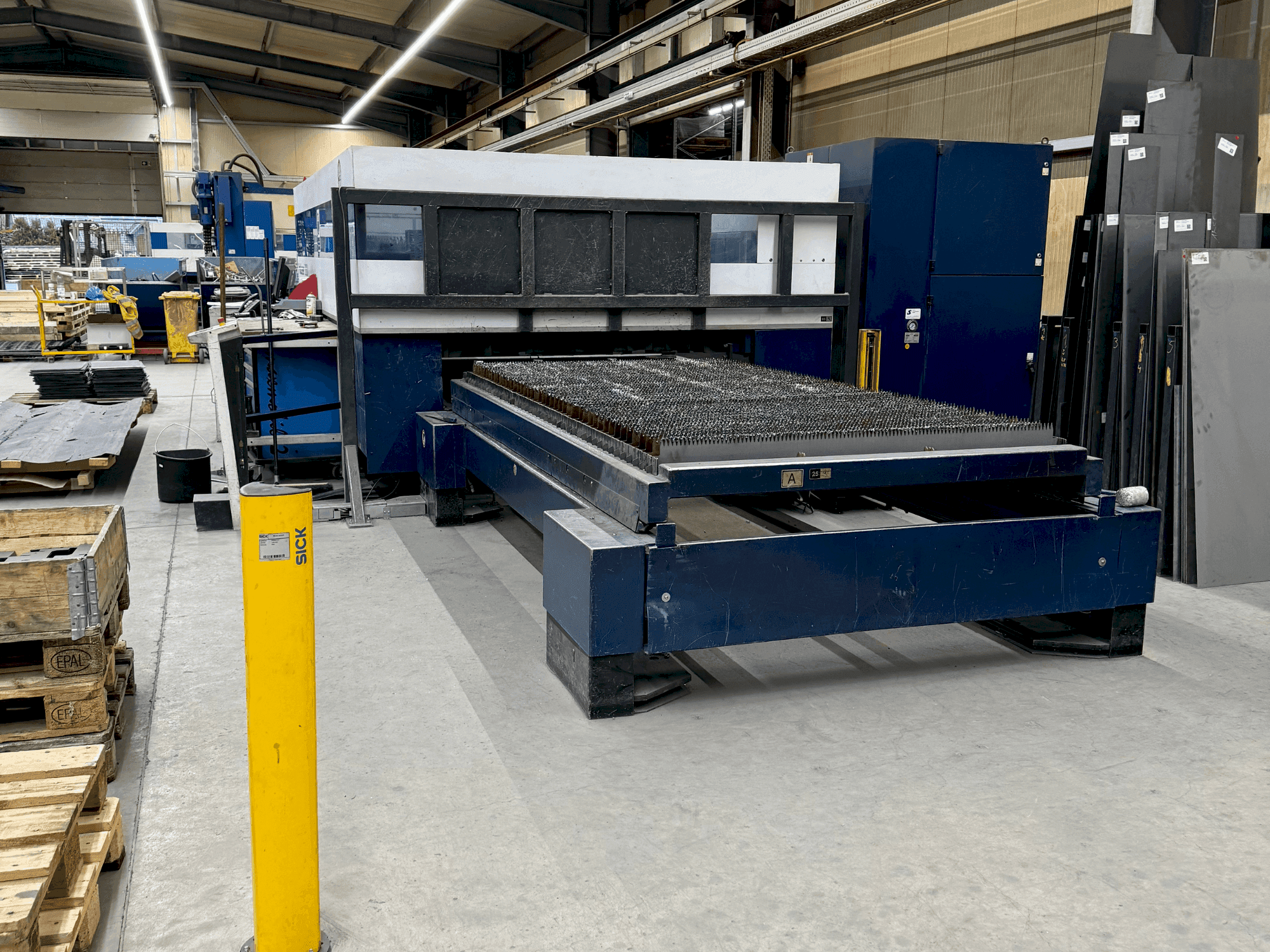

Front view of TRUMPF TruLaser 3030 4kW (L20) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruLaser 3030 4kW (L20)

Photo Gallery

TRUMPF - TruLaser 3030 4kW (L20)DE-CUT-TRU-2012-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TruLaser 3030 4kW (L20) | CO2 Laser Cutter

Show in original language

This TRUMPF TruLaser 3030 4kW (L20) was manufactured in 2012. A robust CO2 laser cutting machine, it handles sheet sizes up to 3000mm x 1500mm and cuts mild steel up to 25mm thick. If you are looking to get high quality cutting capabilities consider the TRUMPF TruLaser 3030 machine we have for sale. Contact us for more information.

Overview

brand: TRUMPF
year: 2012
MODEL: TruLaser 3030 4kW (L20)
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine

Technical Information - TRUMPF TruLaser 3030 4kW (L20)

Additional Equipment

- Single cutting head strategy / Cooling unit / automatic pallet changer in longitudinal direction / wide longitudinal conveyor belt / torque drive in combination with linear direct drives / PierceLine / FocusLine / NitroLine / PlasmaLine / Position laser diode / spraying device
- Laser: TruFlow 3200 CO2 laser / gas mixer (integrated)/ laser control TASC/ laser power control / logbook function
- cutting head: lens cutting head 250mm lens / Universal quick-change device / LensLIne / controlLine: Height control and sheet metal outer edge detection
- Control system: Sinumerik 940D SL / ContourLine / FlyLine / FastLine / AdjustLine / Microweld

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Sheet size: 3000mm x 1500mm
- - Mild steel max thickness: 25mm
- - Resonator hd-pump 1 operating hours: approx. 67000 hours
- - Beam on / hd-pump 2 operating hours: approx. 41500 hours

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
