Trotec - SP500DE-LAS-TRO-2020-00002

Name: Trotec SP500
Brand: Trotec
SKU: DE-LAS-TRO-2020-00002
Price: 56000 EUR
Availability: InStock

56,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trotec SP500 - Laser Cutter For sale | gindumac.com

Show in original language

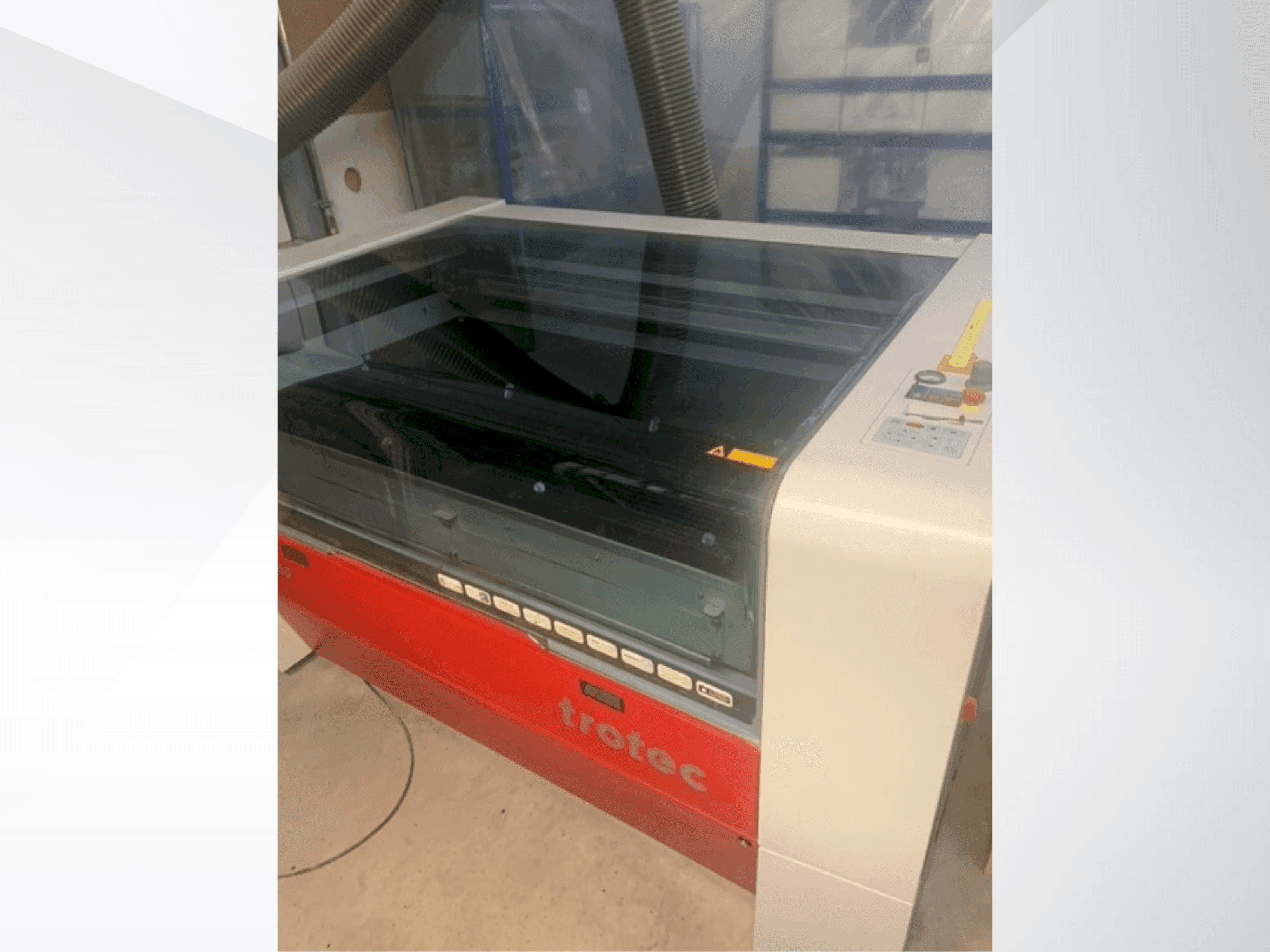

This laser cutting machine was manufactured in 2020. Equipped with a sealed-off CO2 laser of 200 watts and water cooling, it ensures precise and efficient cutting. The processing area is 1245 x 710 mm, supporting a maximum workpiece weight of 25 kg. Features include JobControl® Expert software and USB connectivity. Ideal for detailed work, the Trotec SP500 machine we have for sale represents a significant opportunity. For more information about this laser cutting machine, please reach out to us.

Overview

brand: Trotec
year: 2020
MODEL: SP500
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine

Technical Information - Trotec SP500

General Data

Measurements width: 840 MM
Measurements depth: 1130 MM
Measurements height: 1380 MM
Machine weight: 254 KG

Main drive

Laserpower: 200 watts KW
Laser type: Sealed-off CO2 laser

Workpiece

Workpiece weight: 25 kg

Additional Equipment

- Round engraving device
- Suction system
- Kaeser iComp 8 Tower T compressor (YOM 2022).

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Processing area: 1245 x 710 mm
- - Loading area: 1420 x 820 mm
- - Max. Processing speed: 2. 54 m/s
- - Acceleration: 19 m/s²
- - Motor: brushless dc servo motors repeatability: < ±30 µm across the entire processing area
- - Addressable accuracy: 4. 6 µm
- - Software: jobcontrol® expert
- - Interface: usb connection to pc
- - Control elements: machine keyboard, key switch, emergency stop
- - Kaeser icomp 8 tower t compressor: volume flow at 6 bar, 2100 rpm - 404 l/min; volume flow at 11 bar, 1800 rpm- 291 l/min; max. Overpressure- 11; speed range min/max- 1000-2100 rpm; nominal power drive motor- 3. 1kw; electrical supply - 380-480 v / 50-60 hz; dimensions - 840 x 1130 x 1380; mass - 254kg
Qualitative Machine Benefits:
- - High repeatability and addressable accuracy for consistent, high-quality cutting.

Extra information

- Machine still under power // Operating hours max. 2000 // Used the machine to engrave wood and glass. We also cut wood.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
