TORNOS Delta 20/5

Photo Gallery

TORNOS - Delta 20/5TR-TUR-TOR-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

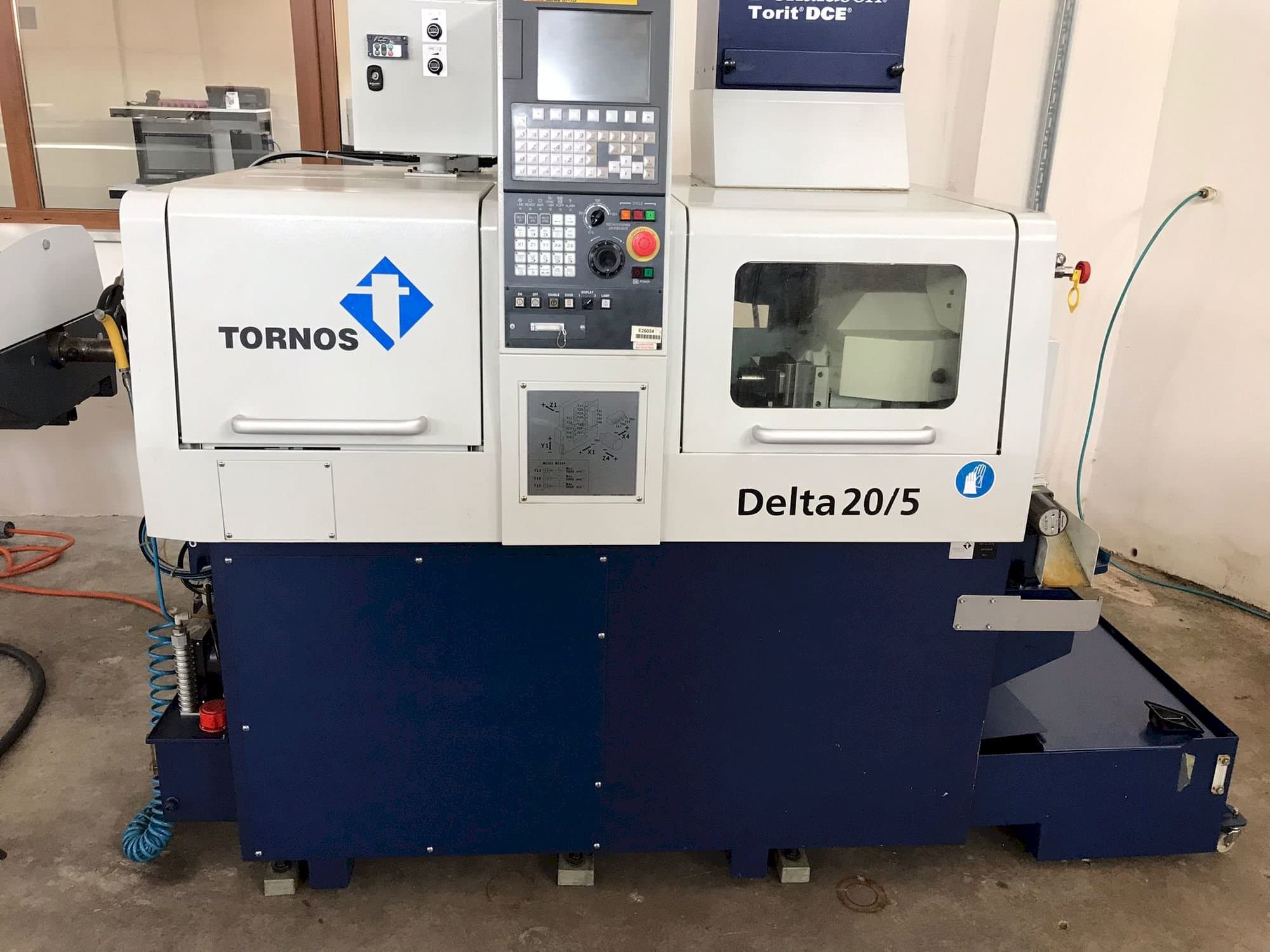

Tornos Delta 20/5 Lathe

Show in original language

This Tornos Delta 20/5 Lathe was manufactured in the year 2012. It has been working for 490 hour. It is equipped with a Fanuc Series Fanuc Oi TD control unit. This machine can work with a main spindle speed up to 10000 rpm, and a sub spindle speed up to 12000 rpm.

Overview

brand: TORNOS
year: 2012
MODEL: Delta 20/5
production hours: 490
application type: Turning
Location: Turkey
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - TORNOS Delta 20/5

General Data

Measurements height: 1725 mm
Machine weight: 1950 kg

Control Unit

Model: Series Oi TD
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 3.7 kW
Number of axis: 5

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Qualitative Machine Benefits

Parts catcher
Parts conveying strip
Ejection of workpiece
Coolant tank
With high-pressure pump : 30 [bars]
With fire extinguisher and oil mist

Technical Machine Benefits

Main spindle: max bar diameter 20 mm, maximum machining length 170 mm, c axis indexing precision : 0. 001°
Counter-spindle: max bar diameter 20 mm, z stroke, spindle speeds : 12000 rpm, spindle power : 2. 2 kw, c axis indexing precision : 1°
Number of guide bush holders : 1 guide bush holder 1
Number of positions : 8
Number of motorized positions : 3
Live tools speed : 8000 [rpm] end attachment
Number of positions : 4 secondary operation
Number of positions : 7 power supply
3 colors status lamp
Rotating guide bush

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
