Takisawa TX20

Photo Gallery

Takisawa - TX20IT-TUR-TAK-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Takisawa TX20 Lathe

Show in original language

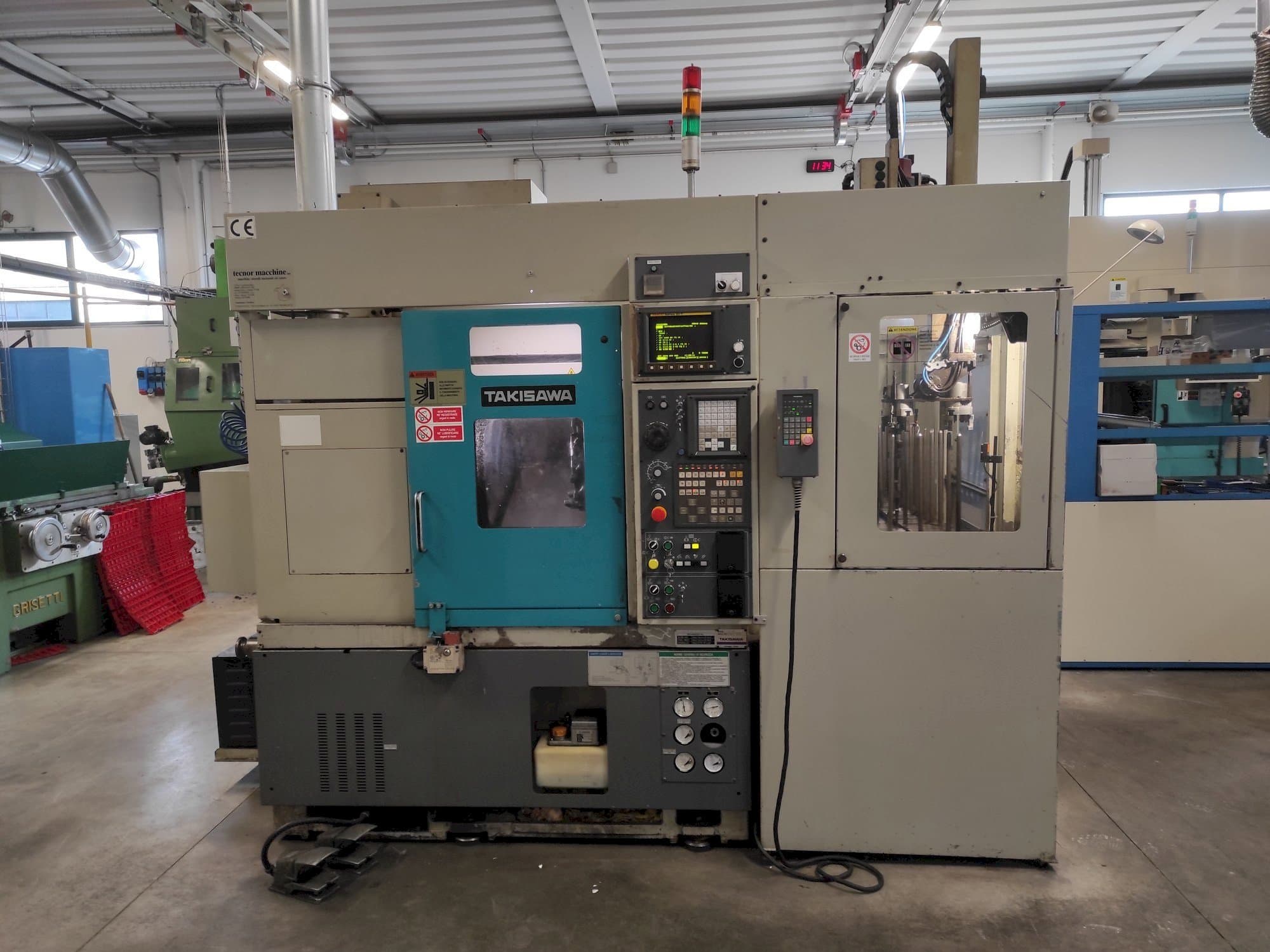

This Takisawa TX20 Lathe was manufactured in the year 2004 in Japan. The machine has a spindle speed of 6000 rpm.

Overview

brand: Takisawa
year: 2004
MODEL: TX20
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - Takisawa TX20

Main drive

Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 140 mm
Z-AXIS Movement: 320 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - A-1: maximum executable radius: 420 mm
- - Standard turning diameter: 225mm (t8) 170mm (t12)
- - Maximum turning diameter: 250 mm (t8) 220 mm (t12)
- - Maximum turning length 250 mm
- - Chuck tip type: jis a2-6
- - Spindle taper type: 75mm 1/20 taper
- - Spindle holder internal diameter: 100 mm
- - Thru chuck diameter: 63 mm
- - Tool trolley type: 12-station drum
- - Number of tools on the tool trolley: 12 pieces
Qualitative Machine Benefits:
- - Height of the orthogonal shank of the single drilling tool: 125 mm
- - Boring bar shank diameter: ø40mm
- - 12 tool turrent

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
