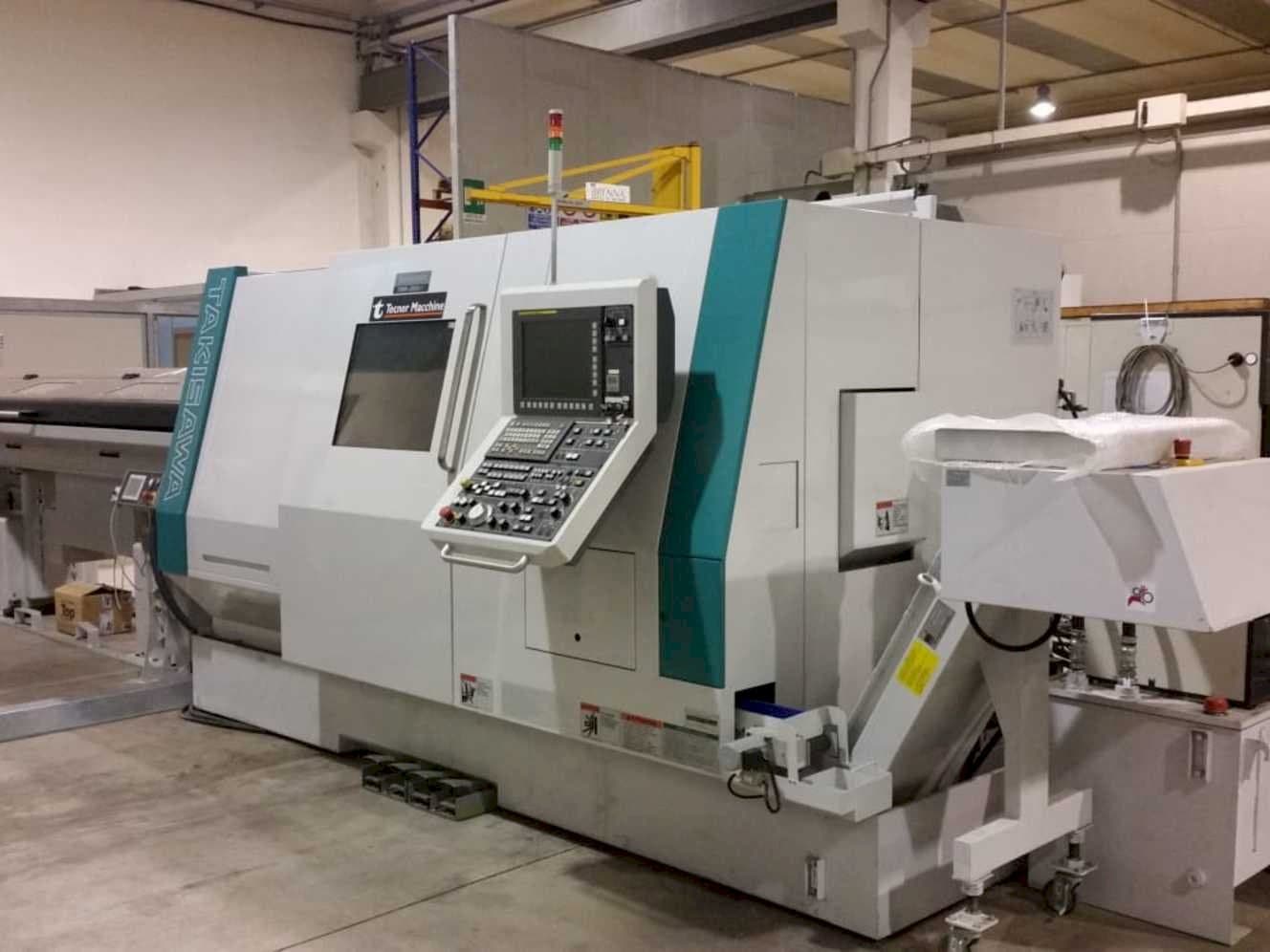

Front view of Takisawa TMMY-250 M1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Takisawa TMMY-250 M1

Photo Gallery

Takisawa - TMMY-250 M1IT-TUR-TAK-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Takisawa TMMY-250 M1

Show in original language

This Takisawa TMMY-250 M1 Lathe was built in the year 2015 in Japan. It has a total of 11285 working hours, of which 5762 are spindle hours. It is equipped with a FANUC Series 31i-MODEL B control unit. This 2 axis machine can work with a spindle speed up to 4000 rpm and a main spindle bar passage Ø 76.2 mm. A chip evacuator is included as accessory. This machine is in excellent conditions.

Overview

brand: Takisawa
year: 2015
MODEL: TMMY-250 M1
production hours: 11285
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Takisawa TMMY-250 M1

General Data

Measurements width: 2932 mm
Measurements depth: 4745 mm
Measurements height: 2250 mm
Machine weight: 8500 Kg

Control Unit

Model: Series 31i-MODEL B
Brand: FANUC

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 18.5 / 11 Kw
Number of axis: 2

Tools

Number of stations: 15

Media

Main electronic connection: 400 V 50 HZ
Power consumption: 63 KVA

Additional Information

Additional equipment

Chip evacuator

Machine Benefits

Qualitative Machine Benefits

Machine in excellent conditions

Technical Machine Benefits

Cnc lathe type bi-spindle
Max diameter workable Ø 350 mm
Max length workable 800/200 mm
Main spindle bar passage Ø 76. 2 mm
Counter spindle bar passage Ø 50. 8 mm
Counter spindle motor power 22/15 kw
Y axis upper turret +/- 50 mm
Rapid traverse speed (upper turret) x1: 24 / y: 12 / z1: 30 m/min
Rapid traverse speed (lower turret) x2: 24 / z2: 30 m/min
Bar loader top automations xfs 375

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
